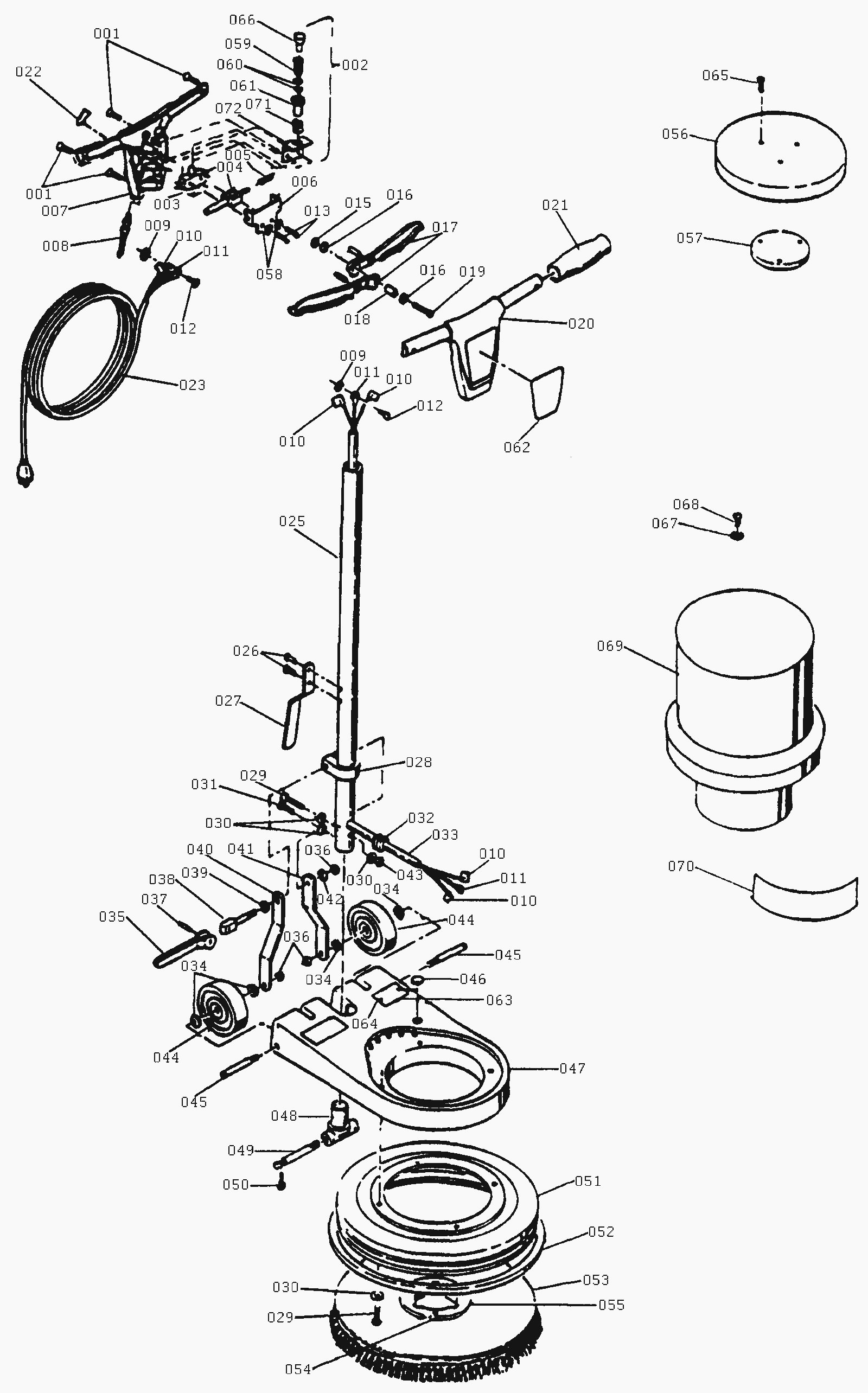

Metal Handle Assembly

#PartDescription ReqNotesAvailability
001 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 5
002 170-6003 Switch adapter kit 1
003 N/A Not available 1 Switch
004 170-1227 Interlock switch (OBSOLETE) 1
005 170-1228 Interlock spring (OBSOLETE) 1
006 170-1229 Bracket 1
007 170-4621 Switch housing cover (OBSOLETE) 1
009 999-0092 Washer #8 internal star lock zinc plated 2
010 170-3499 Terminal clip 6
011 170-6014 Terminal clip 3
012 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated 2
013 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
014 170-1232 Pin 3/16 x 1 inch (OBSOLETE) 2
015 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
016 999-0006 Washer 3/16 flat zinc plated 2
017 170-1233 Lever 2
018 170-1234 Spacer (OBSOLETE) 1
019 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 1
020 170-5944 Front half housing switch (OBSOLETE) 1
021 170-5514 Handle grip 2
022 170-5575 Button plug 1
023 170-3460 Power cord assembly (OBSOLETE) 1
025 154-9398 Handle tube 1
026 154-3960 5/32 inch rivet 2
027 373-3005 Hook cord 1
028 170-1239 Clamp 1
029 999-0354 Screw 5/16-18 x 2 round head slotted zinc plated 5
030 999-0028 Washer 5/16 split lock plain finish 7
031 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated 1
032 170-0470 Strain relief 1
033 170-4939 Handle cord assembly (OBSOLETE) 1
034 272-8202 Bowed washer 4
035 170-1267 Cam assembly with grip, bolt and locking lever 1
036 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 3
037 170-5525 Pin 1
038 170-1267 Cam assembly with grip, bolt and locking lever 1
039 170-5522 Wear washer 1
040 170-1243 Right hand arm link (OBSOLETE) 1
041 170-1244 Left hand arm link 1
042 999-0032 Washer 3/8 USS flat plain finish 1
043 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
044 170-1245 Wheel (OBSOLETE) 2
045 170-1246 Wheel shaft (OBSOLETE) 2
046 170-1247 Plug 1
047 170-4623 Main frame (OBSOLETE) 1
048 170-5568 Handle tongue (OBSOLETE) 1
049 170-5569 Shaft 1
050 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
051a N/A Not available 1 (Brush shield)
051b 170-1530 Brush shield (OBSOLETE) 1
051c N/A Not available 1 (Brush shield)
052a 170-2575 Bumper-16 inch frame 1
052b 170-6363 18 Inch frame bumper (OBSOLETE) 1
052c 170-5777 Electrical panel assembly (DISCONTINUED) 1
053a 996-0806 Polypropelene scrubbing brush 1
053b 996-0805 Polypropelene scrubbing brush 1
053c 996-0696 Polypropelene scrubbing brush 1
054 170-1258 Screw 12 x 1 flat head wood 3
055 170-0124 Locking plate 3 hole 1
056 170-4942 Drip cover 1
057 170-6364 Drip cover spacer (OBSOLETE) 1
058 999-0148 Washer #6 external star lock zinc plated 2
059 170-1264 Switch adapter spring 1
060 999-0985 Washer #4 SAE flat 3
061 170-1266 Switch adapter 1
062 170-4628 Switch housing label (OBSOLETE) 1
063 170-5541 Fire warning plate (OBSOLETE) 1
064 170-0775 1/8 inch rivet pop aluminum 2
065 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 3
066 170-1263 Nylon bushing 1
067 999-0311 Washer #10 external star lock zinc plated 1
068 999-0068 Screw 10-32 x 1/4 round head slotted zinc plated 1
069 N/A Not available 1 Motor and gearbox
070a 170-0497 Clarke decal 1
070b 170-1267 Cam assembly with grip, bolt and locking lever Includes items 35, 37, and 38
071 170-1269 Adaptor return spring 1
072 170-1270 Spring support bracket 1
