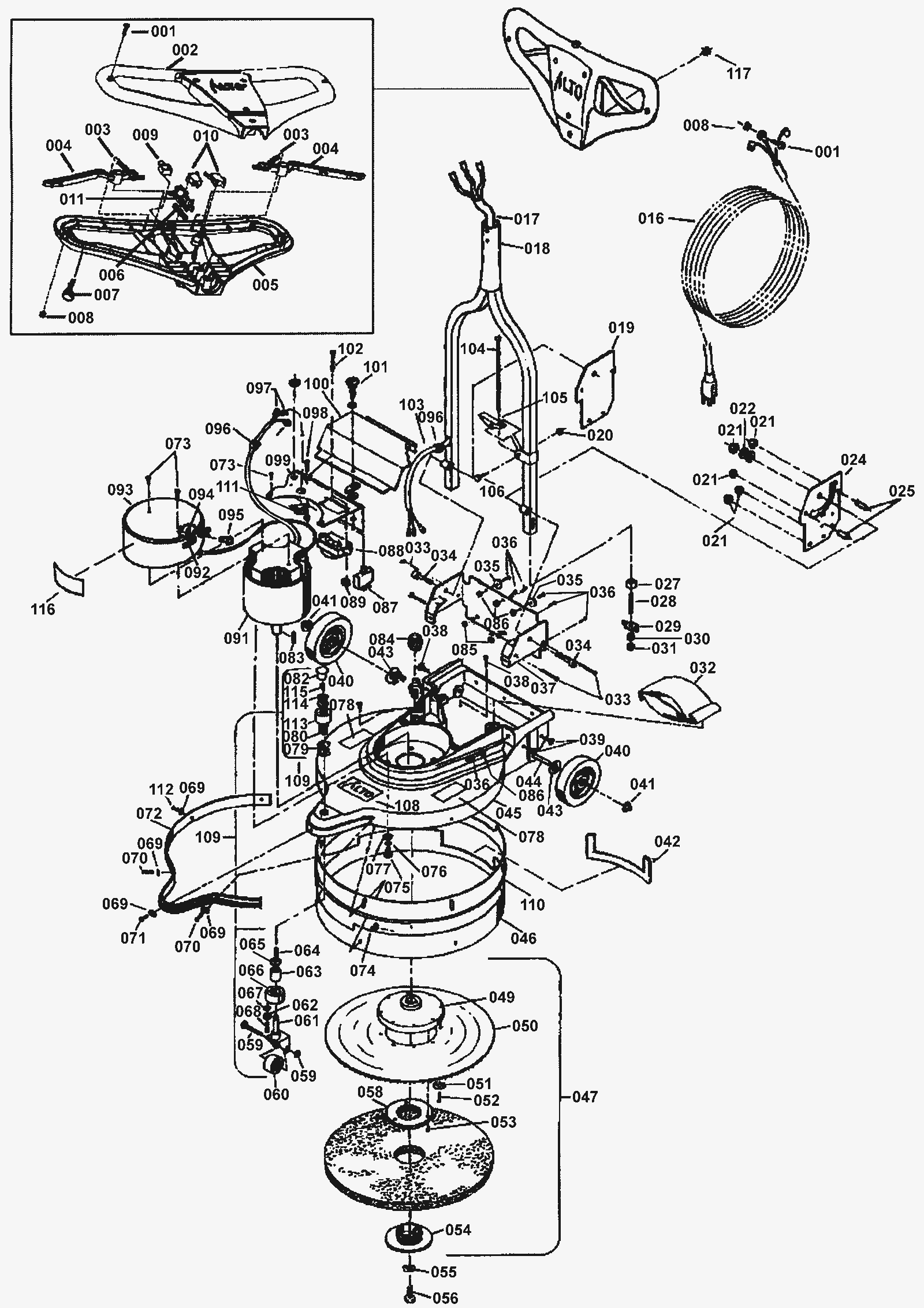

Main Assembly

#PartDescription ReqNotesAvailability
001 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 7
002 270-0709 Front handle 1
003 170-5817 Extension spring 2
004 170-5815 Switch lever 2
005 170-1514 Rear handle 1
006 170-5820 Compression spring 1
007 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 2
008 999-0460 Nut 10-32 hex 7
009 170-5816 Interlock button 1
010 170-5571 Switch 1
011 170-5819 Main interlock 1
016 170-9020 Power cord 75 ft superflex (OBSOLETE) 1
017 170-1515 Interconnect cord 1
018 170-9988 Handle with clamp (OBSOLETE) 1
019 170-9989 Handle RS support (OBSOLETE) 1
020 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
021 170-0465 Nut 1/4-20 ESNA heavy jam 10
022 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
024 170-6390 Inside support 1
025 170-9992 Support spacer (OBSOLETE) 4
027 170-2019 Spring cup (OBSOLETE) 1
028 170-2020 Handle lock spring (OBSOLETE) 1
029 170-2021 Handle lock pin 1
030 170-2022 Handle spring bushing 1
031 999-0609 Nut 1/4-20 hex stainless steel 1
032 170-9996 Dust bag (OBSOLETE) 6
033 999-0023 Screw 1/4-20 x 1 3/4 socket cap zinc 4
034 170-6398 Shoulder bolt 5/16 x 1 1/2 2
035 170-1290 Bumper 2
036 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 8
037 170-9994 Handle/dust bag frame (OBSOLETE) 1
038 999-0079 Screw 10-32 x 7/8 round head slotted zinc plated 1
039 170-9997 Screw 1/4 -20 x 1 standard head 4
040 170-3303 Rear wheel (OBSOLETE) 2
041 170-6076 Pal nut 2
042 170-2000 Gasket (OBSOLETE) 1
043 272-8202 Bowed washer 2
044 N/A Not available 1 (Axle)
045 170-9999 Main frame (OBSOLETE) 1
046 170-2200 Skirt guide assembly 1
047 170-2201 20 inch pad driver 1 (includes 049-054 and 58)
049 170-9021 Pad driver riser 1
050 170-3270 Facing retainer 1
051 999-1138 Washer #10 finishing stainless steel 8
052 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B 8
053 170-9022 Screw (OBSOLETE) 3
054 991-2203 Big mouth pad holder male thread portion 1
055 170-2205 Pad driver retainer (OBSOLETE) 1
056 170-1599 Screw 5/16-18 x 3/4 socket head nylock 1
058a 991-2202 Big mouth pad holder set (blue) 1
058b 991-2201 Center-Lok II pad holder - right hand thread (black) 1 (NON-OEM)
058c 991-2205 Deep lock ring and pad grip ring 1 (NON-OEM)
058d 991-2214 Center-Lok II pad holder - left hand thread (red) 1 (NON-OEM)
059 170-2207 Axle kit 1
060 170-3310 Front wheel 1
061 170-9023 Yoke (OBSOLETE) 1
062 170-6626 Nut 6 x 32 3
063 170-2194 Bottom bushing (OBSOLETE) 1
064 170-2196 Spring (OBSOLETE) 1
065 170-2195 Bearing (OBSOLETE) 1
066 170-2192 Aluminum caster bushing (OBSOLETE) 1
067 170-9990 Washer #6 interlocking star 2
068 999-0365 Screw 6-32 x 5/8 pan head phillips zinc plated 1
069 170-3508 Bumper strip retainer 7
070 170-6340 Screw 6-32 x 1/2 flat head 2
071 999-1191 Screw 10-24 x 5/8 round head slotted stainless steel 1
072 170-2227 Bumper (OBSOLETE) 1
073 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 4
074 170-2197 Threaded insert 6
075 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 4
076 999-0659 Washer 3/8 medium split lock stainless steel 4
077 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
078 170-5655 Clarke decal (OBSOLETE) 2
079 170-2229 Spring (OBSOLETE) 1
082 170-2232 Plug cap (OBSOLETE) 1
083 170-1679 Square keyway 1
084 170-0292 Strain relief 1
085 999-0460 Nut 10-32 hex
086 999-0006 Washer 3/16 flat zinc plated 3
087 170-2225 20 amp circuit breaker 1
088 170-2234 120V meter 1
089 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 4
091 170-6404 Motor 115 volt - 1500 1
092 170-2238 Brush light label (OBSOLETE) 1
093 170-2239 Motor cover (OBSOLETE) 1
094 170-1549 Clip (OBSOLETE) 1
095 170-1548 Light 1
096 170-5583 Strain relief 2
097 170-6013 1/4 terminal 2
098 999-0463 Screw 6-32 x 3/8 pan head slotted zinc plated 2
099 170-2241 Electrical cover (OBSOLETE) 1
100 170-2242 Filter cover (OBSOLETE) 1
101 170-2243 Latch cover (OBSOLETE) 1
102 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated 2
103 170-1539 Interconnect cord 1
104 999-9316 Bolt 1/4-20 x 8 carriage head zinc 1
105 170-2017 Handle release lever 1 (Does not include clamp. For clamp you need to order a new handle, part numb er 170-9988.)
106 170-2023 Bolt 1/4 x 1 1/4 shoulder 1
108 170-0484 Alto label (OBSOLETE) 1
109 170-2228 Caster assembly (OBSOLETE) 1
110 170-2100 Skirt (OBSOLETE) 1
111 170-2240 Meter transformer 1
112 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 4
113 999-0843 Washer 5/8 flat nylon 1
114 999-0006 Washer 3/16 flat zinc plated 1
115 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 1
116 170-9984 Ultra speed burnisher 1500 label (OBSOLETE) 1
117 170-2413 Nut lock 1
N/S 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated 2
N/S 999-0092 Washer #8 internal star lock zinc plated 2
