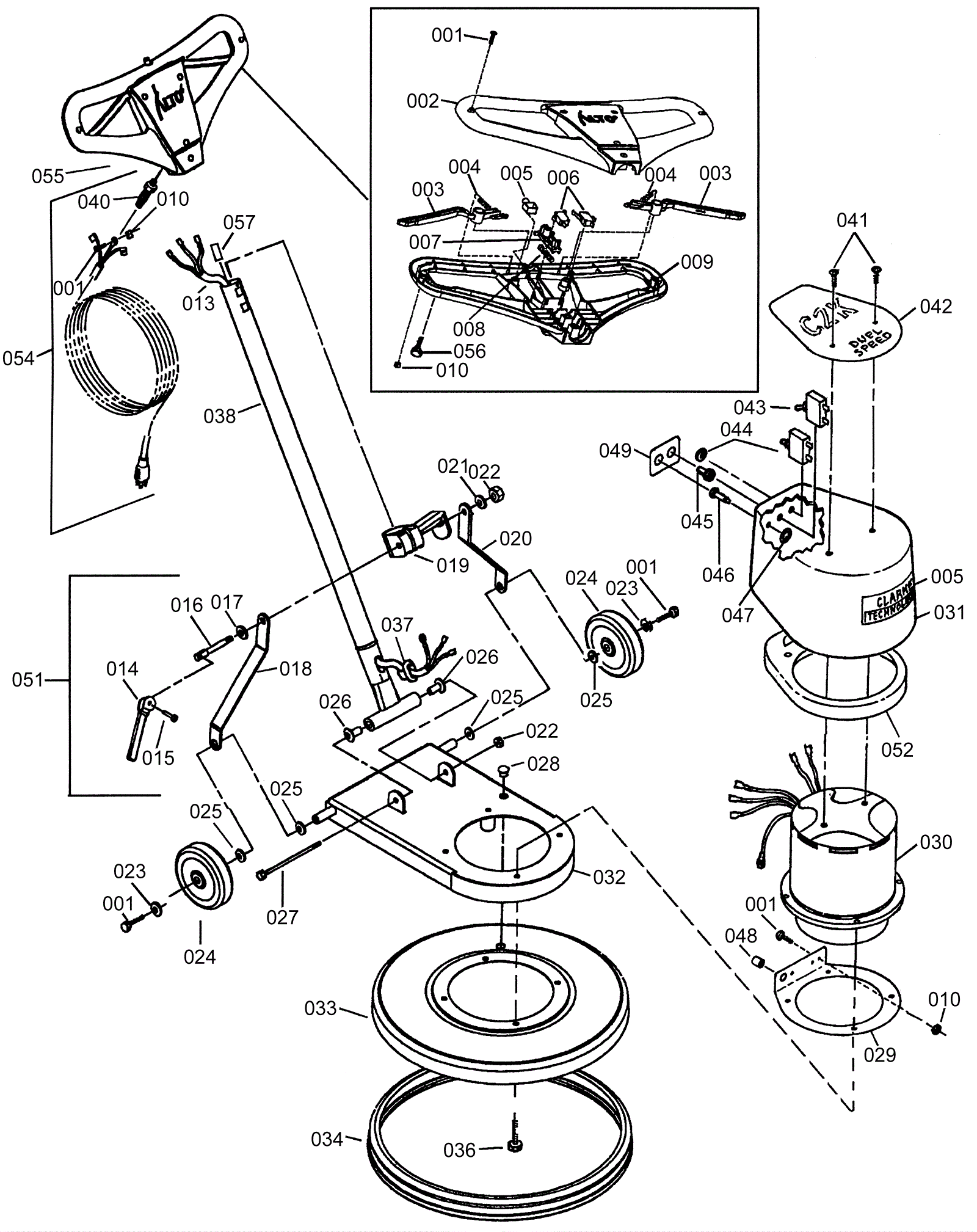

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0414
|
Screw 10-32 x 3/4 pan head slotted zinc plated |
8 |
|
|
002 |
270-0709
|
Front handle |
1 |
|
|
003 |
170-5815
|
Switch lever |
2 |
|
|
004 |
170-5817
|
Extension spring |
2 |
|
|
005 |
170-5816
|
Interlock button |
1 |
|
|
006 |
170-5571
|
Switch |
2 |
|
|
007 |
170-5819
|
Main interlock |
1 |
|
|
008 |
170-5820
|
Compression spring |
1 |
|
|
009 |
170-1514
|
Rear handle |
1 |
|
|
010 |
999-0460
|
Nut 10-32 hex |
8 |
|
|
013 |
170-1539
|
Interconnect cord |
1 |
|
|
014 |
170-1267
|
Cam assembly with grip, bolt and locking lever |
1 |
Included in 51 |
|
015 |
170-5525
|
Pin |
1 |
Included in 51 |
|
016 |
170-1267
|
Cam assembly with grip, bolt and locking lever |
1 |
Included in 51 |
|
017 |
170-5522
|
Wear washer |
1 |
|
|
018 |
170-1516
|
Right arm linkage |
1 |
|
|
019 |
170-1517
|
Handle clamp |
1 |
|
|
020 |
170-1518
|
Left arm linkage |
1 |
|
|
021 |
999-0032
|
Washer 3/8 USS flat plain finish |
1 |
|
|
022 |
999-0170
|
Nut 3/8-16 hex plain finish |
2 |
|
|
023 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
024 |
170-1519
|
5 inch wheel |
2 |
|
|
025 |
999-0816
|
Washer 5/8 medium split lock |
4 |
|
|
026 |
170-1520
|
Nylon bushing |
2 |
|
|
027 |
170-1521
|
Screw 3/8-16 x 6 |
1 |
|
|
028 |
170-1247
|
Plug |
1 |
|
|
029 |
170-1540
|
Bracket (OBSOLETE) |
1 |
|
|
030a |
170-1541
|
Motor (OBSOLETE) |
1 |
|
|
030b |
170-1542
|
Gearbox (OBSOLETE) |
1 |
|
|
031 |
170-1543
|
Motor cover |
1 |
|
|
032 |
170-1528
|
Main frame |
1 |
|
|
033a |
N/A
|
Not available |
1 |
(Brush shield) (1600) |
|
033b |
N/A
|
Not available |
1 |
2000 (Brush shield) |
|
034a |
170-1532
|
Bumper |
1 |
1600 |
|
034b |
170-5814
|
Bumper for 20 inch units |
1 |
2000 |
|
036 |
999-0354
|
Screw 5/16-18 x 2 round head slotted zinc plated |
4 |
|
|
037 |
170-1534
|
Strain relief |
1 |
|
|
038 |
170-1535
|
Handle tube |
1 |
|
|
040 |
170-1536
|
Strain relief |
1 |
Included with 54 |
|
041 |
170-1544
|
Screw |
2 |
|
|
042 |
170-1545
|
Dual speed decal (OBSOLETE) |
1 |
|
|
043 |
170-1546
|
Switch SPDT |
1 |
|
|
044a |
170-0531
|
15amp circuit breaker |
1 |
|
|
044b |
991-8539
|
15amp circuit breaker |
1 |
(NON-OEM) |
|
045 |
170-1547
|
Boot |
1 |
|
|
046 |
170-1548
|
Light |
1 |
|
|
047 |
170-1549
|
Clip (OBSOLETE) |
1 |
|
|
048 |
170-1284
|
Strain relief |
1 |
|
|
049 |
170-1550
|
High/low decal |
1 |
High-Low |
|
050 |
170-5655
|
Clarke decal (OBSOLETE) |
1 |
|
|
051 |
170-1267
|
Cam assembly with grip, bolt and locking lever |
1 |
Includes 14, 15, & 16 |
|
052 |
170-1551
|
Baffle (OBSOLETE) |
1 |
|
|
054 |
170-1537
|
14/3 power cord assembly |
1 |
Includes 40 |
|
055 |
170-0294
|
Nut 1/2 conduit lock |
1 |
|
|
056 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
1 |
|
|
057 |
170-1538
|
Cord retainer |
1 |
|
|
