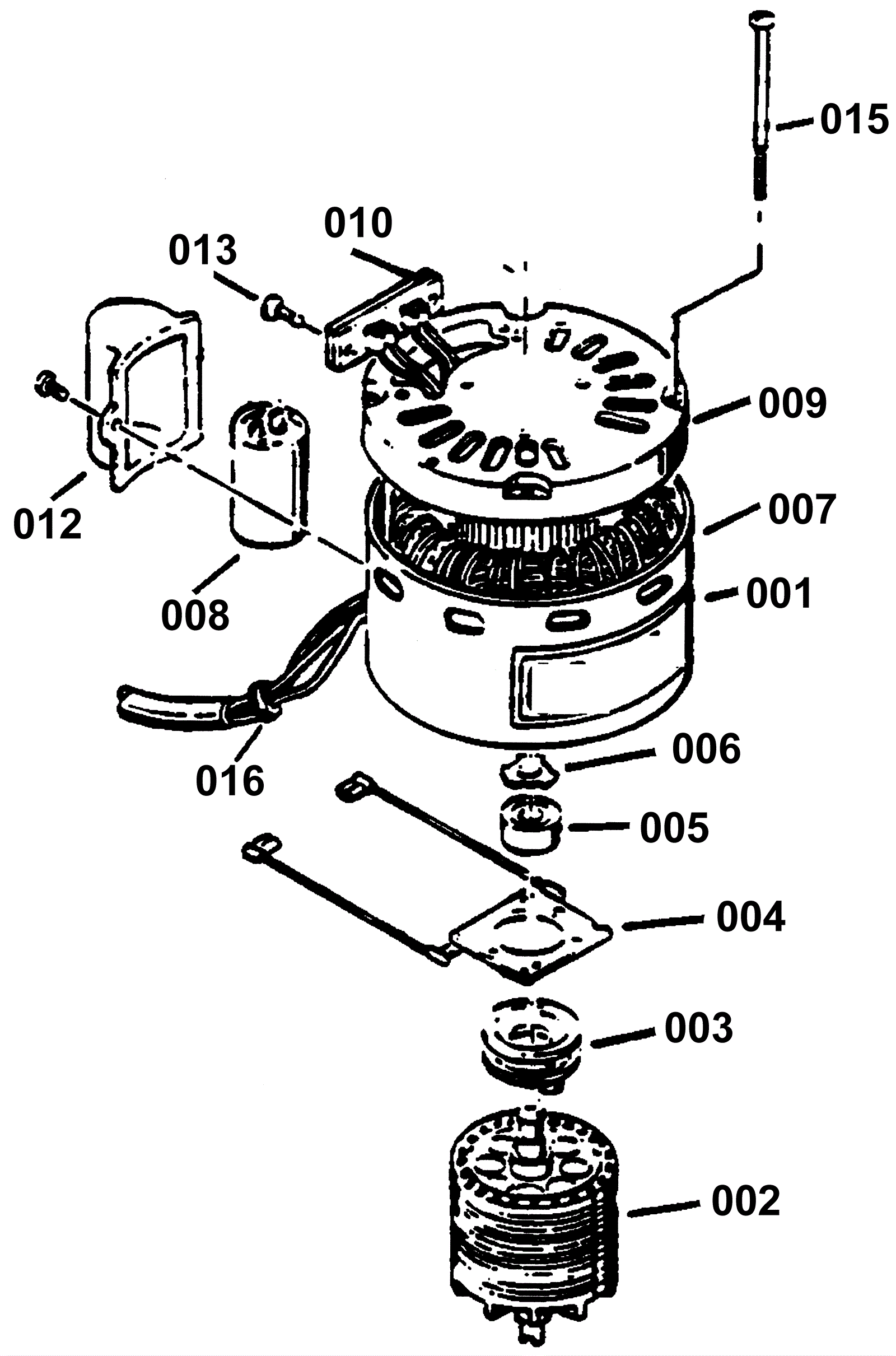

C1800 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001a 170-0484 Alto label (OBSOLETE) $14.36 1 usually ships 1-5 days
001b 170-0497 Clarke decal $15.00 1 usually ships 6-18 days
002 170-0485 Rotor (OBSOLETE) $415.26 1 usually ships 1-5 days
003 170-0486 Centrifugal switch (OBSOLETE) $128.52 1 usually ships 1-5 days
004 170-0488 Stationary switch (OBSOLETE) $106.96 1 usually ships 4-15 days
005 170-0321 Front end bearing $19.58 2 usually ships 4-15 days
006 170-0489 Washer wave (OBSOLETE) $7.56 1 usually ships 1-5 days
007 170-0490 Stator complete 60 Hz (OBSOLETE) $1,075.25 1 usually ships 1-5 days
008a 170-0491 115V capacitor $41.98 1 usually ships 4-15 days
008b 170-0491 115V capacitor $41.98 1 usually ships 4-15 days
009 170-0492 End bell (OBSOLETE) $277.45 1 usually ships 1-5 days
010 170-0493 Terminal board (OBSOLETE) $136.08 1 usually ships 1-5 days
012 N/A Not available Call for price 1 (not available) usually ships 30-32 days
013 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.90 2 ships same day
015 170-0495 Screw 1/4-28 x 6 3/8 hex head (OBSOLETE) $9.18 4 usually ships 1-5 days
016 170-0496 Bushing $9.30 1 usually ships 1-5 days
