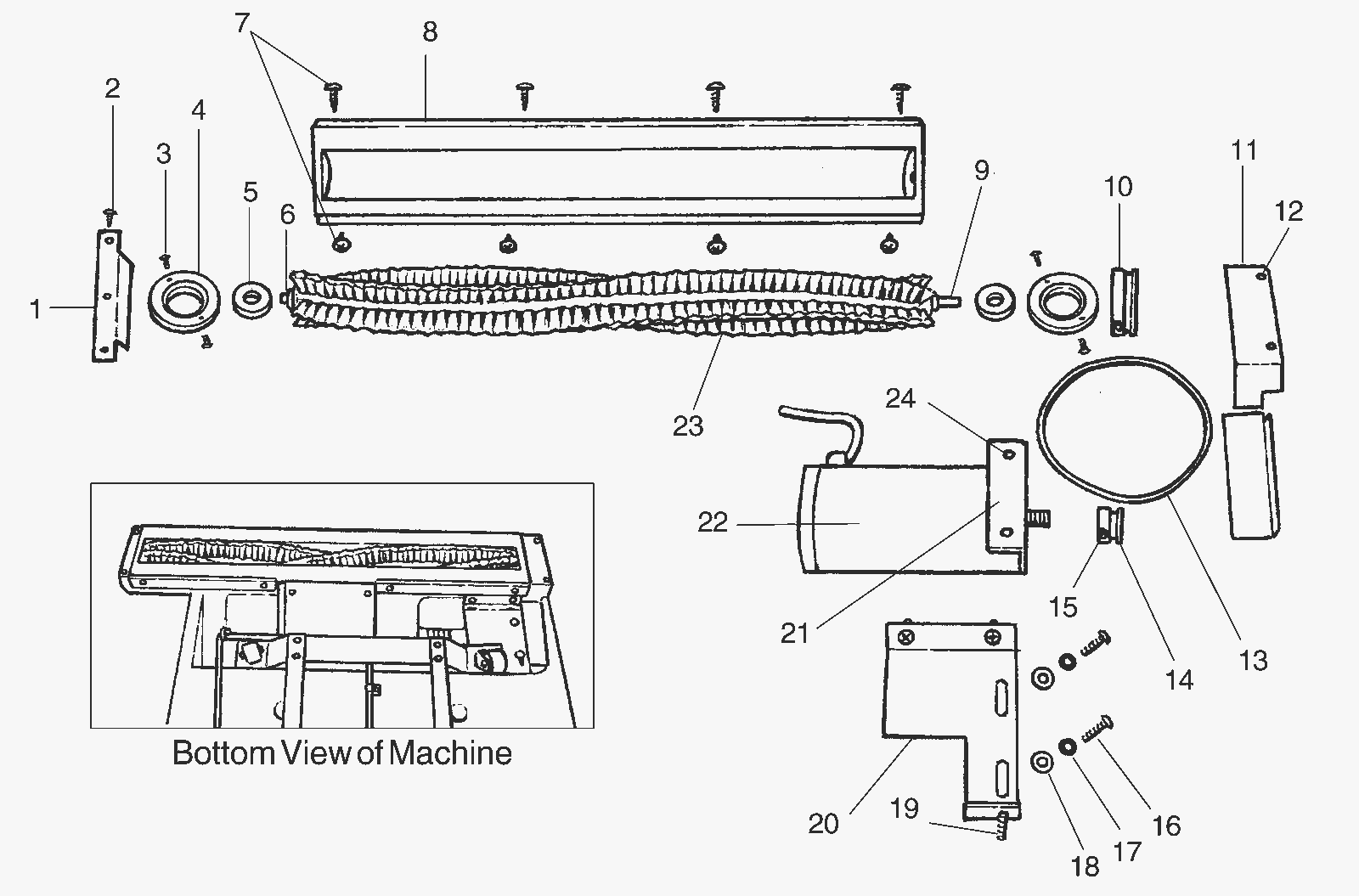

Wheel Assembly

#PartDescription ReqNotesAvailability
1 372-1209 Shoe end 1
2 N/A Not available 3 (Screw)
3 N/A Not available 2 (Screw)
4 270-8074 Bearing housing 2
5 170-7915 Bearing 2
6 270-8073 Brush and shaft assembly 1
7 N/A Not available 8 (Screw)
8 170-7917 Brush shoe 1
9 270-8073 Brush and shaft assembly 1
10 372-1210 Brush pulley 1
11 372-1211 Guard belt 1
12 N/A Not available 4 (Screw)
13 272-5368 Drive belt 1
14 372-1213 Motor pulley 1
15 N/A Not available 2 (Screw)
16 N/A Not available 2 (Screw)
17 N/A Not available 2 (Washer)
18 N/A Not available 2 (Washer)
19 N/A Not available 3 (Screw)
20 372-1214 Brush motor bracket 1
21 372-1215 Motor support 1
22 372-1216 Brush motor 1
23a 270-8073 Brush and shaft assembly 1
23b 270-8073 Brush and shaft assembly 1
24 N/A Not available 4 (Screw)
