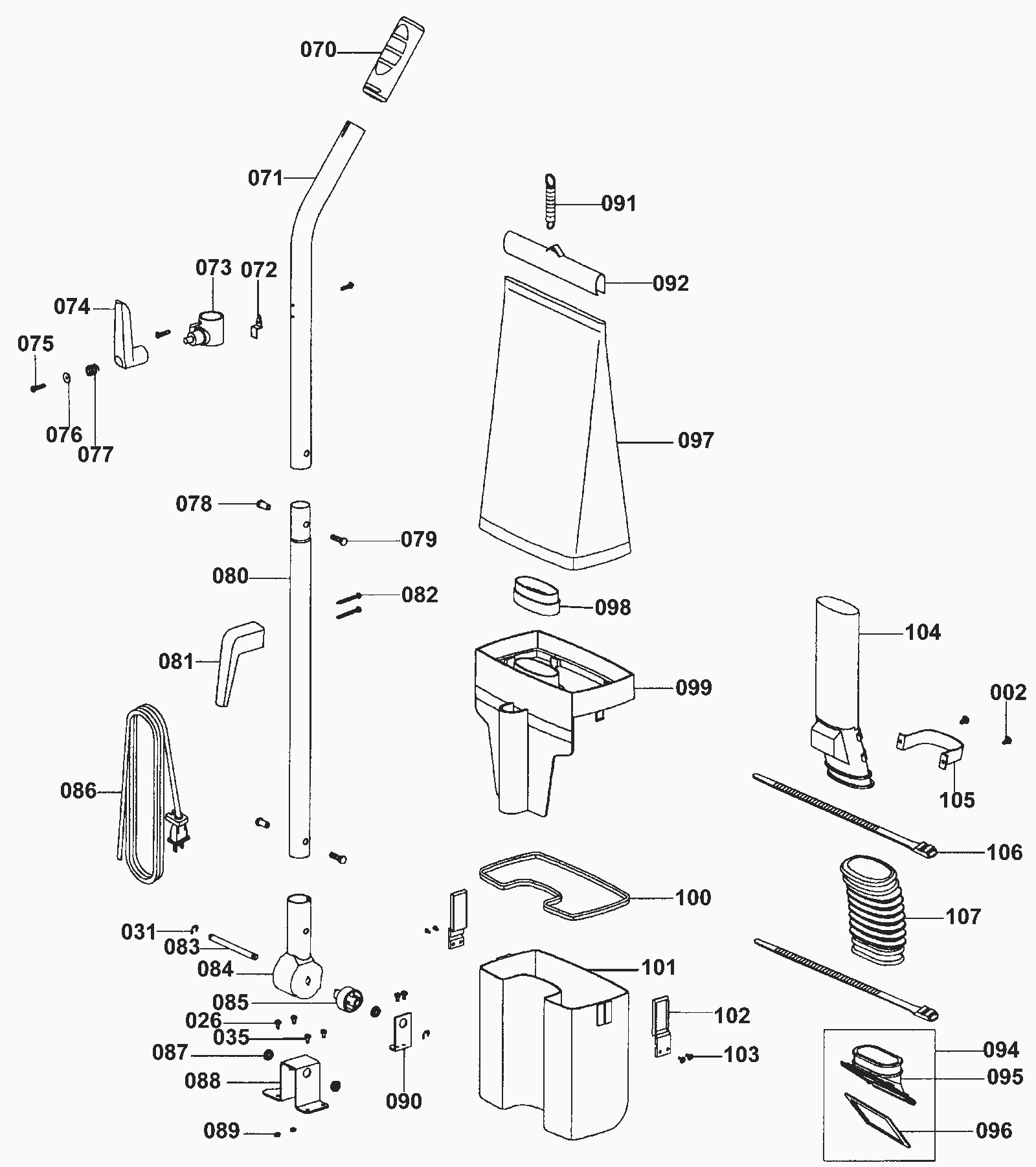

| # | Part | Description |
Req | Notes | Availability |
|---|
002 |
170-5128
|
Screw 4mm x 10mm |
1 |
|
|
026 |
170-5874
|
Screw m4 x 15 |
23 |
|
|
031 |
N/A
|
Not available |
5 |
|
|
035 |
170-5880
|
Screw m4 x 8 (OBSOLETE) |
3 |
|
|
070 |
170-5910
|
Handle grip (OBSOLETE) |
1 |
|
|
071 |
170-5911
|
Upper handle assembly (OBSOLETE) |
1 |
|
|
072 |
170-5912
|
Bag hook (OBSOLETE) |
1 |
|
|
073 |
170-5913
|
Bag retainer |
1 |
|
|
074 |
170-5914
|
Upper cord retainer (OBSOLETE) |
1 |
|
|
075 |
N/A
|
Not available |
3 |
|
|
076 |
N/A
|
Not available |
1 |
(Upper cord retainer washer) |
|
077 |
170-7186
|
Spacer |
2 |
|
|
078 |
170-5915
|
Handle nut (OBSOLETE) |
2 |
|
|
079 |
170-5916
|
Handle screw (OBSOLETE) |
2 |
|
|
080 |
170-5917
|
Lower handle assembly (OBSOLETE) |
1 |
|
|
081 |
170-5918
|
Lower cord retainer (OBSOLETE) |
1 |
|
|
082 |
N/A
|
Not available |
2 |
|
|
083 |
170-5919
|
Handle socket seat axle (OBSOLETE) |
1 |
|
|
084 |
N/A
|
Not available |
1 |
(Handle tube) |
|
085 |
170-5921
|
Handle socket cam (OBSOLETE) |
1 |
|
|
086a |
272-0592
|
18/3 power cord 50 foot (yellow) |
1 |
|
|
086b |
991-5007
|
18/3 replacement power cord 50 foot (black) |
1 |
|
|
087 |
N/A
|
Not available |
3 |
(Handle bushing) |
|
088 |
170-5923
|
Handle socket seat (OBSOLETE) |
1 |
|
|
089 |
170-5924
|
Handle tube nut (OBSOLETE) |
2 |
|
|
090 |
170-5925
|
Handle socket cam clamp (OBSOLETE) |
1 |
|
|
091 |
170-5926
|
Bag spring |
1 |
|
|
092 |
170-5927
|
Chrome bag clip |
1 |
|
|
094 |
N/A
|
Not available |
1 |
(Bag coupling gasket assembly) |
|
095 |
170-5942
|
Bag coupling (OBSOLETE) |
1 |
|
|
096 |
170-5929
|
Bag coupling gasket |
1 |
|
|
097a |
170-3671
|
Collector cup assembly |
1 |
This part is no longer available separately. You must purchase this kit |
|
097b |
170-3671
|
Collector cup assembly |
1 |
|
|
097c |
170-3671
|
Collector cup assembly |
1 |
|
|
097d |
170-3671
|
Collector cup assembly |
1 |
|
|
098 |
170-5933
|
Upper hose seal (OBSOLETE) |
1 |
|
|
099 |
170-3671
|
Collector cup assembly |
1 |
This part is no longer available separately. You must purchase this kit |
|
100 |
170-5934
|
Cup frame gasket |
1 |
|
|
101 |
170-3673
|
Dust collection cup (OBSOLETE) |
1 |
|
|
102 |
170-5935
|
Cup side clip (OBSOLETE) |
2 |
|
|
103 |
N/A
|
Not available |
4 |
|
|
104 |
170-5936
|
Exhaust hose (OBSOLETE) |
1 |
|
|
105 |
170-5937
|
Clamp (OBSOLETE) |
1 |
|
|
106 |
170-5311
|
Cable tie (OBSOLETE) |
2 |
|
|
107 |
N/A
|
Not available |
1 |
(Inlet curved hose) |
|
