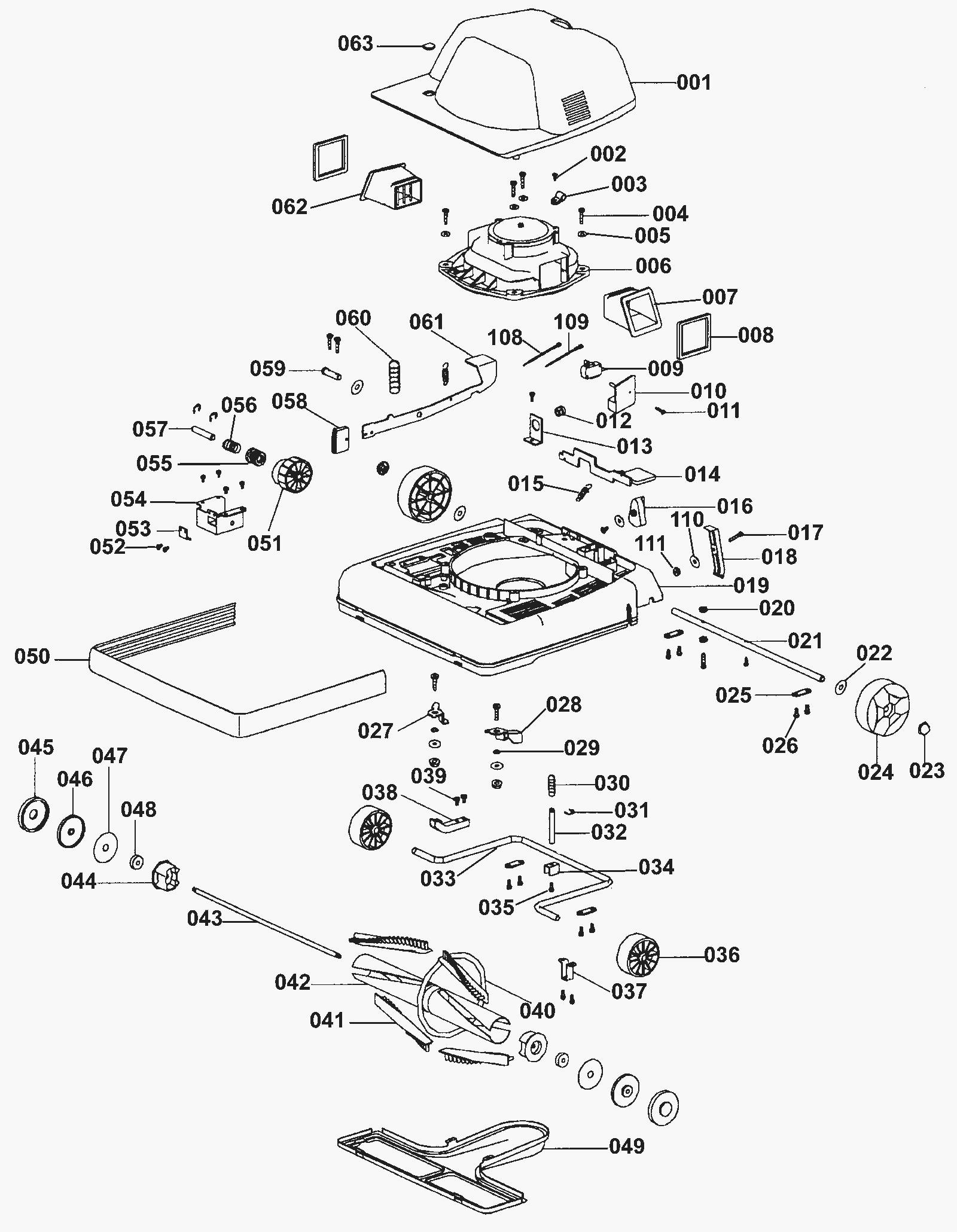

Base Assembly

#PartDescription ReqNotesAvailability
001 170-5856 Hood and graphics (OBSOLETE) 1
002 170-5128 Screw 4mm x 10mm 2
003 170-5857 Cable clip 1
004 170-5008 Screw 6
005 N/A Not available 4 (Washer 413/64 x 12 x 1)
006 170-5858 Motor assembly (OBSOLETE) 1 (Screw M3 x 12)
007 170-5859 Left motor exhaust (OBSOLETE) 1
008 170-5860 Exhaust foam (OBSOLETE) 2
009 170-5861 Power switch 1
010 170-5862 Switch clip (OBSOLETE) 1
011 N/A Not available 2
012 170-5863 Strain relief bushing (OBSOLETE) 1
013 170-5864 Bushing bracket (OBSOLETE) 1
014 170-5865 Foot pedal (OBSOLETE) 1
015 170-5866 Pedal return spring (OBSOLETE) 2
016 170-5867 Bag knob (OBSOLETE) 1
017 170-5008 Screw 4
018 170-5868 Bag support (OBSOLETE) 1
019a 170-5869 12 inch base assembly (OBSOLETE) 1
019b 170-5870 16 inch base assembly (OBSOLETE) 1
020 N/A Not available 2 (Nut M4)
021 170-5871 Rear axle (OBSOLETE) 1
022 N/A Not available 3 (Washer 8 1/2 x 16 x 1)
023 N/A Not available 2 (Nut cap F- type)
024 170-5872 Rear wheel (OBSOLETE) 2
025 170-5873 Wheel axle clamp (OBSOLETE) 4
026 170-5874 Screw m4 x 15 23
027 170-5875 Right cam (OBSOLETE) 1
028 170-5876 Left cam (OBSOLETE) 1
029 N/A Not available 2 (Washer 4 7/64 x 8 x 1)
030 170-5877 Front axle spring (OBSOLETE) 1
031 N/A Not available 5 (E-clip)
032 N/A Not available 1 (Front axle support rod)
033 170-5878 Front axle (OBSOLETE) 1
034 170-5879 Front axle seat (OBSOLETE) 1
035 170-5880 Screw m4 x 8 (OBSOLETE) 3
036 170-5881 Front wheel (OBSOLETE) 2
037 170-5882 Front axle support plate (OBSOLETE) 1
038 170-5883 Front axle clamp (OBSOLETE) 1
039 N/A Not available 2 (Screw M3 x 10)
040 991-0026 Brush roll belt rubber (black) 1 (NON-OEM)
041a 170-3316 Brush strip set 12inch 1
041b 170-5884 16 inch bristle strip set (4 strips0 1
042a N/A Not available 1 (12 Inch brush roll)
042b N/A Not available 1 (16 Inch brush roll)
043a N/A Not available 1 (12 inch shaft)
043b 170-5886 16 inch shaft (OBSOLETE) 1
044 N/A Not available 2 (Bearing support)
045 N/A Not available 2 (Cap cover)
046 N/A Not available 2 (End cap)
047 N/A Not available 2 (Felt washer)
048 N/A Not available 2 (Bearing)
049a 170-5892 12 inch bottom plate assembly 1
049b 170-5893 16 inch bottom plate assembly (OBSOLETE) 1
050a 170-5894 12 inch furniture guard (OBSOLETE) 1
050b 170-5895 12 inch furniture guard (OBSOLETE) 1
051 170-5896 Height adjustment cam (OBSOLETE) 1
052 170-5897 Screw m3 x 6 (OBSOLETE) 2
053 170-5898 Height adjustment cam clip (OBSOLETE) 1
054 170-5899 Height adjustment cam seat (OBSOLETE) 1
055 170-5900 Height adjustment gear (OBSOLETE) 1
056 170-5901 Height adjustment spring (OBSOLETE) 1
057 170-5902 Height adjustment axle (OBSOLETE) 1
058 170-5903 Height adjustment crank gear (OBSOLETE) 1
059 170-5904 Height adjustment crank axle (OBSOLETE) 1
060 170-5905 Pedal support spring (OBSOLETE) 1
061 170-5906 Height adjustment crank (OBSOLETE) 1
062 170-5907 Right motor exhaust (OBSOLETE) 1
063 170-5908 Height indicator (OBSOLETE) 1
108 N/A Not available 1 (Switch wire 16)
109 N/A Not available 1 (Switch wire 18)
110 N/A Not available 4 (Washer 4 13/64 x 14 x 1)
111 N/A Not available 3 (Nut cap M4)
N/S 170-5909 Carbon brush (OBSOLETE) 2
N/S 170-3315 Motor pulley (OBSOLETE) 1
N/S 182-0071 Fan 1
N/S 272-9477 Pulley and fan kit (green) 1 (lifetime warranty)
