| # | Part | Description |
Req | Notes | Availability |
|---|

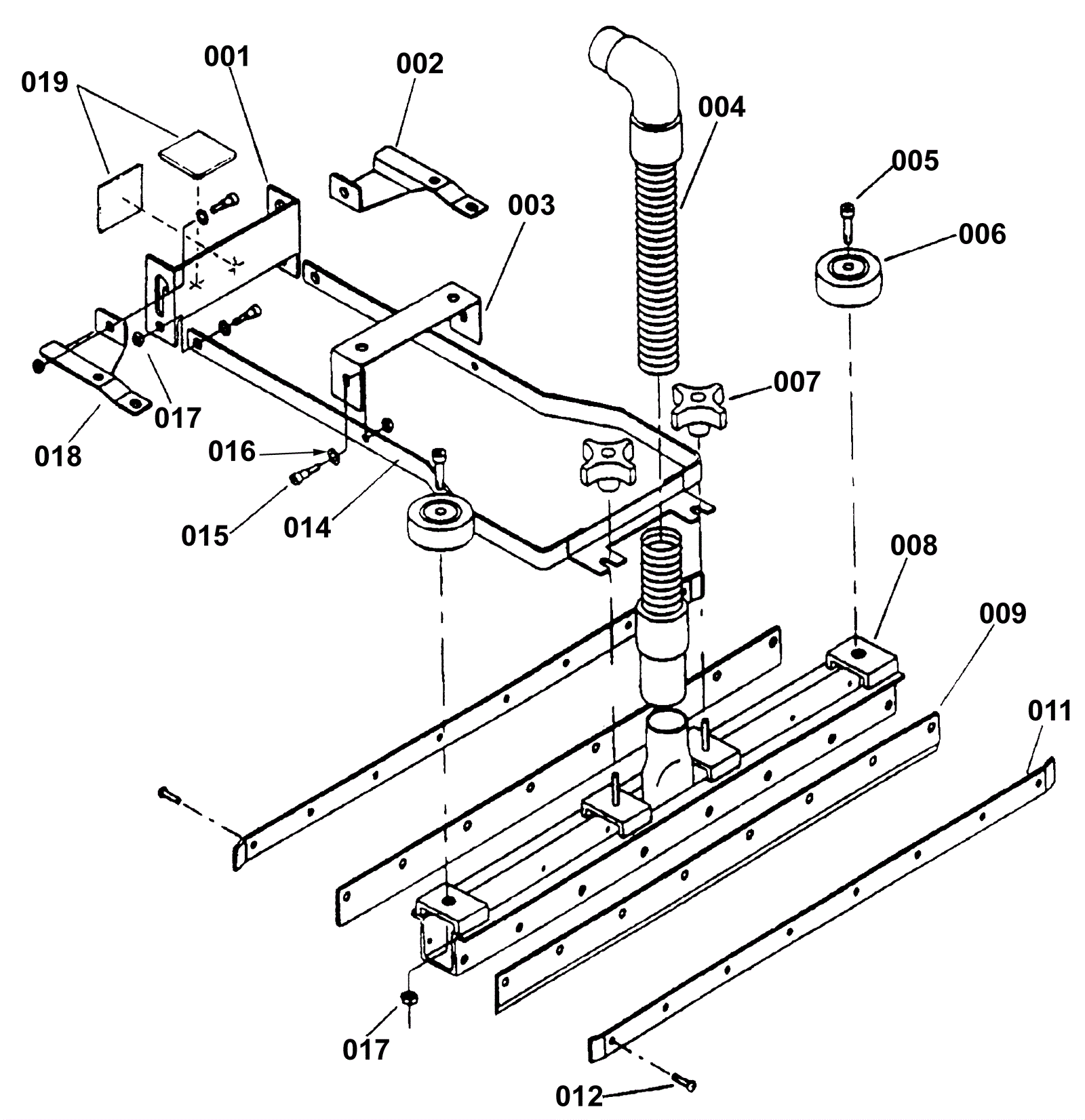

000 |
170-4594
|
Squeegee assembly pumper vacuum (OBSOLETE) |
|
|
|
001 |
170-4583
|
Squeegee lift pedal (OBSOLETE) |
1 |
|
|
002 |
170-4584
|
Pedal left support (OBSOLETE) |
1 |
|
|
003 |
170-4595
|
Lift support (OBSOLETE) |
1 |
|
|
004 |
170-3904
|
Hose (OBSOLETE) |
1 |
|
|
005 |
170-4586
|
Bolt 3/8 x 1 shoulder |
1 |
|
|
006 |
170-0165
|
Wheel (OBSOLETE) |
2 |
|
|
007 |
170-4587
|
Knob (OBSOLETE) |
2 |
|
|
008 |
170-4588
|
Squeegee frame weldment (OBSOLETE) |
1 |
|
|
009 |
170-4589
|
Squeegee blade |
2 |
|
|
011 |
170-4590
|
Squeegee blade retainer (OBSOLETE) |
2 |
|
|
012 |
999-0414
|
Screw 10-32 x 3/4 pan head slotted zinc plated |
16 |
|
|
014 |
170-4591
|
Squeegee lift weldment (OBSOLETE) |
1 |
|
|
015 |
170-1411
|
Shoulder screw |
6 |
|
|
016 |
999-0032
|
Washer 3/8 USS flat plain finish |
6 |
|
|
017 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
|
018 |
170-4592
|
Right pedal support (OBSOLETE) |
1 |
|
|
019 |
170-4593
|
Pedal pad (OBSOLETE) |
2 |
|
|
