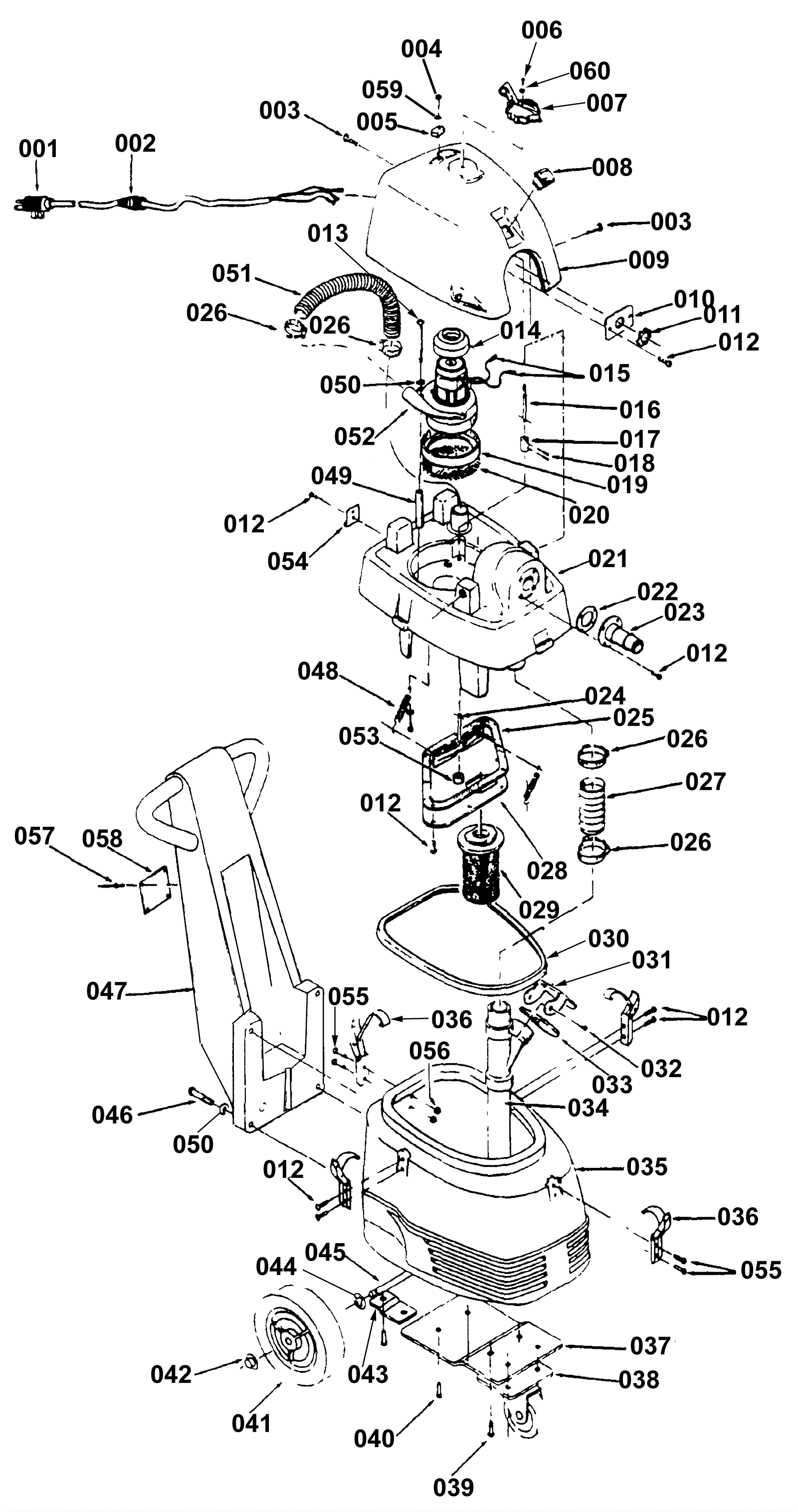

SUMMITPUMPER Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-3283 Cord $118.98 1 usually ships 1-5 days
002 164-4502 Strain relief $13.58 1 usually ships 8-23 days
003 170-4548 Screw 1/4-20 x 3/4 $13.19 4 usually ships 1-5 days
004 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated $0.99 1 ships same day
005 170-4565 Latch stop (OBSOLETE) $46.98 1 usually ships 1-5 days
006 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated $0.99 1 ships same day
007 170-4566 Knob assembly (OBSOLETE) $29.38 1 usually ships 1-5 days
008 170-6163 On/off switch $31.51 1 usually ships 16-41 days
009 170-4567 Motor cover (OBSOLETE) $43.20 1 usually ships 1-5 days
010 170-4543 Strain relief retainer (OBSOLETE) $32.35 1 usually ships 1-5 days
011 170-2413 Nut lock $7.57 1 usually ships 4-15 days
012 170-4461 Screw 10-24 x 3/8 stainless steel $1.10 22 usually ships 1-5 days
013 170-3815 Screw $12.18 3 usually ships 1-5 days
014 170-8047 Gasket (OBSOLETE) $13.07 1 usually ships 1-5 days
015 170-6013 1/4 terminal $3.64 4 usually ships 1-5 days
016 170-4568 Upper diverter shaft (OBSOLETE) $81.11 1 usually ships 1-5 days
017 170-4569 Coupling (OBSOLETE) $20.95 1 usually ships 1-5 days
018 170-3559 Pin 3/32x3/4 roll ss $8.43 2 usually ships 1-5 days
019 170-2841 Vac motor gasket (OBSOLETE_ $27.64 1 usually ships 16-41 days
020 170-2847 Screen (OBSOLETE) $7.78 1 usually ships 1-5 days
021 170-4570 Motor support housing (OBSOLETE) $383.79 1 usually ships 1-5 days
022 170-6196 Swivel Coupling Gasket (OBSOLETE) $9.56 1 usually ships 16-41 days
023 170-4571 Inlet adaptor (OBSOLETE) $146.94 1 usually ships 1-5 days
024 170-4572 Diverter assembly (OBSOLETE) $244.62 1 usually ships 1-5 days
025 170-4573 Chamber gasket (OBSOLETE) $23.11 1 usually ships 1-5 days
026 997-2007 Hose clamp $2.07 4 ships same day
027 170-8113 Dual hose $9.56 1 usually ships 1-5 days
028 170-4574 Chamber cover (OBSOLETE) $216.76 1 usually ships 1-5 days
029 170-0602 Recovery float assembly (OBSOLETE) $129.83 1 usually ships 1-5 days
030 170-8067 Housing gasket $32.79 1 ships same day
031 170-4575 Stand tube door (OBSOLETE) $86.90 1 usually ships 1-5 days
032 170-4576 Screw 6 x 1/4 $14.31 2 usually ships 1-5 days
033 170-4577 Door gasket $8.43 1 usually ships 1-5 days
034 170-4578 Tube assembly (OBSOLETE) $126.90 1 usually ships 1-5 days
035 170-4579 16 Gallon pumper tank (OBSOLETE) $413.42 1 usually ships 1-5 days
036 170-4549 Draw latch $76.05 4 usually ships 1-5 days
037 170-4552 Base plate (OBSOLETE) $39.53 1 usually ships 1-5 days
038 170-6141 Swivel caster (OBSOLETE) $47.60 1 usually ships 1-5 days
039 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 6 ships same day
040 170-4554 Screw 5/16 - 18 x 5/8 stainless steel (OBSOLETE) Call for price 6 usually ships 1-5 days
041 170-6075 Wheel (OBSOLETE) $54.72 2 usually ships 16-41 days
042 170-6076 Pal nut $9.60 2 usually ships 16-41 days
043 170-4553 Axle bracket (OBSOLETE) $17.60 2 usually ships 1-5 days
044 170-5614 Retaining Ring $7.83 2 usually ships 4-15 days
045 170-4555 Shaft axle (OBSOLETE) $38.45 1 usually ships 1-5 days
046 999-1064 Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated $0.99 4 ships same day
047 170-4557 Transport handle (OBSOLETE) $184.38 1 usually ships 1-5 days
048 170-4580 Spring (OBSOLETE) $10.91 2 usually ships 1-5 days
049 170-3808 Spacer $10.68 3 usually ships 1-5 days
050 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
051 170-6083 Exhaust hose $21.77 1 usually ships 16-41 days
052 170-8008 115V motor assembly $156.25 1 usually ships 16-41 days
053 170-4581 Bushing cover (OBSOLETE) $30.24 1 usually ships 1-5 days
054 170-4582 Latch keeper (OBSOLETE) $12.74 1 usually ships 1-5 days
055 999-1191 Screw 10-24 x 5/8 round head slotted stainless steel $0.99 4 ships same day
056 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
057 375-7487 Rivet 1/8 x 5/16 inch (OBSOLETE) $9.56 4 usually ships 16-41 days
058 170-4563 Warning plate (OBSOLETE) $13.07 1 usually ships 1-5 days
059 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
060 999-0148 Washer #6 external star lock zinc plated $0.99 1 ships same day
