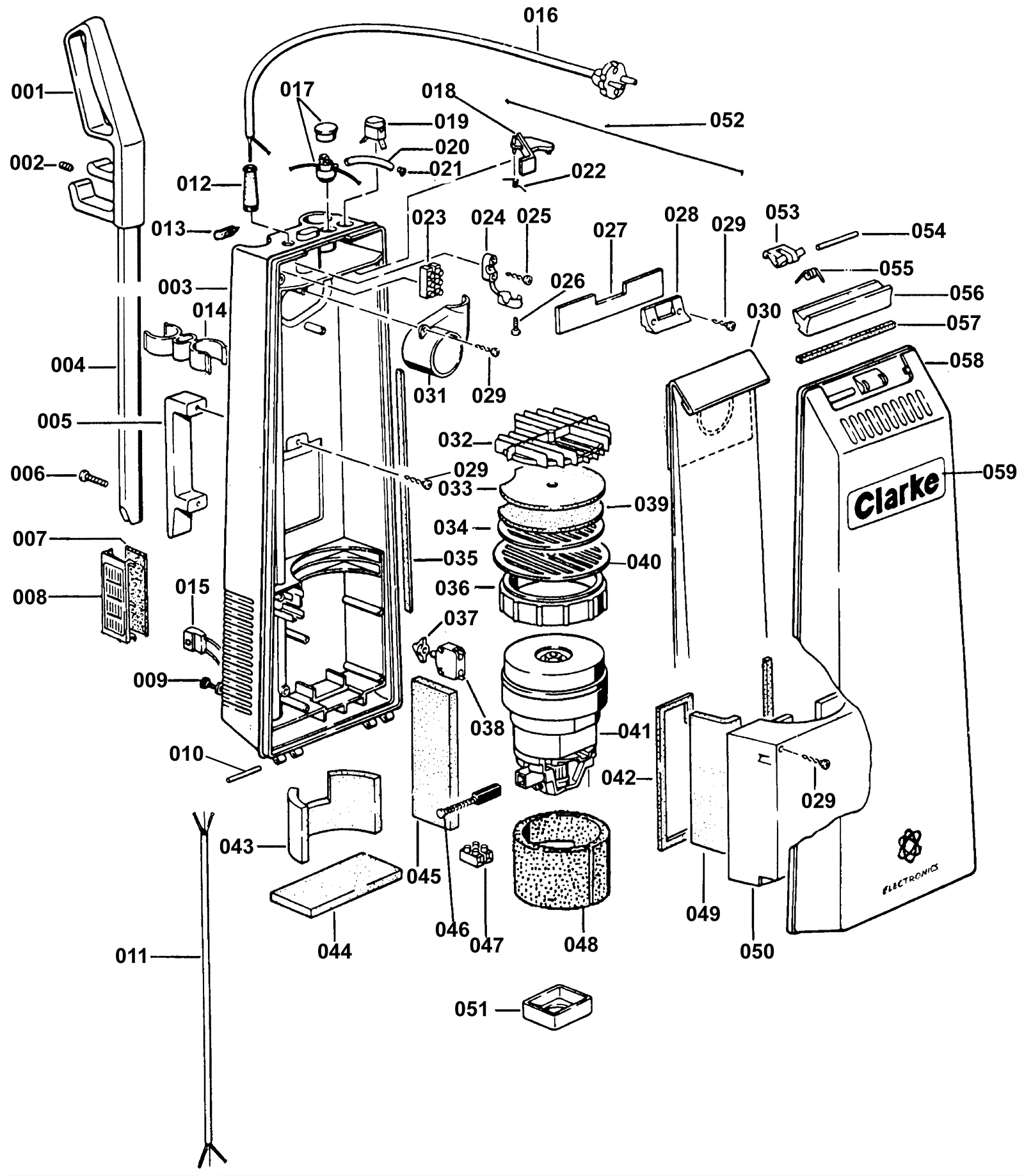

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-4606
|
Handle (OBSOLETE) |
1 |
|
|
002 |
170-9937
|
Screw M6 x 12 (OBSOLETE) |
1 |
|
|
003 |
170-4607
|
Rear housing (OBSOLETE) |
1 |
|
|
004 |
170-9952
|
Handle tube (OBSOLETE) |
1 |
|
|
005 |
170-7203
|
Nut plastic (OBSOLETE) |
1 |
|
|
006 |
170-9954
|
Screw 6 x 40 thumb (OBSOLETE) |
1 |
|
|
007 |
170-9936
|
Exhaust filter |
1 |
|
|
008 |
170-4608
|
Filter frame (OBSOLETE) |
1 |
|
|
009 |
170-5015
|
Thumb screw set of 2 |
1 |
|
|
010 |
170-9966
|
Grooved pin (OBSOLETE) |
2 |
|
|
011 |
170-9967
|
Connecting cord w/3 wires (OBSOLETE) |
1 |
|
|
012 |
170-4609
|
115 Volt cord sleeve (OBSOLETE) |
1 |
|
|
013 |
170-9976
|
Clarke label |
1 |
|
|
014 |
170-4610
|
Accessory clamp (OBSOLETE) |
1 |
|
|
015 |
170-9955
|
ReceptIcal (OBSOLETE) |
1 |
|
|
016 |
170-8910
|
Power cord 120V |
1 |
|
|
017 |
170-9940
|
Indicator light 115V (OBSOLETE) |
1 |
|
|
018 |
170-5032
|
Locking bar |
1 |
|
|
019 |
170-5131
|
Master switch |
1 |
|
|
020 |
170-5035
|
Tubing (OBSOLETE) |
1 |
|
|
021 |
170-5036
|
Rivet (OBSOLETE) |
1 |
|
|
022 |
170-5033
|
Spiral spring (OBSOLETE) |
1 |
|
|
023 |
170-5022
|
Block terminal (OBSOLETE) |
1 |
|
|
024 |
170-9942
|
Strain relief (OBSOLETE) |
1 |
|
|
025 |
170-9943
|
Screw B 2.9 x 16 (OBSOLETE) |
1 |
|
|
026 |
999-1180
|
Screw M3-.5 x 16mm pan head stainless steel |
1 |
|
|
027 |
170-9944
|
Cover plate (OBSOLETE) |
1 |
|
|
028 |
170-9945
|
Tank catch (OBSOLETE) |
1 |
|
|
029 |
170-5008
|
Screw |
10 |
|
|
030a |
170-0126
|
Paper vacuum bag (pkg of 10) |
1 |
|
|
030b |
991-9033
|
Paper vacuum bags (pkg of 10) (OBSOLETE) |
1 |
(NON-OEM) |
|
031 |
170-9958
|
Bag adapter (OBSOLETE) |
1 |
|
|
032 |
170-9956
|
Filter holder (OBSOLETE) |
1 |
|
|
033 |
170-3327
|
Vac motor filter (OBSOLETE) |
1 |
|
|
034 |
170-9961
|
Filter spacer (OBSOLETE) |
1 |
|
|
035 |
170-9959
|
Gasket (OBSOLETE) |
1 |
|
|
036 |
170-9962
|
Motor mounting ring (OBSOLETE) |
1 |
|
|
037 |
170-5016
|
Switch cap |
1 |
|
|
038 |
170-5017
|
Switch wand |
1 |
|
|
039 |
170-9982
|
Microstaph filter (OBSOLETE) |
1 |
|
|
040 |
170-9977
|
Filter disc (OBSOLETE) |
1 |
|
|
041 |
170-9964
|
Vacuum motor 115V (OBSOLETE) |
1 |
|
|
042 |
170-9974
|
Gasket (OBSOLETE) |
1 |
|
|
043 |
170-5050
|
Foam (OBSOLETE) |
1 |
|
|
044 |
170-5019
|
Insulating insert |
1 |
|
|
045 |
170-9969
|
Exhaust filter |
1 |
|
|
046 |
170-5023
|
Carbon brushes 120v (OBSOLETE) |
1 |
|
|
047 |
170-4611
|
Terminal block (OBSOLETE) |
1 |
|
|
048 |
170-9981
|
Foam ring |
1 |
|
|
049 |
170-9971
|
Foam (OBSOLETE) |
1 |
|
|
050 |
170-9972
|
Vacuum motor cover (OBSOLETE) |
1 |
|
|
051 |
170-9970
|
Motor mount (OBSOLETE) |
1 |
|
|
052 |
170-9979
|
Nylon cord (OBSOLETE) |
1 |
|
|
053 |
170-9946
|
Housing latch (OBSOLETE) |
1 |
|
|
054 |
170-9948
|
Cylinder pin (OBSOLETE) |
1 |
|
|
055 |
170-9947
|
Spring (OBSOLETE) |
1 |
|
|
056 |
170-4612
|
Housing latch bar (OBSOLETE) |
1 |
|
|
057 |
170-9950
|
Tank gasket (OBSOLETE) |
1 |
|
|
058 |
170-4613
|
Front housing (OBSOLETE) |
1 |
|
|
059 |
170-4614
|
Label (OBSOLETE) |
1 |
|
|
N/A |
170-5053
|
Tool - floor |
1 |
Floor tool |
|
N/A |
170-5124
|
Cloth filter bag (Combivacs) (OBSOLETE) |
1 |
Cloth bag |
|
N/A |
170-5056
|
Kit of 6 Microfilters (OBSOLETE) |
1 |
Six microfilters / spacer kit |
|
N/A |
170-5052
|
Tool-furniture brush |
1 |
Furniture brush tool |
|
N/A |
170-4615
|
Reinforcing plate kit (OBSOLETE) |
1 |
Reinforcing plate kit |
|
N/A |
170-9982
|
Microstaph filter (OBSOLETE) |
1 |
Microstaph filter |
|
