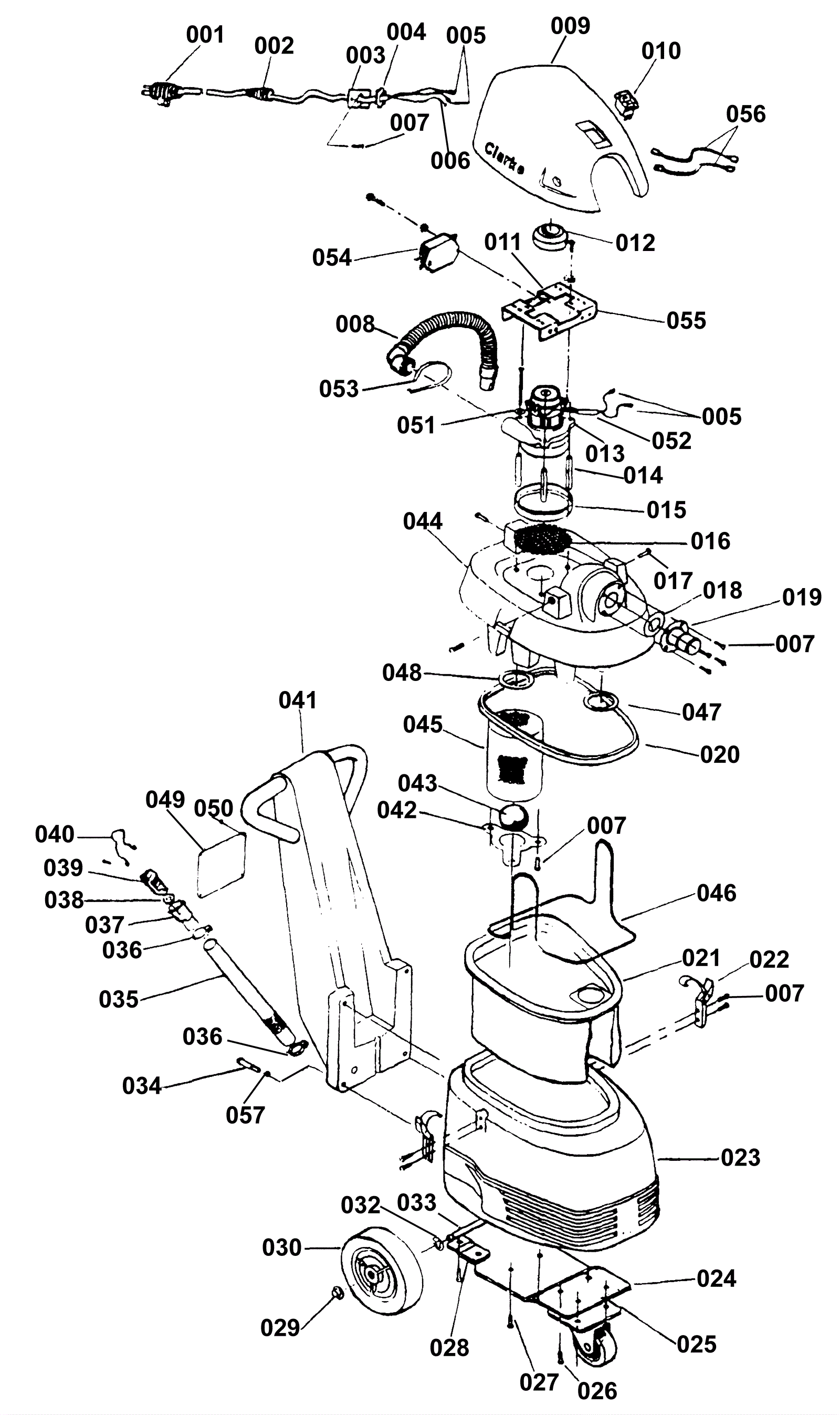

SUMMIT 12HP Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-3283 Cord $130.88 1 usually ships 1-5 days
002 164-4502 Strain relief $14.94 1 usually ships 8-23 days
003 170-4543 Strain relief retainer (OBSOLETE) $35.59 1 usually ships 1-5 days
004 170-2413 Nut lock $8.33 1 usually ships 4-15 days
005 170-6013 1/4 terminal $4.00 4 usually ships 1-5 days
006 170-6014 Terminal clip $2.35 1 usually ships 4-15 days
007 170-4461 Screw 10-24 x 3/8 stainless steel $1.21 13 usually ships 1-5 days
008 170-6083 Exhaust hose $23.95 1 usually ships 16-41 days
009a 170-4544 Motor cover (OBSOLETE) $270.27 1 Summit 12 usually ships 1-5 days
009b 170-4545 Motor cover (OBSOLETE) Call for price 1 Summit 16 usually ships 1-5 days
010 170-6163 On/off switch $34.66 1 usually ships 16-41 days
011 170-4546 Screw 1/4-20 x 3 3/4 $10.52 3 usually ships 1-5 days
013a 991-1213 120V 3 stage vacuum motor tangential $177.60 1 ships same day
013b 170-3418 Mechanism brush $34.56 2 usually ships 1-5 days
013c 170-8008 115V motor assembly $171.88 2 usually ships 16-41 days
014 170-0274 Vacuum motor spacer $28.46 3 usually ships 16-41 days
015 170-2841 Vac motor gasket (OBSOLETE_ $30.40 1 usually ships 16-41 days
016 170-2847 Screen (OBSOLETE) $8.56 1 usually ships 1-5 days
017 170-4548 Screw 1/4-20 x 3/4 $14.51 3 usually ships 1-5 days
018 170-6196 Swivel Coupling Gasket (OBSOLETE) $10.52 1 usually ships 16-41 days
019 170-6197 Vacuum Hose Adapter (OBSOLETE) $120.37 1 usually ships 16-41 days
020 170-8067 Housing gasket $36.07 1 ships same day
021 170-6283 Filter bag (Sumit) (OBSOLETE) $132.00 1 usually ships 16-41 days
022 170-4549 Draw latch $83.66 2 usually ships 1-5 days
023a 170-4550 12 Gallon tank (OBSOLETE) $431.24 1 usually ships 1-5 days
023b 170-4551 16 Gallon tank (OBSOLETE) Call for price 1 usually ships 1-5 days
024 170-4552 Base plate (OBSOLETE) $43.48 1 usually ships 1-5 days
025 170-6141 Swivel caster (OBSOLETE) $52.36 1 usually ships 1-5 days
026 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
027 170-4554 Screw 5/16 - 18 x 5/8 stainless steel (OBSOLETE) Call for price 6 usually ships 1-5 days
028 170-4553 Axle bracket (OBSOLETE) $19.36 2 usually ships 1-5 days
029 170-6076 Pal nut $10.56 2 usually ships 16-41 days
030 170-6075 Wheel (OBSOLETE) $60.19 2 usually ships 16-41 days
032 170-5614 Retaining Ring $8.61 2 usually ships 4-15 days
033 170-4555 Shaft axle (OBSOLETE) $42.30 1 usually ships 1-5 days
034 999-1064 Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated $0.99 4 ships same day
035 170-4556 Drain hose (OBSOLETE) $82.25 1 usually ships 1-5 days
036 164-0218 Nylon hose clamp $3.69 2 usually ships 8-23 days
037 170-0043 Drain valve $25.36 1 ships same day
038 170-0032 Drain valve gasket $10.56 1 ships same day
039 170-0042 Drain valve handle $25.36 1 usually ships 16-41 days
040 172-2474 8 inch chain $10.56 1 ships same day
041 170-4557 Transport handle (OBSOLETE) $202.82 1 usually ships 1-5 days
042 170-4558 Float retainer (OBSOLETE) $29.78 1 usually ships 1-5 days
043 170-3300 Float $32.60 1 usually ships 1-5 days
044 170-4559 Motor support housing (OBSOLETE) $292.84 1 usually ships 1-5 days
045 170-4560 Filter screen $43.75 1 usually ships 1-5 days
046 170-4561 Filter bag support (OBSOLETE) $36.23 1 usually ships 1-5 days
047 170-4562 Gasket $10.52 1 usually ships 16-41 days
048 170-6198 Drain Valve Gasket $10.52 1 usually ships 16-41 days
049 170-4563 Warning plate (OBSOLETE) $14.38 1 usually ships 1-5 days
050 375-7487 Rivet 1/8 x 5/16 inch (OBSOLETE) $10.52 4 usually ships 16-41 days
051 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
052 170-4564 Sleeve $5.50 1 usually ships 1-5 days
053 170-0080 Wire tie $11.99 1 usually ships 16-41 days
056 170-3814 Lead assembly (OBSOLETE) $7.01 2 usually ships 1-5 days
057 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
