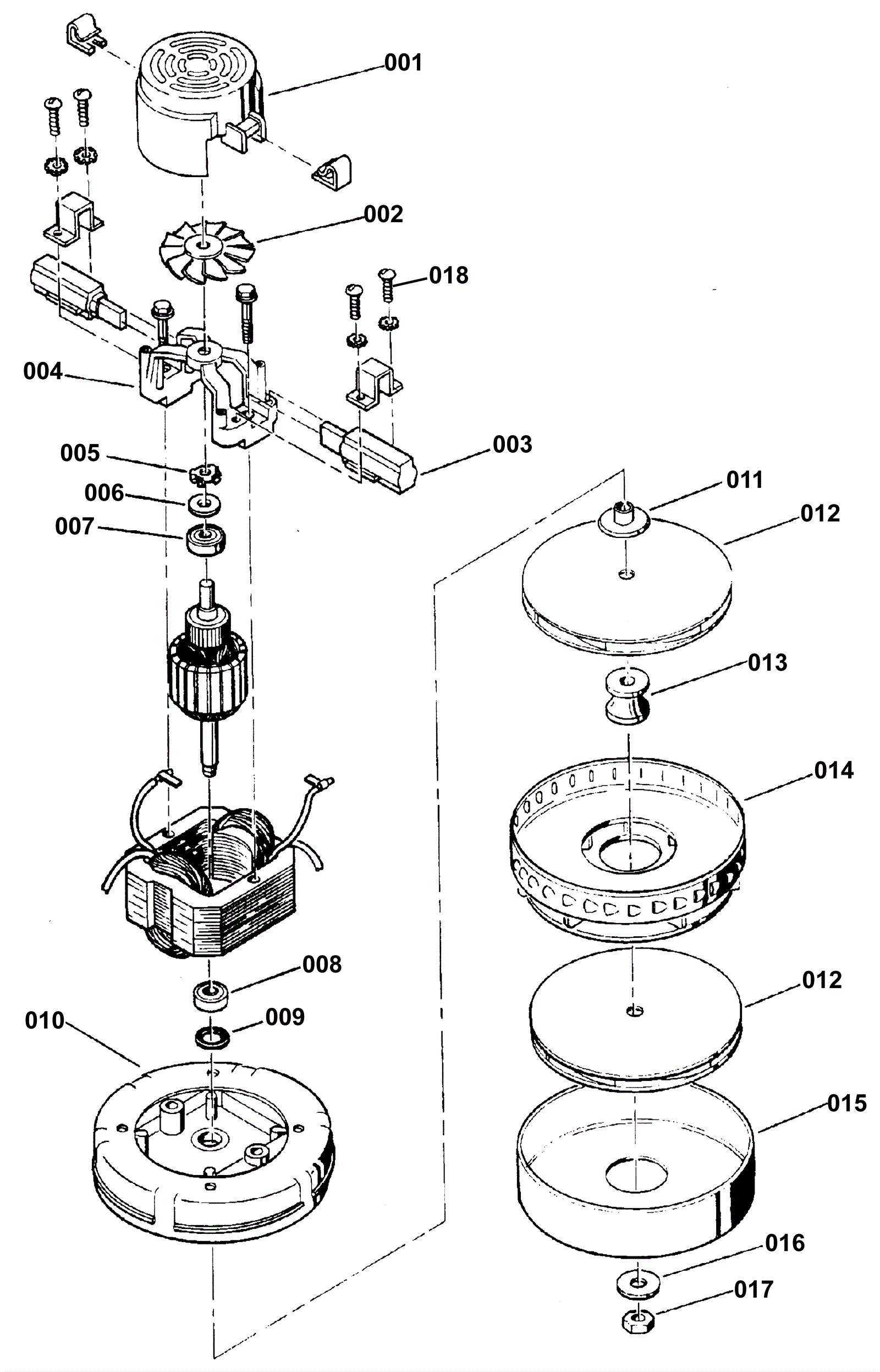

| # | Part | Description |
Req | Notes | Availability |
|---|
002 |
170-0356
|
Vent fan |
1 |
|
|
003 |
172-6012
|
Carbon brush (pkg of 2) |
2 |
|
|
004 |
170-0359
|
Communicator end bracket |
1 |
|
|
005 |
170-2175
|
Load spring (OBSOLETE) |
1 |
|
|
006 |
170-0360
|
Disc (OBSOLETE) |
1 |
|
|
007 |
170-3828
|
Ball bearing (OBSOLETE) |
1 |
|
|
008 |
170-0362
|
Radial ball bearing |
1 |
|
|
009 |
170-0363
|
Washer neoprene |
1 |
|
|
010 |
170-3829
|
Fan end bracket (OBSOLETE) |
1 |
|
|
011 |
170-3830
|
Spacer (OBSOLETE) |
1 |
|
|
012 |
170-0366
|
Rotating fan |
1 |
|
|
013 |
170-0367
|
Spacer (OBSOLETE) |
1 |
|
|
014 |
170-3831
|
Stationary fan (OBSOLETE) |
1 |
|
|
015 |
170-0369
|
Fan shell (OBSOLETE) |
1 |
|
|
016 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
|
017 |
999-0341
|
Nut 5/16-24 hex left hand plain finish |
1 |
|
|
018 |
999-0452
|
Screw 8-32 x 3/8 pan head phillips zinc plated |
4 |
|
|
