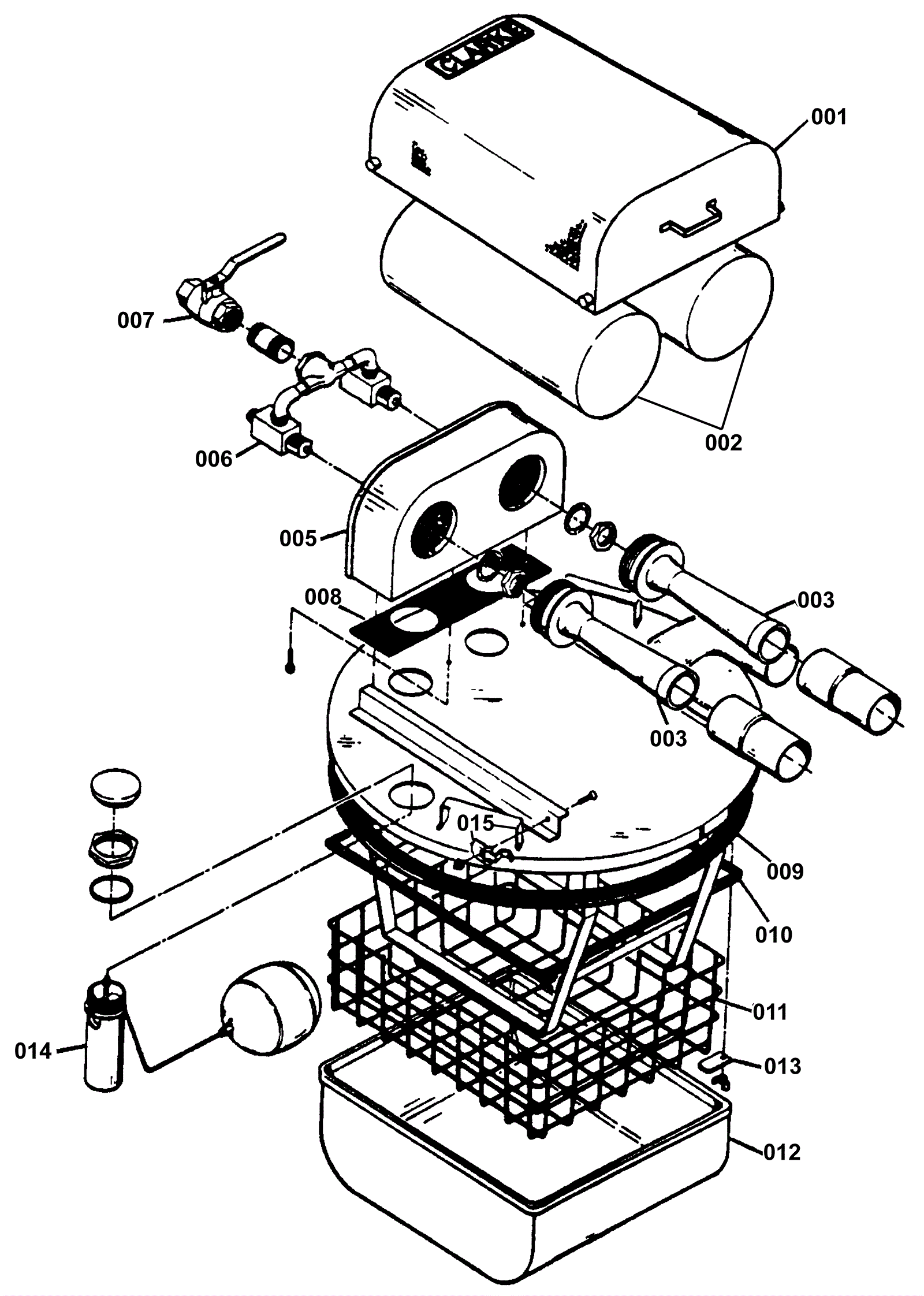

Entire Assembly

#PartDescription ReqNotesAvailability
001 170-3778 Guard (OBSOLETE) 1
002 170-3779 Muffler (OBSOLETE) 2
003 170-3780 Venturi 2
005 170-3781 Housing (OBSOLETE) 1
006 170-3782 Variable orifice (OBSOLETE) 1
007 170-3783 Air control valve (OBSOLETE) 1
008 170-3784 Housing gasket (OBSOLETE) 1
009 170-3785 Gasket cover (OBSOLETE) 1
010 170-3786 Gasket filter (OBSOLETE) 1
011 170-3787 Basker filter (OBSOLETE) 1
012 170-3788 Dust filter (OBSOLETE) 1
013 170-3789 Lugs filter (OBSOLETE) 1
014 170-3790 Cut off assembly (OBSOLETE) 6
015 170-3791 Guard clip muffler (OBSOLETE) 1
