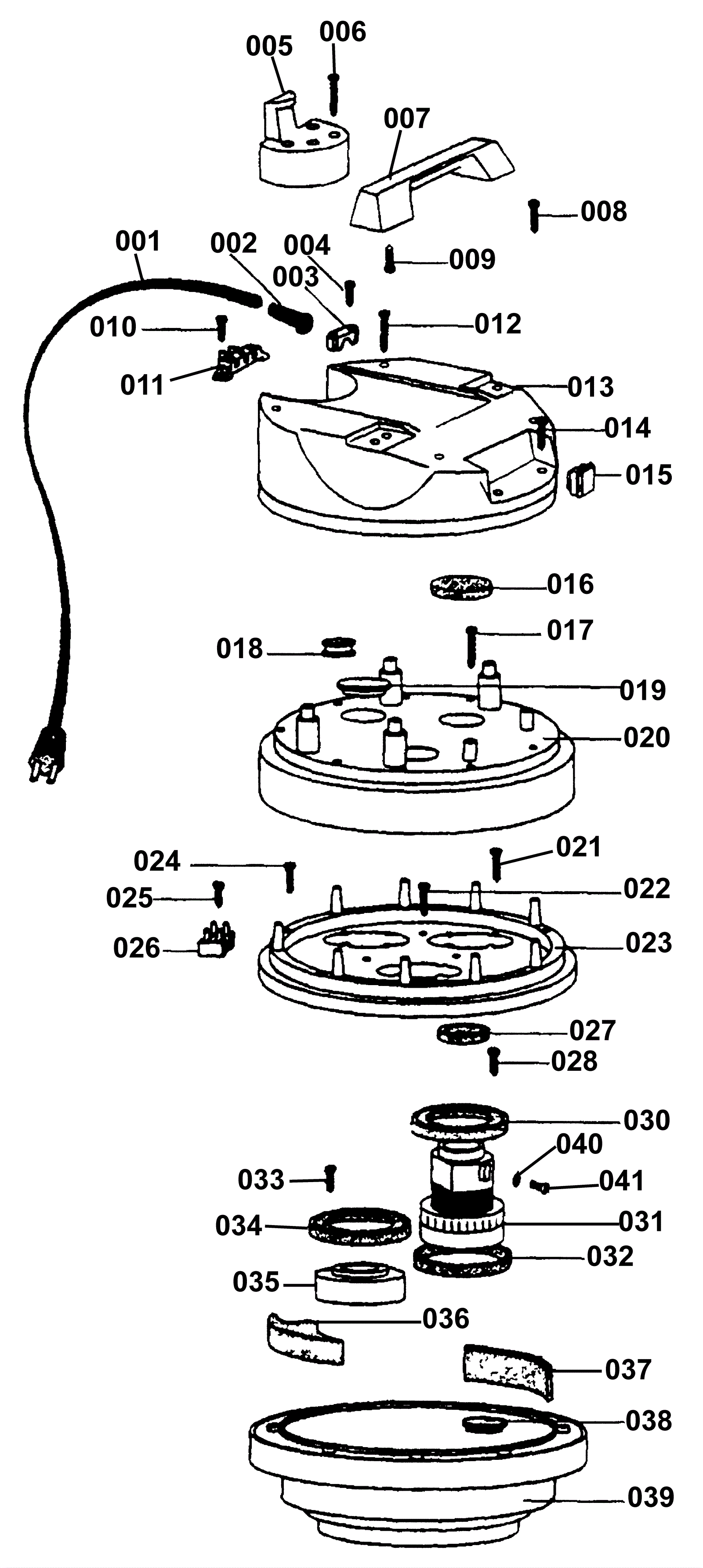

STV20 Single Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-3461 Power cord $209.59 1 usually ships 1-5 days
002 170-3964 Strain relief $12.10 1 usually ships 1-5 days
003 170-3965 Grip cord (OBSOLETE) $5.50 1 usually ships 1-5 days
004 170-3966 Screw 5mm x 20mm $9.13 2 usually ships 1-5 days
005 170-3967 Hook cord $15.95 1 usually ships 1-5 days
006 170-3973 Screw 5mm x 50mm (OBSOLETE) $7.92 4 usually ships 1-5 days
007 170-3969 Lift handle $11.19 1 usually ships 1-5 days
008 170-3970 Screw 5mm x 35mm $12.83 2 usually ships 1-5 days
009 170-3966 Screw 5mm x 20mm $9.13 4 usually ships 1-5 days
010 170-3960 Screw 5mm x 15mm (OBSOLETE) $9.13 2 usually ships 1-5 days
011 170-3972 Terminal block (OBSOLETE) Call for price 1 usually ships 1-5 days
012 170-3973 Screw 5mm x 50mm (OBSOLETE) $7.92 2 usually ships 1-5 days
013 170-3974 Dome cover (OBSOLETE) $96.80 1 usually ships 1-5 days
014 170-3966 Screw 5mm x 20mm $9.13 2 usually ships 1-5 days
015 170-6163 On/off switch $34.66 1 usually ships 16-41 days
016 170-3976 Upper filter $10.52 1 usually ships 16-41 days
017 170-3973 Screw 5mm x 50mm (OBSOLETE) $7.92 9 usually ships 1-5 days
018 170-3978 Spring clip (OBSOLETE) $5.50 1 usually ships 1-5 days
019 170-3979 Upper plug (OBSOLETE) $5.50 2 usually ships 1-5 days
020 170-3980 Motor cover $110.00 1 usually ships 1-5 days
021 170-3981 Screw 5mm x 40mm $9.13 9 usually ships 1-5 days
022 170-3981 Screw 5mm x 40mm $9.13 3 usually ships 1-5 days
023 170-3983 Motor support (OBSOLETE) $33.11 1 usually ships 1-5 days
024 170-3984 Screw 5mm x 30mm (OBSOLETE) Call for price 1 usually ships 1-5 days
025 170-3985 Screw 4 5/16 x 19mm (OBSOLETE) $5.50 1 usually ships 1-5 days
026 170-3986 Terminal block (OBSOLETE) $7.43 1 usually ships 1-5 days
027 170-3987 Vacuum motor ring $11.77 1 usually ships 16-41 days
028 170-3966 Screw 5mm x 20mm $9.13 4 usually ships 1-5 days
029 170-3989 Vacuum motor gasket $15.70 1 usually ships 16-41 days
030 170-3990 115 v vacuum motor (OBSOLETE) $457.89 1 usually ships 16-41 days
031 170-3991 115 Vold carbon brush $40.45 1 usually ships 16-41 days
032 170-3989 Vacuum motor gasket $15.70 1 usually ships 16-41 days
033 170-3966 Screw 5mm x 20mm $9.13 8 usually ships 1-5 days
034 170-3989 Vacuum motor gasket $15.70 2 usually ships 16-41 days
035 170-3995 Motor plug (OBSOLETE) $11.76 2 usually ships 1-5 days
036 170-3996 Triangle foam $13.20 3 usually ships 1-5 days
037 170-3997 Filter $9.13 3 usually ships 1-5 days
038 170-3998 Lower plug (OBSOLETE) $5.50 2 usually ships 1-5 days
039 170-3999 Motor base (OBSOLETE) $150.15 1 usually ships 1-5 days
040 170-4003 Star washer (OBSOLETE) $5.50 1 usually ships 1-5 days
041a 170-4004 Screw 4mm x 8mm Call for price 1 usually ships 1-5 days
041b 170-4005 Wire (OBSOLETE) $2.20 4 usually ships 1-5 days
041c 170-4006 Clip (OBSOLETE) $0.99 2 usually ships 1-5 days
