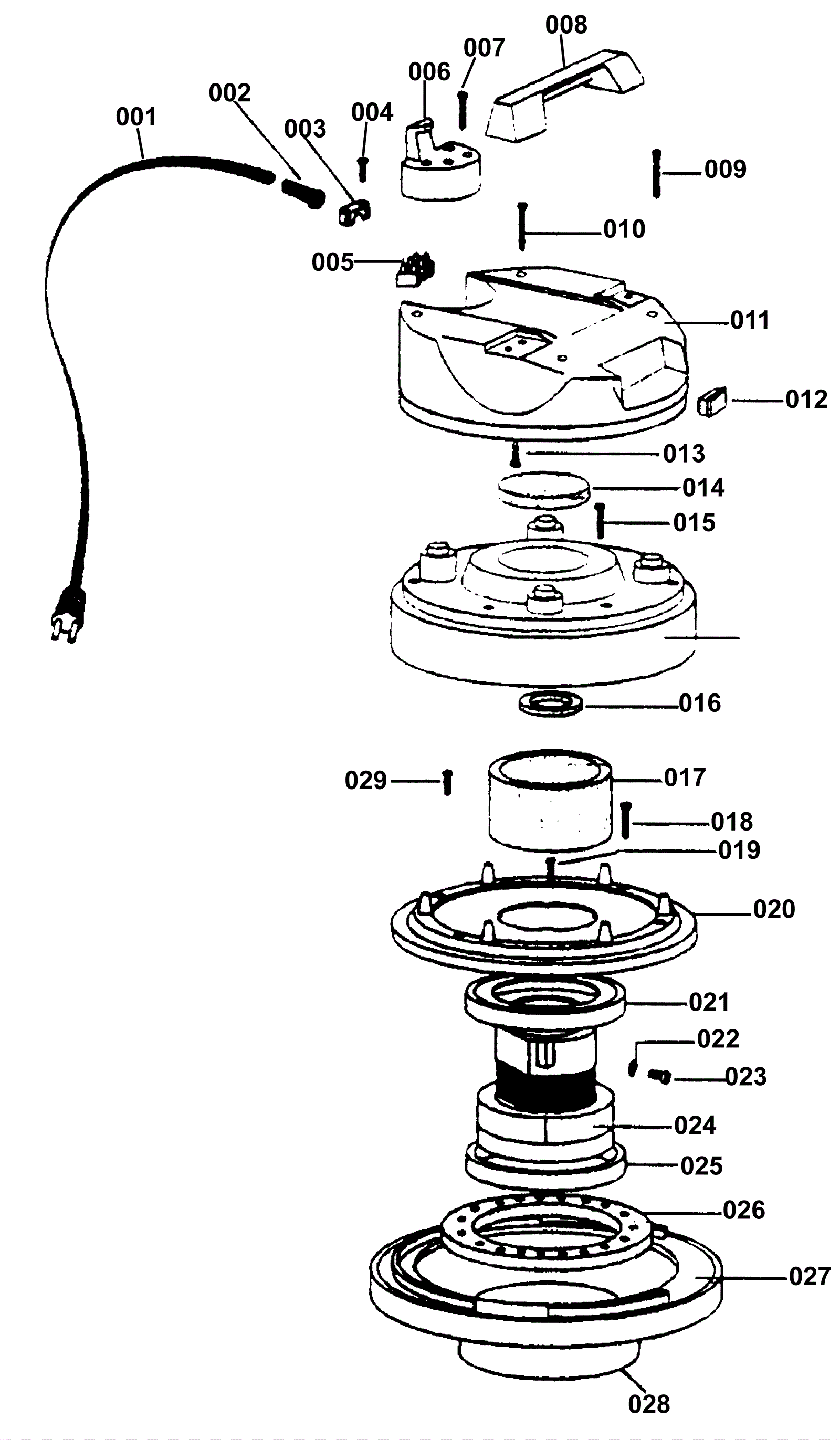

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-3461
|
Power cord |
1 |
|
|
002 |
170-3964
|
Strain relief |
1 |
|
|
003 |
170-3965
|
Grip cord (OBSOLETE) |
1 |
|
|
004 |
170-3966
|
Screw 5mm x 20mm |
2 |
|
|
005 |
170-8188
|
Terminal block (OBSOLETE) |
1 |
|
|
006 |
170-2350
|
Bracket (OBSOLETE) |
1 |
|
|
007 |
170-3970
|
Screw 5mm x 35mm |
4 |
|
|
008 |
170-8189
|
Lift handle (OBSOLETE) |
1 |
|
|
009 |
170-8190
|
Screw 5mm x 35 mm |
2 |
|
|
010 |
170-8190
|
Screw 5mm x 35 mm |
2 |
|
|
011 |
170-2351
|
Tube,Axle Mtg. (OBSOLETE) |
1 |
|
|
012 |
170-6163
|
On/off switch |
1 |
|
|
013 |
170-3966
|
Screw 5mm x 20mm |
4 |
|
|
014 |
170-3976
|
Upper filter |
1 |
|
|
015 |
170-8190
|
Screw 5mm x 35 mm |
6 |
|
|
016 |
170-2352
|
Axle mtg (OBSOLETE) |
1 |
|
|
017 |
170-3987
|
Vacuum motor ring |
1 |
|
|
018 |
170-8191
|
Motor filter (OBSOLETE) |
1 |
|
|
019 |
170-3981
|
Screw 5mm x 40mm |
6 |
Not illustrated |
|
020 |
170-3966
|
Screw 5mm x 20mm |
4 |
|
|
021 |
170-8192
|
Motor support (OBSOLETE) |
1 |
|
|
022 |
170-3989
|
Vacuum motor gasket (OBSOLETE) |
1 |
|
|
023 |
170-4003
|
Star washer (OBSOLETE) |
1 |
|
|
024 |
170-5880
|
Screw m4 x 8 (OBSOLETE) |
1 |
|
|
025a |
170-3990
|
115 v vacuum motor (OBSOLETE) |
1 |
|
|
025b |
170-3991
|
115 Vold carbon brush (OBSOLETE) |
1 |
|
|
026 |
170-3989
|
Vacuum motor gasket (OBSOLETE) |
1 |
|
|
027 |
170-8193
|
Lower ring (OBSOLETE) |
1 |
|
|
028 |
170-8205
|
Motor base (OBSOLETE) |
1 |
|
|
029 |
170-3984
|
Screw 5mm x 30mm (OBSOLETE) |
1 |
|
|
030 |
170-8206
|
Head gasket (OBSOLETE) |
1 |
|
|
N/S |
170-4006
|
Clip (OBSOLETE) |
3 |
Not illustrated |
|
N/S |
170-4005
|
Wire (OBSOLETE) |
2 |
|
|
