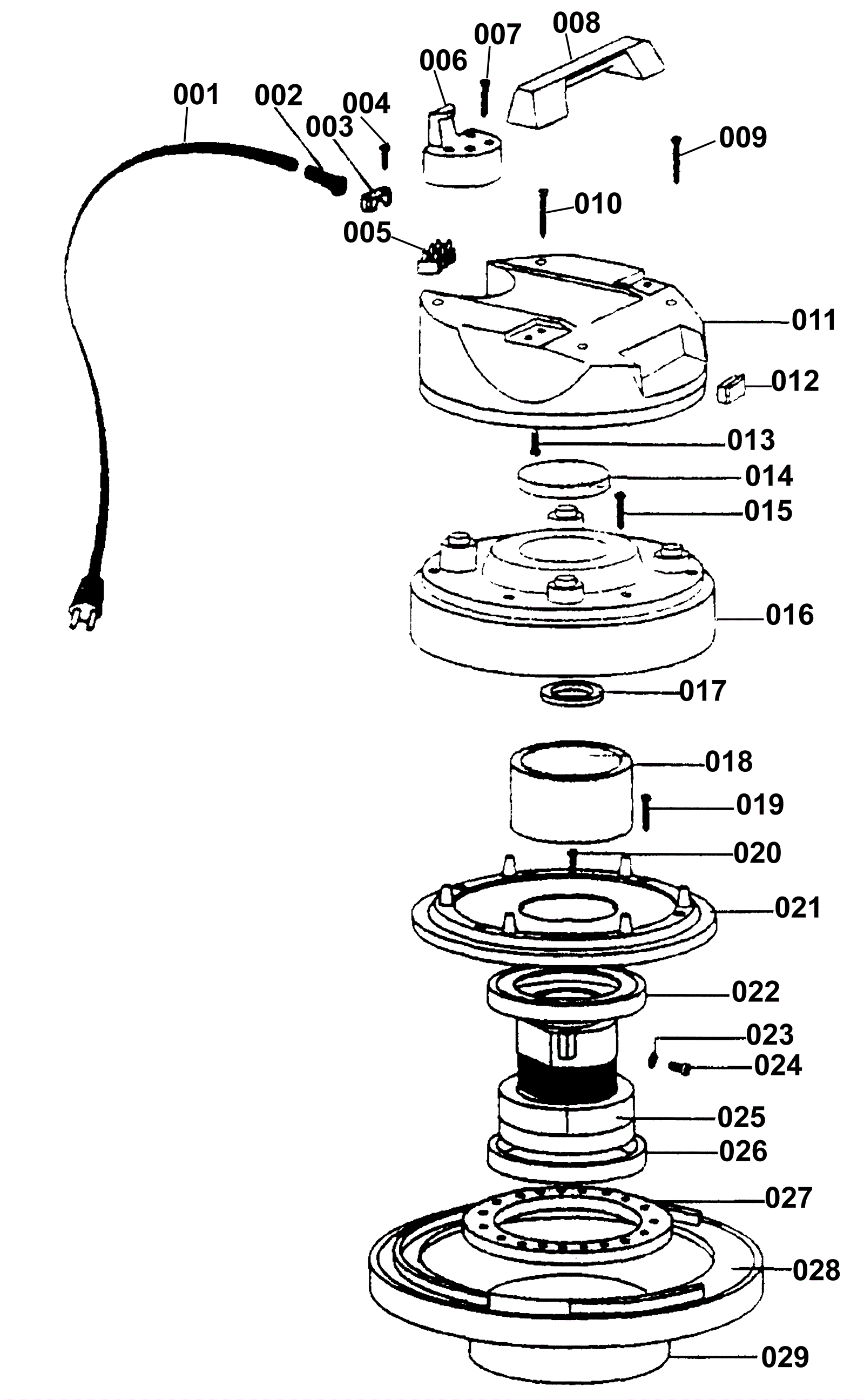

STV15 Head Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-3461 Power cord $209.59 1 usually ships 1-5 days
002 170-3964 Strain relief $12.10 1 usually ships 1-5 days
003 170-3965 Grip cord (OBSOLETE) $5.50 1 usually ships 1-5 days
004 170-3966 Screw 5mm x 20mm $9.13 2 usually ships 1-5 days
005 170-8188 Terminal block (OBSOLETE) $9.24 1 usually ships 1-5 days
006 170-2350 Bracket (OBSOLETE) $20.91 1 usually ships 1-5 days
007 170-3970 Screw 5mm x 35mm $12.83 4 usually ships 1-5 days
008 170-8189 Lift handle (OBSOLETE) $10.56 1 usually ships 1-5 days
009 170-8190 Screw 5mm x 35 mm $10.01 2 usually ships 1-5 days
010 170-8190 Screw 5mm x 35 mm $10.01 2 usually ships 1-5 days
011 170-2351 Tube,Axle Mtg. (OBSOLETE) $5.28 1 usually ships 1-5 days
012 170-6163 On/off switch $34.66 1 usually ships 16-41 days
013 170-3966 Screw 5mm x 20mm $9.13 4 usually ships 1-5 days
014 170-3976 Upper filter $10.52 1 usually ships 16-41 days
015 170-8190 Screw 5mm x 35 mm $10.01 6 usually ships 1-5 days
016 170-2352 Axle mtg (OBSOLETE) $42.65 1 usually ships 1-5 days
017 170-3987 Vacuum motor ring $11.77 1 usually ships 16-41 days
018 170-8191 Motor filter (OBSOLETE) $23.61 1 usually ships 16-41 days
019 170-3981 Screw 5mm x 40mm $9.13 6 usually ships 1-5 days
020 170-3966 Screw 5mm x 20mm $9.13 4 usually ships 1-5 days
021 170-8192 Motor support (OBSOLETE) $33.22 1 usually ships 16-41 days
022 170-3989 Vacuum motor gasket $15.70 1 usually ships 16-41 days
023 170-4003 Star washer (OBSOLETE) $5.50 1 usually ships 1-5 days
024 170-5880 Screw m4 x 8 (OBSOLETE) $7.01 1 usually ships 1-5 days
025a 170-3990 115 v vacuum motor (OBSOLETE) $457.89 1 usually ships 16-41 days
025b 170-3991 115 Vold carbon brush $40.45 1 usually ships 16-41 days
026 170-3989 Vacuum motor gasket $15.70 1 usually ships 16-41 days
027 170-8193 Lower ring (OBSOLETE) $11.44 1 usually ships 16-41 days
028 170-8194 Motor base (OBSOLETE) $78.65 1 usually ships 1-5 days
029 170-3849 Gasket $82.93 1 usually ships 1-5 days
N/S 170-4005 Wire (OBSOLETE) $2.20 2 Not illustrated usually ships 1-5 days
N/S 170-4006 Clip (OBSOLETE) $0.99 3 Not illustrated usually ships 1-5 days
