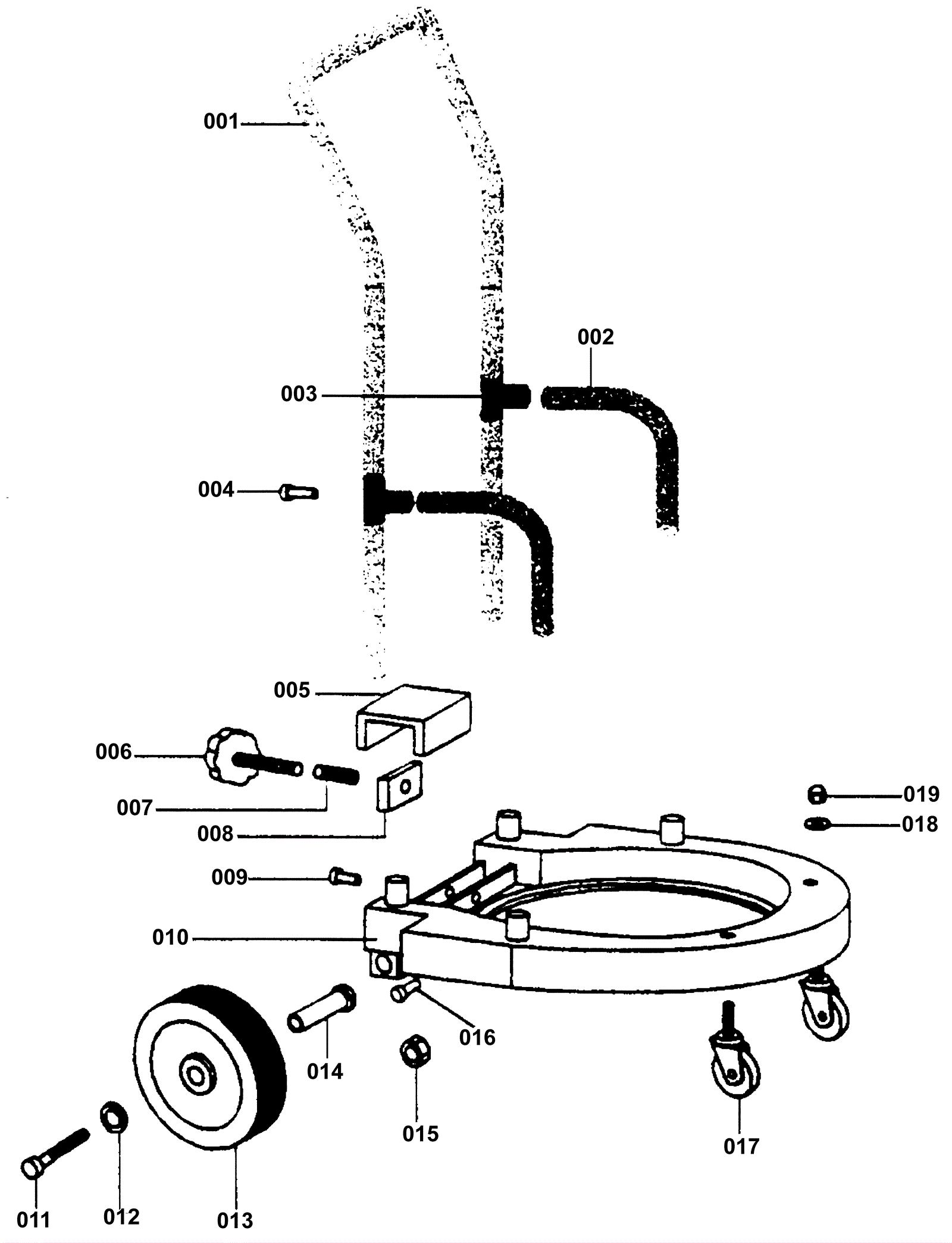

STV15 Carriage Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-8173 Transport handle stainless steel (OBSOLETE) $72.59 1 usually ships 1-5 days
002 170-8174 Support brace (OBSOLETE) $14.19 2 usually ships 1-5 days
003 170-8175 Transpoor handle tee (OBSOLETE) $7.01 2 usually ships 1-5 days
004 170-4020 Rivet $11.69 2 usually ships 1-5 days
005 170-8176 Tank wedge (OBSOLETE) $12.12 1 usually ships 1-5 days
006 170-8177 Tank knob (OBSOLETE) $32.45 1 usually ships 1-5 days
007 170-8178 Tank anchor (OBSOLETE) $7.01 1 usually ships 1-5 days
008 170-8179 Lock nut plate (OBSOLETE) $7.01 1 usually ships 1-5 days
009 170-4020 Rivet $11.69 2 usually ships 1-5 days
010 170-8180 Carriage base (OBSOLETE) $177.10 1 usually ships 1-5 days
011 170-8181 Bolt 12 mm x 140 mm (OBSOLETE) $7.48 2 usually ships 1-5 days
012 170-5602 Washer $8.07 2 ships same day
013 170-3297 Transport wheel $33.00 2 usually ships 16-41 days
014 170-8182 Wheel bushing $10.01 2 usually ships 1-5 days
015 170-8183 Nut 12 mm hex (OBSOLETE) Call for price 2 usually ships 1-5 days
016 170-4020 Rivet $11.69 2 usually ships 1-5 days
017 170-3296 Caster $42.85 2 usually ships 1-5 days
018 170-8184 Washer $3.45 6 usually ships 1-5 days
019 170-8185 Nut 10 mm acorn (OBSOLETE) $7.01 2 usually ships 1-5 days
