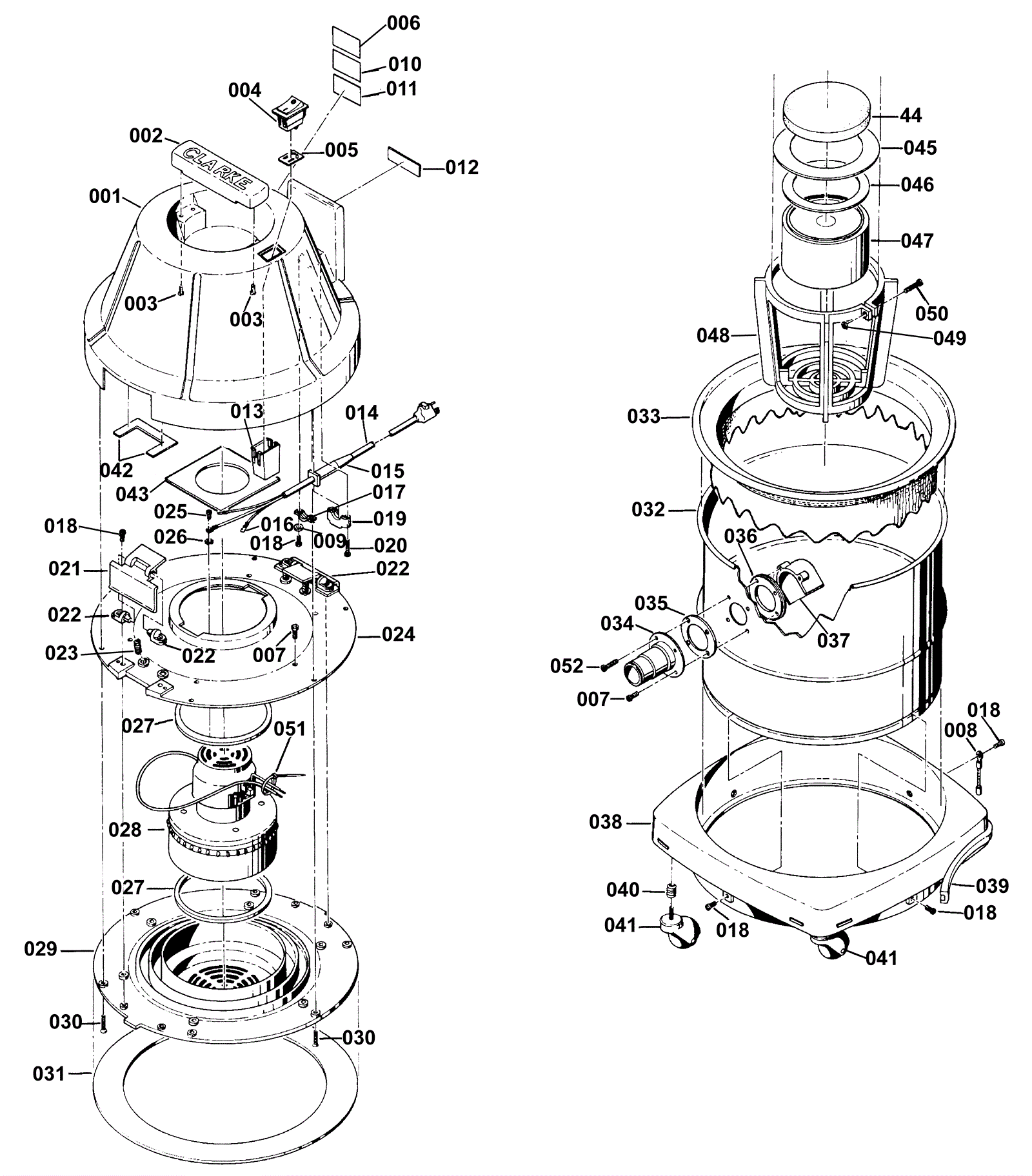

| # | Part | Description |
Req | Notes | Availability |
|---|
002 |
170-3834
|
Handle assembly (OBSOLETE) |
1 |
|
|
008 |
170-3837
|
Static strap (OBSOLETE) |
1 |
|
|
016 |
170-8208
|
Terminal (OBSOLETE) |
2 |
|
|
019 |
170-8056
|
Strain relief clamp (OBSOLETE) |
1 |
|
|
020 |
272-8907
|
Screw #10-16 x 1 (OBSOLETE) |
2 |
|
|
022 |
170-8066
|
Pivot bracket (OBSOLETE) |
4 |
|
|
025 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
|
028 |
170-3313
|
Vac motor 120Volt |
1 |
|
|
029 |
170-8210
|
Adapter (OBSOLETE) |
1 |
|
|
030 |
170-3850
|
Screw flat head 10-16 x 1 1/4 (OBSOLETE) |
6 |
|
|
031 |
170-8211
|
Gasket (OBSOLETE) |
1 |
|
|
032 |
170-8212
|
Tank (OBSOLETE) |
1 |
|
|
035 |
170-6196
|
Swivel Coupling Gasket (OBSOLETE) |
1 |
|
|
048 |
170-3854
|
Cage (OBSOLETE) |
1 |
|
|
049 |
170-3855
|
Nut 10-24 elastic stop (OBSOLETE) |
1 |
|
|
050 |
999-6706
|
Screw 10-24 x 1 1/4 round head slotted brass |
1 |
|
|
051 |
170-8007
|
Nylon wire tie |
2 |
|
|
