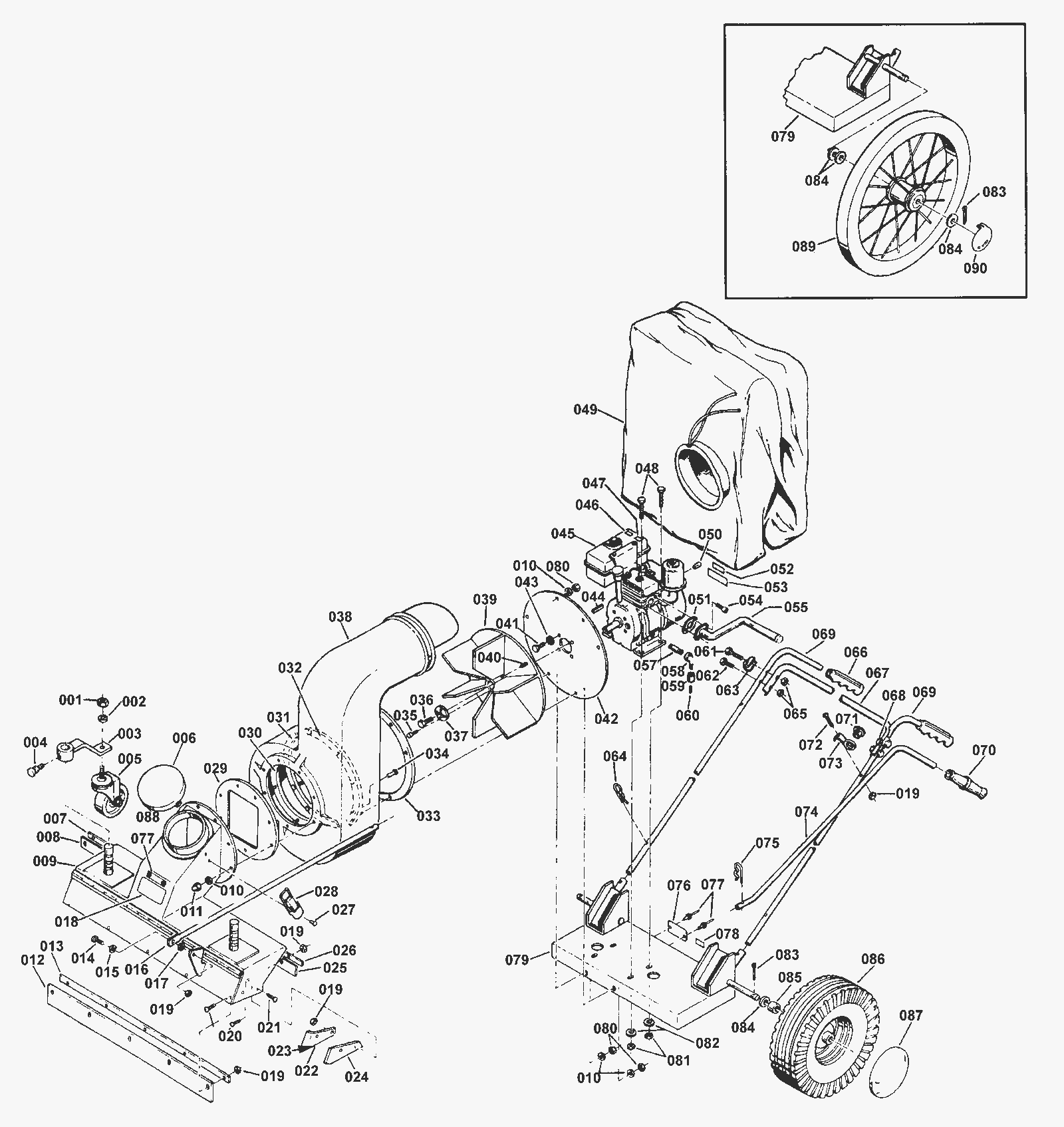

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0050
|
Nut 1/2-13 hex jam plain finish |
2 |
|
|
002 |
999-0126
|
Washer 1/2 split lock |
2 |
|
|
003 |
170-7475
|
Caster support assembly bracket (OBSOLETE) |
2 |
|
|
004 |
170-7476
|
Disconnect pin assembly (OBSOLETE) |
2 |
|
|
005 |
170-7477
|
Front support caster (OBSOLETE) |
2 |
|
|
006 |
170-7478
|
Blue intake cover (OBSOLETE) |
1 |
|
|
007 |
170-7479
|
Rear right clamp (OBSOLETE) |
1 |
|
|
008 |
170-7480
|
Right scraper (OBSOLETE) |
1 |
|
|
009 |
170-7481
|
Blue intake housing assembly (OBSOLETE) |
1 |
|
|
010 |
999-0016
|
Washer 1/4 flat plain finish |
15 |
|
|
011 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
7 |
|
|
012 |
170-7482
|
Squeegee blade door |
1 |
|
|
013 |
170-7483
|
Squeegee blade clamp door (OBSOLETE) |
1 |
|
|
014 |
999-1191
|
Screw 10-24 x 5/8 round head slotted stainless steel |
1 |
|
|
015 |
999-0006
|
Washer 3/16 flat zinc plated |
1 |
|
|
016 |
170-7484
|
Lower handle (OBSOLETE) |
1 |
|
|
017 |
170-7485
|
Handle spacer |
1 |
|
|
018 |
170-7486
|
Label (OBSOLETE) |
1 |
|
|
019 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
16 |
|
|
020 |
999-0541
|
Screw 10-24 x 3/4 round head slotted stainless steel |
10 |
|
|
021 |
999-1191
|
Screw 10-24 x 5/8 round head slotted stainless steel |
4 |
|
|
022 |
170-7487
|
Right sheild clamp (OBSOLETE) |
1 |
|
|
023 |
170-7488
|
Left shield clamp |
1 |
|
|
024 |
170-7489
|
Shield |
2 |
|
|
025 |
170-7490
|
Left scraper |
1 |
|
|
026 |
170-7491
|
Left rear clamp (OBSOLETE) |
1 |
|
|
027 |
170-7163
|
Aluminum rivet |
4 |
|
|
028 |
170-2184
|
Clamp (OBSOLETE) |
2 |
|
|
029 |
170-7492
|
Intake housing flange gasket (OBSOLETE) |
1 |
|
|
031 |
170-7493
|
Retainer assembly (OBSOLETE) |
1 |
|
|
032 |
170-7494
|
Retainer assembly flange plate (OBSOLETE) |
1 |
|
|
033 |
170-7495
|
Impeller housing gasket (OBSOLETE) |
1 |
|
|
034 |
170-0775
|
1/8 inch rivet pop aluminum |
5 |
|
|
035 |
999-0322
|
Screw 10-24 x 1/2 socket head alloy plain finish |
1 |
|
|
036a |
999-1192
|
Screw 3/8-24 x 3/4 hex head stainless steel |
1 |
|
|
036b |
999-1193
|
Bolt 7/16-20 x 1 hex head stainless steel |
1 |
|
|
037a |
170-7496
|
Special clamp washer (OBSOLETE) |
1 |
|
|
037b |
170-7497
|
Honda clamp washer (OBSOLETE) |
1 |
|
|
038 |
170-7498
|
Blue housing impeller (OBSOLETE) |
1 |
|
|
039a |
170-7499
|
6hp tecumseh impeller (OBSOLETE) |
1 |
|
|
039b |
170-7500
|
Honda impeller (OBSOLETE) |
1 |
|
|
040 |
999-0095
|
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
1 |
|
|
041 |
999-1194
|
Screw 5/16-24 x 1 1/4 hex head stainless steel |
4 |
|
|
042 |
170-7501
|
Flange plate assembly (OBSOLETE) |
1 |
|
|
043 |
999-0028
|
Washer 5/16 split lock plain finish |
4 |
|
|
044 |
170-7502
|
Key 1/4 x 1/4 x 2 1/4 (OBSOLETE) |
1 |
|
|
045a |
170-7503
|
5.5 hp Tecumseh gas engine (OBSOLETE) |
1 |
|
|
045b |
170-7504
|
5.5 hp Honda gas engine (OBSOLETE) |
1 |
|
|
046 |
170-2425
|
Caution label (OBSOLETE) |
1 |
|
|
047 |
170-6133
|
Caution label |
1 |
|
|
048a |
999-0172
|
Screw 6-32 x 1 1/8 round head slotted zinc plated |
4 |
|
|
048b |
999-0552
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
4 |
|
|
049 |
170-7505
|
Filter bag (black) (OBSOLETE) |
1 |
|
|
050 |
170-7506
|
Throttle control knob (OBSOLETE) |
1 |
|
|
051 |
170-7507
|
Exhaust pipe gasket |
1 |
|
|
052 |
170-6134
|
Warning Label (OBSOLETE) |
1 |
|
|
053 |
N/A
|
Not available |
1 |
(Warning label) |
|
055 |
170-7508
|
Exhaust pipe extension assembly (OBSOLETE) |
1 |
|
|
057 |
170-7509
|
Nipple 1/4-18 x 1 1/2 short (OBSOLETE) |
1 |
|
|
058 |
170-7510
|
Elbow 90 degree 1/4 NPT street (OBSOLETE) |
1 |
|
|
059 |
170-7511
|
Coupling 1/4 NPT (OBSOLETE) |
1 |
|
|
060 |
N/A
|
Not available |
1 |
Drain plug - this is part of the engine. |
|
061 |
999-1064
|
Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated |
2 |
|
|
062 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
2 |
|
|
063 |
170-7512
|
Bag right hook (OBSOLETE) |
1 |
|
|
064 |
170-7513
|
Locking pin (OBSOLETE) |
2 |
|
|
065 |
170-7514
|
Nut 1/4-20 stop |
4 |
|
|
066 |
170-7515
|
Black handle grip (OBSOLETE) |
2 |
|
|
067 |
170-7516
|
Handle brace (OBSOLETE) |
1 |
|
|
068 |
170-7517
|
Left bag hook (OBSOLETE) |
1 |
|
|
069 |
170-7518
|
Handle (OBSOLETE) |
2 |
|
|
070 |
170-7519
|
Black handle grip 5 x 3/4 (OBSOLETE) |
1 |
|
|
071 |
170-0582
|
Snap bushing (OBSOLETE) |
1 |
|
|
072 |
999-1027
|
Screw 10-24 x 1 1/4 round head phillips stainless steel |
1 |
|
|
073 |
170-7520
|
Handle Guide (OBSOLETE) |
1 |
|
|
074 |
170-7521
|
Upper handle (OBSOLETE) |
1 |
|
|
075 |
170-7522
|
Locking pin (OBSOLETE) |
1 |
|
|
076 |
N/A
|
Not available |
1 |
Serial plate |
|
077 |
170-7523
|
Rivit 1/8 pop |
4 |
|
|
078 |
170-3503
|
Inspection label (OBSOLETE) |
1 |
|
|
079a |
170-7524
|
Small wheel (OBSOLETE) |
1 |
Available only in frame assembly. |
|
079b |
170-7525
|
Large wheel (OBSOLETE) |
1 |
Available only in frame assembly. |
|
080 |
999-0190
|
Nut 1/4-20 hex plain finish |
8 |
|
|
081 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
082 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
|
|
|
083 |
997-2505
|
Cotter pin |
2 |
|
|
084a |
999-0630
|
Washer 3/4 SAE flat |
2 |
|
|
085 |
170-7526
|
Wheel spacer (OBSOLETE) |
2 |
|
|
086 |
170-7527
|
Small wide wheel assembly (OBSOLETE) |
2 |
|
|
087 |
170-2421
|
Hubcap (with retainer) (OBSOLETE) |
2 |
|
|
088 |
170-7528
|
Caution label (OBSOLETE) |
1 |
|
|
089 |
170-7529
|
Large bicycle trype wheel (OBSOLETE) |
2 |
|
|
090 |
170-7530
|
Hub cap (OBSOLETE) |
2 |
|
|
