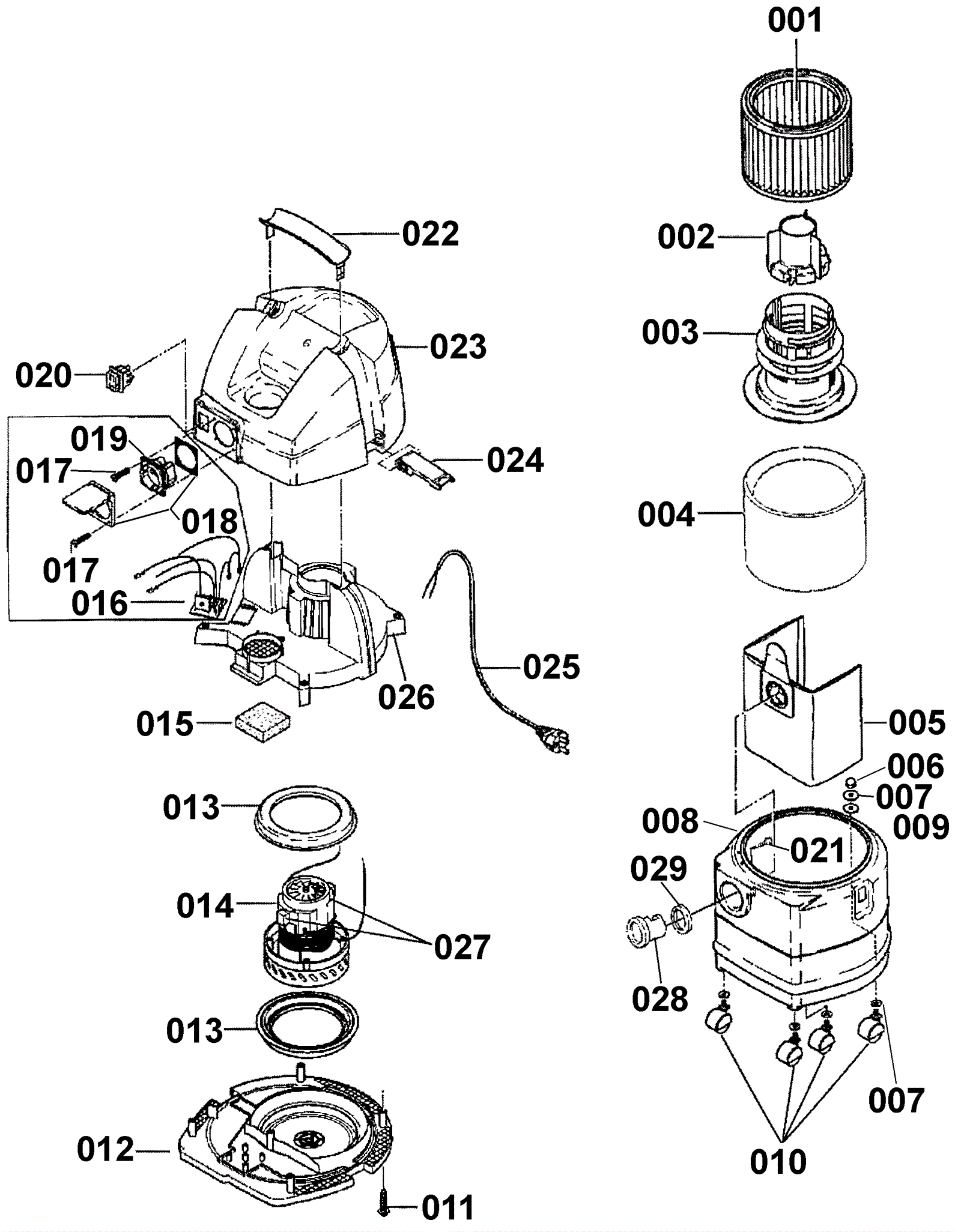

CTV20 Head Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-2053 Permanent filter $221.69 1 usually ships 4-15 days
002 170-3586 Float (OBSOLETE) $17.49 1 usually ships 16-41 days
003 170-3586 Float (OBSOLETE) $17.49 1 usually ships 16-41 days
004 170-3584 Cloth filter $53.83 1 usually ships 1-5 days
005a 170-3640 7 gallon filter bags (pkg of 5) $87.44 1 (7gal) usually ships 16-41 days
005b 170-2054 Filter bags $19.15 1 (15-20gal) usually ships 1-5 days
006 170-3641 Nut cap (OBSOLETE) $4.77 4 usually ships 1-5 days
007 170-3642 U-Disc 8.4mm zinc (OBSOLETE) $0.99 4 usually ships 1-5 days
008 170-3643 Vacuum tank 7gal (OBSOLETE) $67.84 1 usually ships 1-5 days
009 170-3644 Washer (OBSOLETE) $5.58 4 usually ships 1-5 days
010 170-3645 Caster 4pk (OBSOLETE) $9.15 4 usually ships 1-5 days
011 N/A Not available Call for price 5 (Screw M5x20 phillips self threading) usually ships 3-26 days
012a 170-3580 Housing bottom single stage (OBSOLETE) $15.20 usually ships 1-5 days
012b 170-3581 Housing bottom 2-stage (OBSOLETE) $11.41 1 usually ships 1-5 days
013 170-3575 Motor ring (OBSOLETE) $13.31 2 usually ships 16-41 days
014a 170-3646 Vac motor 120v single stage (OBSOLETE) $351.19 usually ships 16-41 days
014b 170-6234 120V vacuum motor two stage $605.06 1 usually ships 16-41 days
014c 170-3646 Vac motor 120v single stage (OBSOLETE) $351.19 1 usually ships 16-41 days
014d 170-6234 120V vacuum motor two stage $605.06 1 usually ships 16-41 days
015a 170-3648 Foam piece (OBSOLETE) $10.45 1 usually ships 16-41 days
015b 170-3648 Foam piece (OBSOLETE) $10.45 1 usually ships 16-41 days
016 170-2346 AUTO START, CTV 7 AS (OBSOLETE) $116.18 1 usually ships 1-5 days
017 170-3649 Screw $10.23 4 usually ships 1-5 days
018 472-0173 COVER CHASSIS KIT $52.22 1 usually ships 16-41 days
019 170-3651 Socket plug $64.23 1 usually ships 1-5 days
020a 170-2345 Switch Aero 400/600 $31.83 usually ships 1-5 days
020b N/A Not available Call for price 1 (Switch) usually ships 3-26 days
021 N/A Not available Call for price 3 (Screw M3 1/2x.6x14 hex shoulder) usually ships 3-26 days
022 170-3653 Handle (OBSOLETE) $14.75 1 usually ships 1-5 days
023 170-3571 Top cover (OBSOLETE) $7.01 1 usually ships 1-5 days
024 170-2052 Cover clamp (OBSOLETE) $17.60 2 usually ships 16-41 days
025a 170-3654 Power cord (OBSOLETE) $48.11 1 usually ships 1-5 days
025b 170-3461 Power cord $209.59 1 usually ships 1-5 days
026 170-3572 Upper housing (OBSOLETE) $6.53 1 usually ships 1-5 days
027a 170-3655 Carbon brush (OBSOLETE) $23.76 1 usually ships 1-5 days
027b 170-3578 Carbon brush for motor 6181600 (OBSOLETE) $10.10 usually ships 1-5 days
027c 170-3579 Carbon brush for motor 6181630 (OBSOLETE) $11.76 1 usually ships 1-5 days
028 170-3593 Tank inlet (OBSOLETE) $5.94 1 usually ships 1-5 days
029 170-3594 Tank inlet seal (OBSOLETE) $5.94 1 usually ships 1-5 days
N/S 170-3583 Deflector (perm. filter) (OBSOLETE) $11.30 1 usually ships 1-5 days
N/S N/A Not available Call for price 1 Spacer ring usually ships 3-26 days
