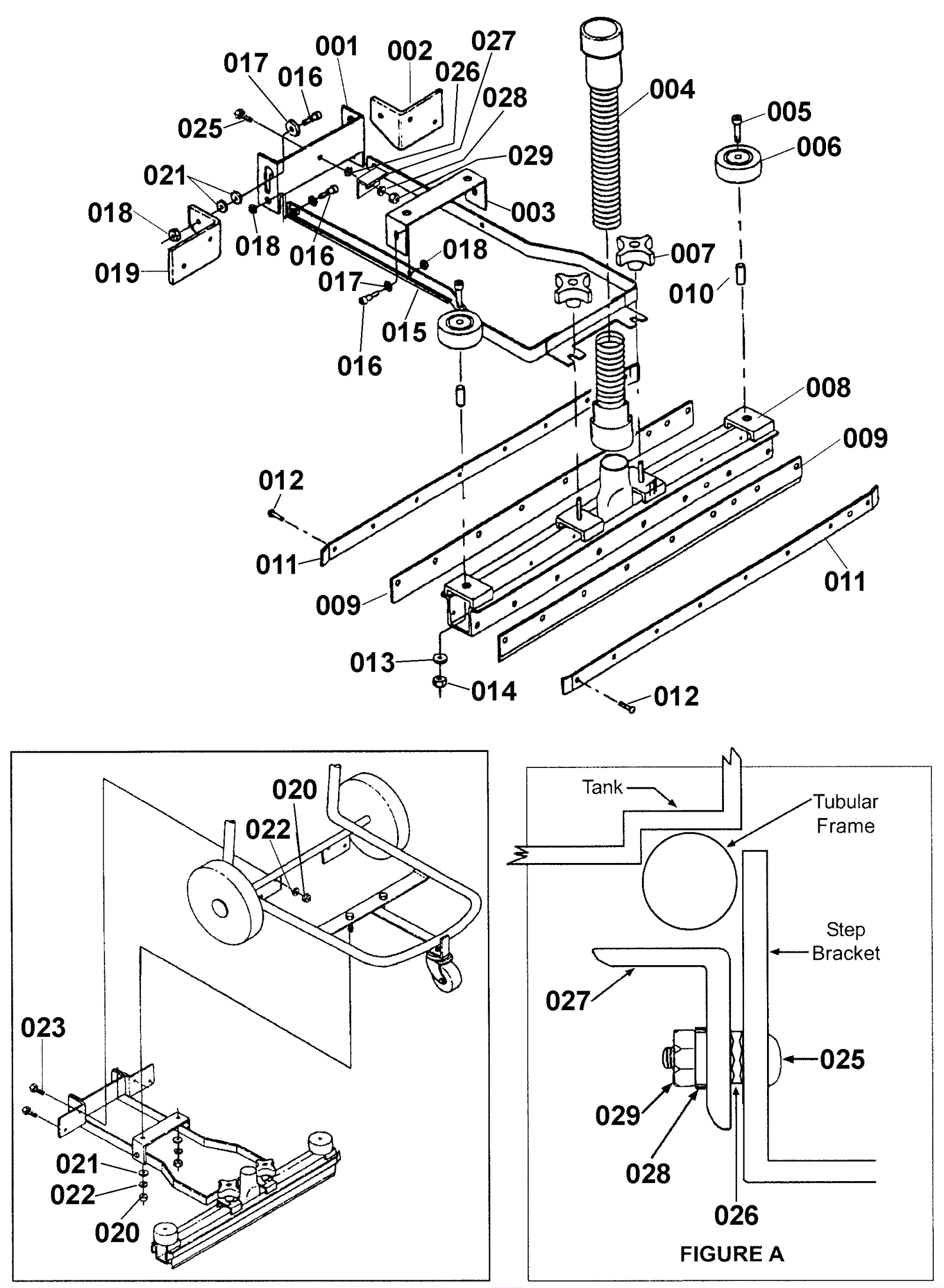

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-3602
|
Squeegee lift pedal (OBSOLETE) |
1 |
|
|
002 |
170-3603
|
Left pedal support (OBSOLETE) |
1 |
|
|
003 |
170-3604
|
Lift support (OBSOLETE) |
1 |
|
|
004 |
170-3605
|
Squeegee hose (OBSOLETE) |
1 |
|
|
005 |
N/A
|
Not available |
2 |
(Screw M6x1x40 hex shoulder) |
|
006 |
170-0165
|
Wheel (OBSOLETE) |
2 |
|
|
007 |
170-4587
|
Knob (OBSOLETE) |
2 |
|
|
008 |
170-3608
|
Squeegee frame weldment (OBSOLETE) |
1 |
|
|
009 |
170-3609
|
Squeegee blade ribbed urethane |
2 |
|
|
010 |
170-3610
|
Wheel bushing (OBSOLETE) |
2 |
|
|
011 |
170-3611
|
Squeegee blade retainer (OBSOLETE) |
2 |
|
|
012 |
999-1090
|
Screw M5-.8 x 10mm pan head phillips zinc plated |
18 |
|
|
013 |
N/A
|
Not available |
2 |
(Washer M6.4x12 1/2x1 1/2) |
|
014 |
N/A
|
Not available |
2 |
(Nut M6 lock) |
|
015 |
170-3612
|
Squeegee lift weldment (OBSOLETE) |
1 |
|
|
016 |
N/A
|
Not available |
6 |
(Bolt 1/2x1 1/4x22mm shoulder) |
|
017 |
N/A
|
Not available |
6 |
(Washer M10 1/2x21x1 1/2) |
|
018 |
N/A
|
Not available |
6 |
(Nut M8 lock) |
|
019 |
170-3613
|
Right pedal support (OBSOLETE) |
1 |
|
|
020 |
N/A
|
Not available |
6 |
(Nut M8 hex) |
|
021 |
N/A
|
Not available |
6 |
(Washer M8.4x17x1 1/2) |
|
022 |
999-0150
|
Washer #8 medium split lock |
6 |
|
|
023 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
6 |
|
|
024 |
170-3614
|
Squeegee assembly (OBSOLETE) |
1 |
|
|
025 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
1 |
|
|
026 |
N/A
|
Not available |
1 |
(Washer M8 star) |
|
027 |
170-3616
|
Bracket (OBSOLETE) |
1 |
|
|
028 |
N/A
|
Not available |
1 |
(Washer M8 flat) |
|
029 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
