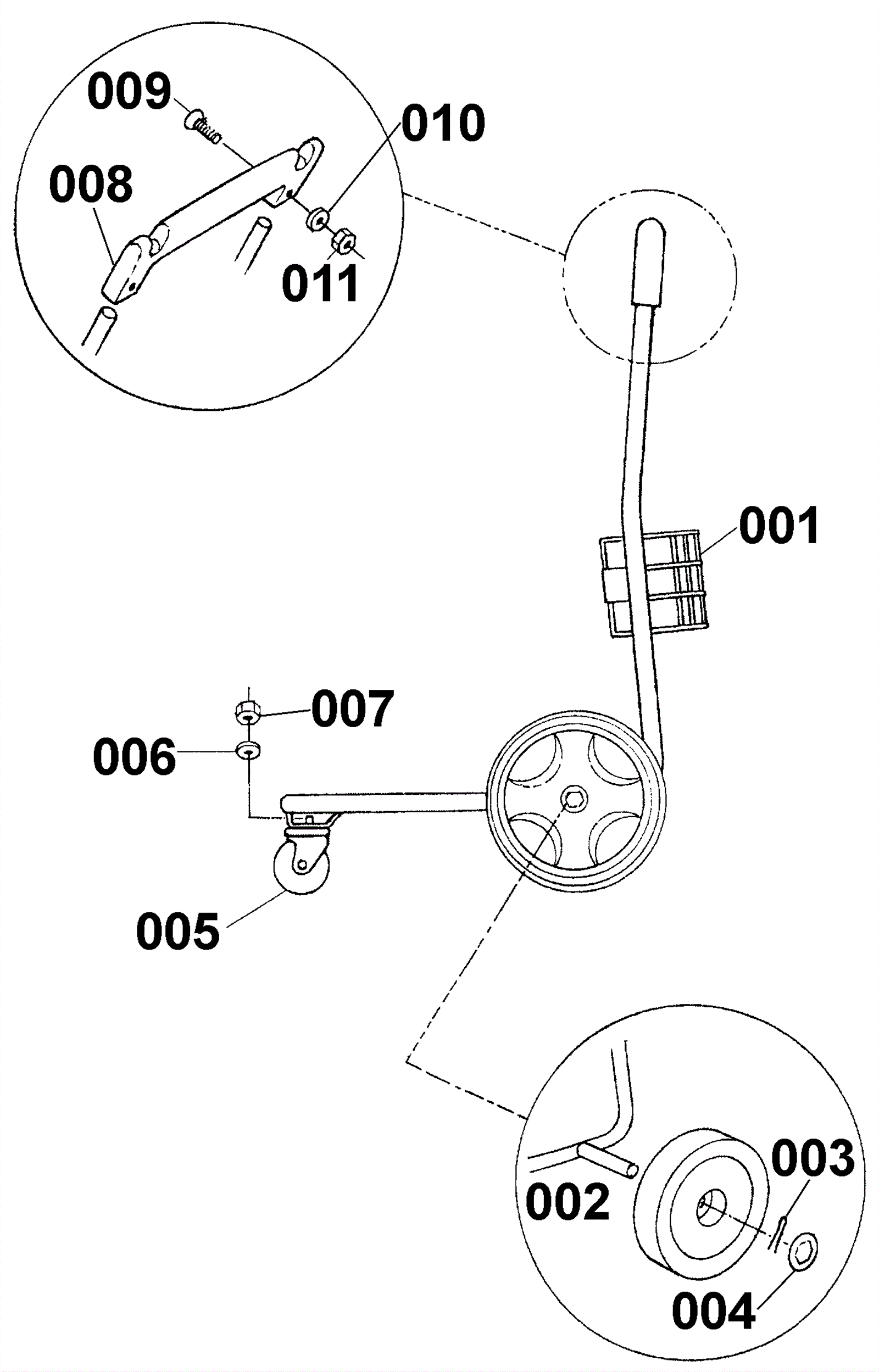

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
170-3595
|
Frame assembly (OBSOLETE) |
1 |
15gal |
|
001b |
170-3596
|
Frame assembly (OBSOLETE) |
1 |
20gal |
|
002 |
170-3597
|
Wheel (OBSOLETE) |
2 |
|
|
003 |
170-3598
|
Frame retainer (OBSOLETE) |
2 |
|
|
004 |
170-3599
|
Cover retainer (OBSOLETE) |
2 |
|
|
005 |
170-3600
|
Caster (OBSOLETE) |
1 |
|
|
006 |
N/A
|
Not available |
1 |
(Washer M8.4x17x1 1/2) |
|
007 |
N/A
|
Not available |
1 |
(Nut M8 hex) |
|
008 |
170-3601
|
Handle bar (OBSOLETE) |
1 |
|
|
009 |
N/A
|
Not available |
2 |
(Screw M6x40 self threading) |
|
010 |
N/A
|
Not available |
2 |
(Washer M6.4x12 1/2x1 1/2) |
|
011 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
