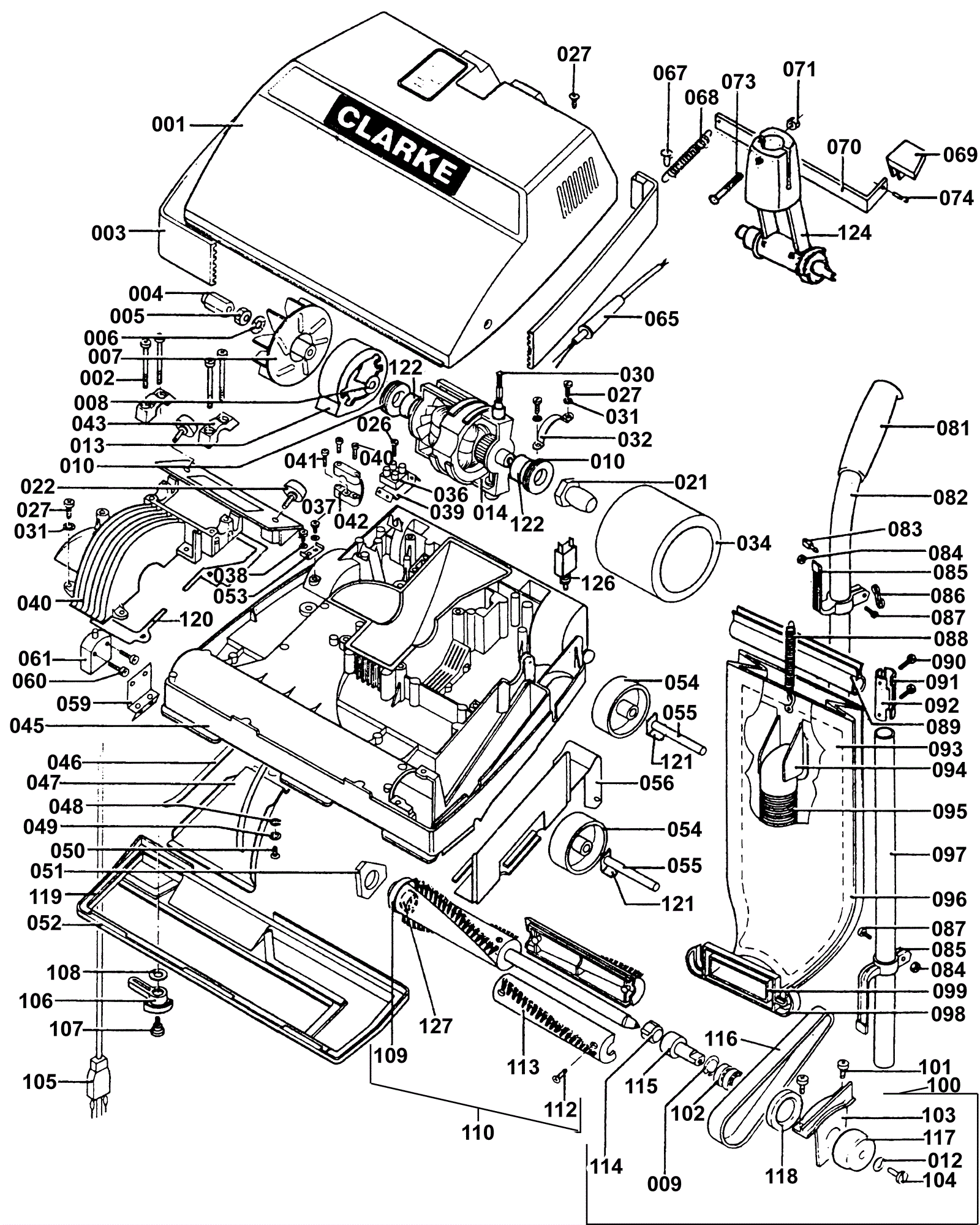

Entire Assembly

#PartDescription ReqNotesAvailability
001 170-7202 Gray cover (OBSOLETE) 1
002 999-1179 Screw M6-1 x 65mm hex head zinc 2
003 170-3567 Bumper (OBSOLETE) 1
004 170-7203 Nut plastic (OBSOLETE) 1
005 999-1185 Nut M7-1 hex coarse thread zinc 1
006 170-7207 Washer 1/4 NOM plain 1
007 170-2222 Impeller (OBSOLETE) 1
008 170-7204 Washer (OBSOLETE) 1
009 375-7453 Retaining ring (OBSOLETE) 1
010 170-7206 Rubber mount (OBSOLETE) 2
012 372-1780 Washer (OBSOLETE) 1
013 170-3569 Cooling fan chamber (OBSOLETE) 1
014 170-3459 Motor 1
021 170-3333 Belt drive shaft (OBSOLETE) 1
022 170-7208 Screw wing 2
026 999-1180 Screw M3-.5 x 16mm pan head stainless steel 2
027 999-0807 Screw M6-1 x 10mm flat head phillips 2
030 170-3662 Carbon brush 2
031 999-0017 Washer 1/4 external star lock 8
032 170-3658 Clamp (OBSOLETE) 1
034 170-9981 Foam ring 1
036 170-4611 Terminal block (OBSOLETE) 1
037 999-0530 Screw M4-.7 x 8mm pan head slotted zinc 2
038 N/A Not available 8
039 170-7241 Insulator (OBSOLETE) 1
040 999-1180 Screw M3-.5 x 16mm pan head stainless steel 2
041 170-7244 Screw M3 x 8 1
042 170-9942 Strain relief (OBSOLETE) 1
043 170-7242 Strap clamp (OBSOLETE) 4
044 170-7209 Blower housing (OBSOLETE) 1
045 170-7210 Main housing (OBSOLETE) 1
046 170-7243 Gasket (OBSOLETE) 2
047 170-7211 Plate 1
048 170-5072 Security disc 1
049 170-7212 Washer (OBSOLETE) 1
050 170-7247 Screw flat head (OBSOLETE) 1
051 170-7213 Brush end cap 1
052 170-7214 Nozzle plate 1
053 170-7248 Retainer (OBSOLETE) 1
054 170-5076 Rear wheel 4
055 170-7215 Axle (OBSOLETE) 4
056 170-7232 Hinged cover (OBSOLETE) 1
059 170-7233 Insulation (OBSOLETE) 1
060 170-7234 Screw M4-18 (OBSOLETE) 2
061 270-0005 one pole switch 1
065 170-3566 Strain relief 1
067 170-2890 Plastic rivet (OBSOLETE) 1
068 170-2891 Tension spring (OBSOLETE) 1
069 170-2892 Foot pedal (OBSOLETE) 1
070 170-2093 Brush lift arm assembly (OBSOLETE) 1
071 999-0439 Nut M6-1 hex coarse thread 1
072 170-2047 Handle pivot (OBSOLETE) 1
073 170-7216 Screw M6-40 (OBSOLETE) 1
074 170-7246 Roll pin (OBSOLETE) 2
081 170-7217 Handle grip (OBSOLETE) 1
082 170-7218 Upper handle (OBSOLETE) 1
083 170-7219 Cord holder 1
084 170-8076 Nut M5 x .8 hex jam 2
085 170-2894 Cord hook 2
086 170-7220 Bag clip (OBSOLETE) 1
087 999-1182 Screw M5-.8 x 16mm pan head slotted stainless steel 2
088 170-7222 Tention spring 1
089 170-7221 Dust bag clamp 1
090 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
091 170-7235 Threaded connector (OBSOLETE) 1
092 170-7236 Connector (OBSOLETE) 1
093 170-2046 Vacuum bags pkg of 6 1
094 170-7223 Elbow 1
095 170-7224 Hose 1
096 170-6208 Dust bag (OBSOLETE) 1
097 170-7225 Lower handle (OBSOLETE) 1
098 170-7226 Bag adapter (OBSOLETE) 1
099 170-7227 Vacuum bag gasket (OBSOLETE) 1
100 170-3335 Housing bearing assembly (OBSOLETE) 1
101 999-0807 Screw M6-1 x 10mm flat head phillips 2
102 170-3335 Housing bearing assembly (OBSOLETE) 2
103 170-7237 Bearing housing (OBSOLETE) 1
104 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 1
105a 991-5007 18/3 replacement power cord 50 foot (black) 1
105b 991-5008 18/3 replacement power cord 50 foot (beige) 1 (NON-OEM)
106 170-7238 Clamp (OBSOLETE) 2
107 170-7340 Squeegee plate 2
108 170-7239 Washer wave (OBSOLETE) 2
109 170-7228 Thread gaurd w/ bearing (OBSOLETE) 1
110 170-2045 Brush assembly 1
112 999-1184 Screw M4-.7 x 12mm oval head stainless steel 8
113 170-3334 Brush segment 4
114 170-3335 Housing bearing assembly (OBSOLETE) 1
115 170-3335 Housing bearing assembly (OBSOLETE) 1
116 170-2044 Belt 1
117 170-3335 Housing bearing assembly (OBSOLETE) 1
118 170-3335 Housing bearing assembly (OBSOLETE) 1
119 170-7229 Gasket set (OBSOLETE) 1
120 170-3687 Blower housing gasket 1
121 170-7230 Locking wheel axle clip (OBSOLETE) 4
122 170-0362 Radial ball bearing 2
124 170-2047 Handle pivot (OBSOLETE) 1
126 170-7231 Circuit breaker (OBSOLETE) 1
127 170-0362 Radial ball bearing 1
