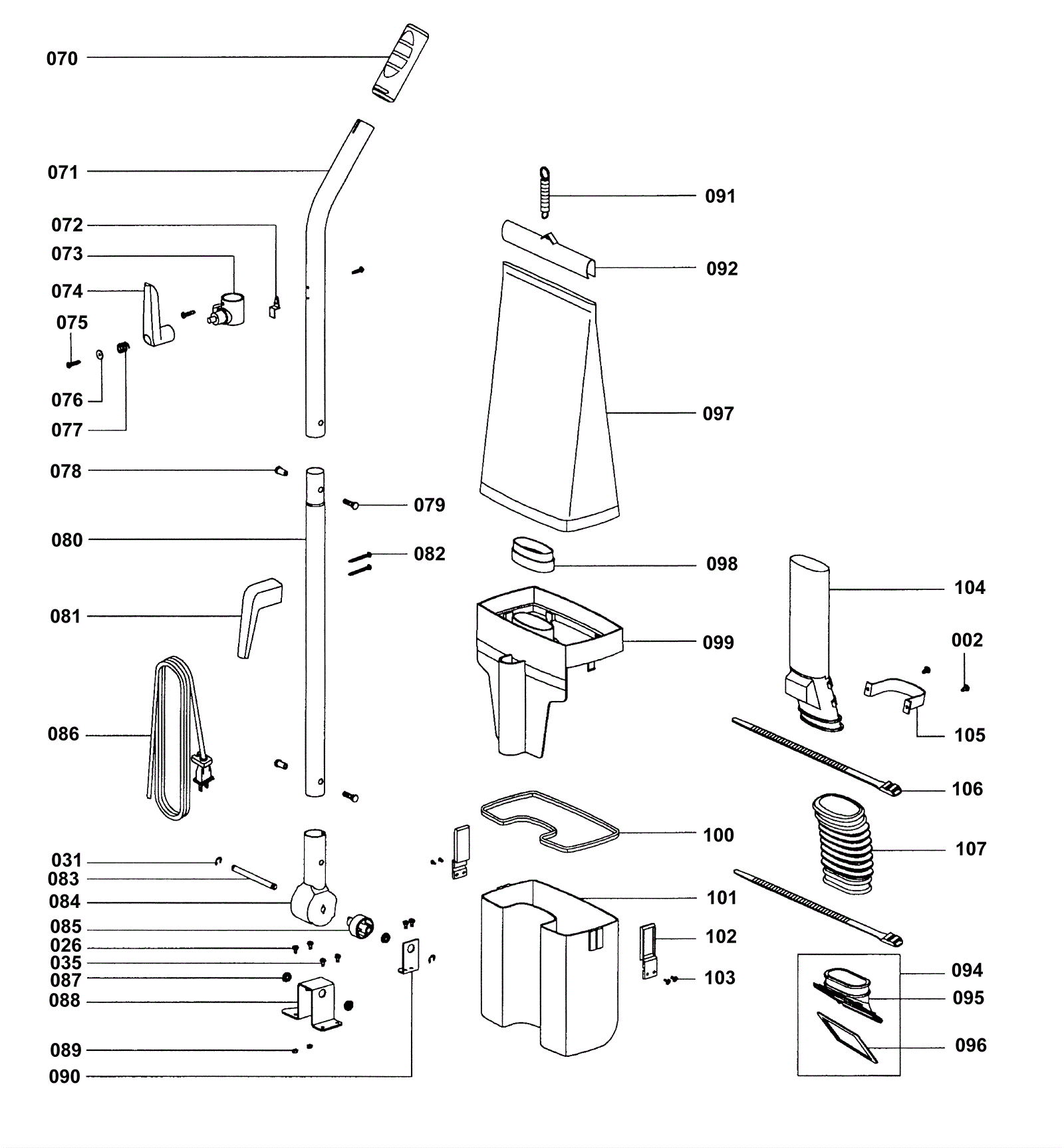

SYMPHONY16 Collector Cup Assembly

#PartDescriptionPriceReqNotesAvailability
002 170-5128 Screw 4mm x 10mm $9.27 1 usually ships 1-5 days
026 170-5874 Screw m4 x 15 $10.01 23 usually ships 1-5 days
031 N/A Not available Call for price 5 E-clip usually ships 3-26 days
035 170-5880 Screw m4 x 8 (OBSOLETE) $7.01 3 usually ships 1-5 days
070 170-5910 Handle grip (OBSOLETE) $7.37 1 usually ships 1-5 days
071 170-5911 Upper handle assembly (OBSOLETE) $18.04 1 usually ships 1-5 days
072 170-5912 Bag hook (OBSOLETE) $7.37 1 usually ships 1-5 days
073 170-5913 Bag retainer $9.13 1 usually ships 1-5 days
074 170-5914 Upper cord retainer (OBSOLETE) $7.92 1 usually ships 1-5 days
075 N/A Not available Call for price 3 Screw usually ships 3-26 days
076 170-1176 Screw M6 x 12 (OBSOLETE) $0.99 1 usually ships 1-5 days
077 170-7186 Spacer $10.52 2 usually ships 1-5 days
078 170-5915 Handle nut (OBSOLETE) $7.37 2 usually ships 1-5 days
079 170-5916 Handle screw (OBSOLETE) $7.15 2 usually ships 1-5 days
080 170-5917 Lower handle assembly (OBSOLETE) $22.88 1 usually ships 1-5 days
081 170-5918 Lower cord retainer (OBSOLETE) $7.37 1 usually ships 1-5 days
082 N/A Not available Call for price 2 Screw usually ships 3-26 days
083 170-5919 Handle socket seat axle (OBSOLETE) $7.37 1 usually ships 1-5 days
084 N/A Not available Call for price 1 (Handle tube) usually ships 3-26 days
085 170-5921 Handle socket cam (OBSOLETE) $7.01 1 usually ships 1-5 days
086a 272-0592 18/3 power cord 50 foot (yellow) $48.32 1 usually ships 16-41 days
086b 991-5007 18/3 replacement power cord 50 foot (black) $32.10 1 (NON-OEM) ships same day
087 N/A Not available Call for price 3 (Handle bushing) usually ships 3-26 days
088 170-5923 Handle socket seat (OBSOLETE) $7.37 1 usually ships 1-5 days
089 170-5924 Handle tube nut (OBSOLETE) $6.78 2 usually ships 1-5 days
090 170-5925 Handle socket cam clamp (OBSOLETE) $7.37 1 usually ships 1-5 days
091 170-5926 Bag spring $9.13 1 usually ships 1-5 days
092 170-5927 Chrome bag clip $12.54 1 usually ships 1-5 days
093 170-5929 Bag coupling gasket $9.13 1 usually ships 1-5 days
094 N/A Not available Call for price 1 (Bag coupling gasket assembly) usually ships 3-26 days
095 170-5928 Bag coupling $5.13 1 usually ships 1-5 days
097a 170-3671 Collector cup assembly $84.15 1 usually ships 1-5 days
097b 170-3671 Collector cup assembly $84.15 1 usually ships 1-5 days
097c 170-3671 Collector cup assembly $84.15 1 usually ships 1-5 days
097d 170-3671 Collector cup assembly $84.15 1 usually ships 1-5 days
098 170-5933 Upper hose seal (OBSOLETE) $7.01 1 usually ships 1-5 days
099 170-3671 Collector cup assembly $84.15 1 usually ships 1-5 days
100 170-5934 Cup frame gasket $11.69 1 usually ships 1-5 days
101 170-3673 Dust collection cup (OBSOLETE) $43.00 1 usually ships 1-5 days
102 170-5935 Cup side clip (OBSOLETE) $7.92 2 usually ships 1-5 days
103 N/A Not available Call for price 4 Screw usually ships 3-26 days
104 170-5936 Exhaust hose (OBSOLETE) $5.50 1 usually ships 1-5 days
105 170-5937 Clamp (OBSOLETE) $6.78 1 usually ships 1-5 days
106 170-5311 Cable tie (OBSOLETE) $8.36 2 usually ships 1-5 days
107 N/A Not available Call for price 1 (Inlet curved hose) usually ships 3-26 days
