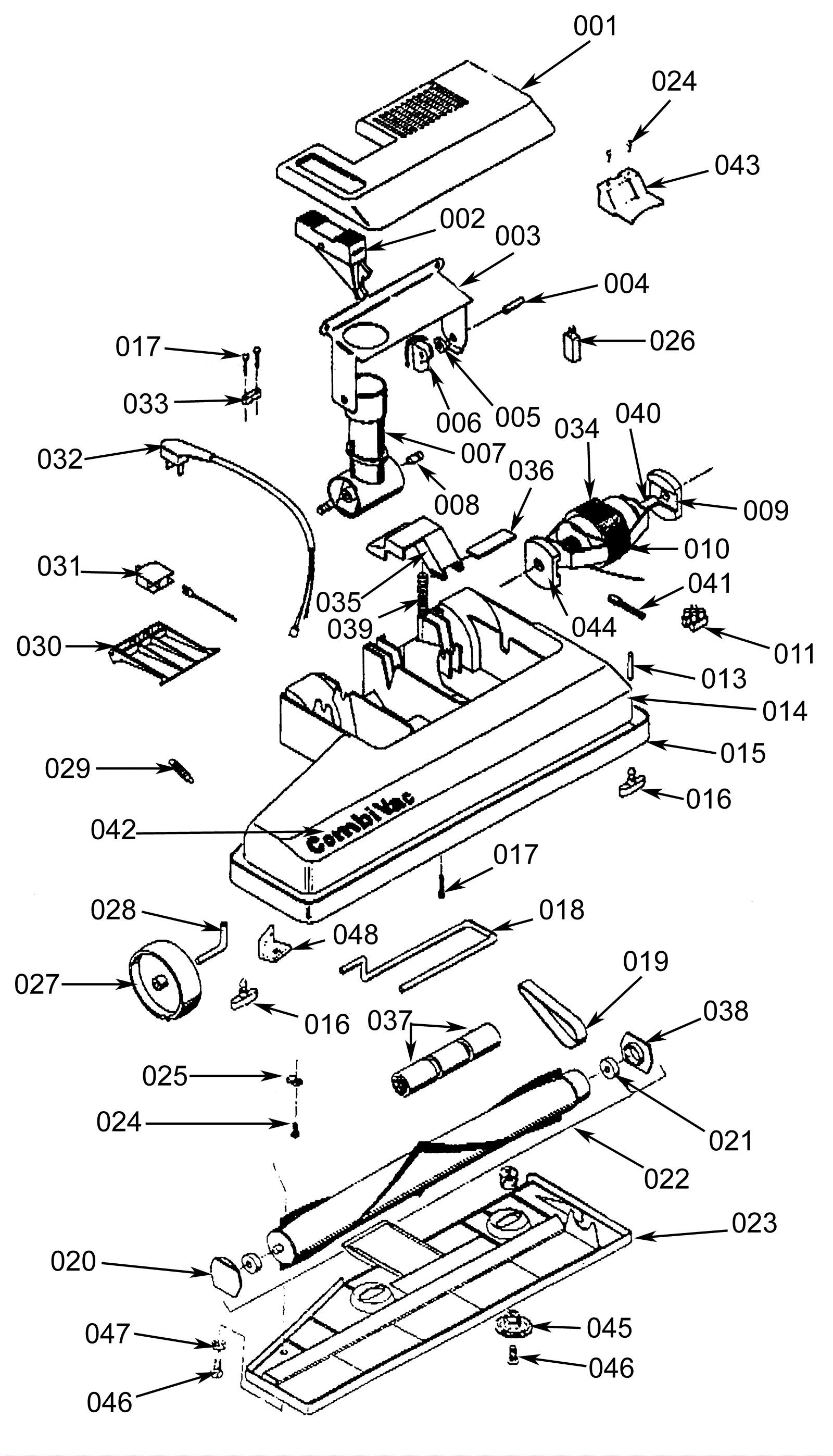

COMBIVAC 618 Head Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-9910 Cover $26.40 1 usually ships 1-5 days
002 170-5069 Pedal $9.13 1 usually ships 1-5 days
003 170-2221 Pivot bracket $80.27 1 usually ships 1-5 days
004 170-9913 Cylinder pin $8.03 1 usually ships 1-5 days
005 170-9914 Bushing (OBSOLETE) $7.01 2 usually ships 1-5 days
006 170-9915 Wear plate (OBSOLETE) $7.70 1 usually ships 1-5 days
007 170-5064 Pivot handle $58.48 1 usually ships 1-5 days
008 170-5066 Shaft pivot (OBSOLETE) $8.03 2 usually ships 1-5 days
009a 170-9916 Inner motor mount (OBSOLETE) $8.36 1 For Combivac 614 usually ships 1-5 days
009b 170-5096 Outer mount brush motor (OBSOLETE) $8.91 1 For Combivac 618 usually ships 1-5 days
010a 170-9917 Brush motor 120V $193.60 1 For Combivac 614 usually ships 1-5 days
010b 170-3340 Vac motor 120V $278.71 1 For Combivac 618 usually ships 1-5 days
011 170-4611 Terminal block (OBSOLETE) $7.01 1 usually ships 1-5 days
013 170-5103 Pin (OBSOLETE) $7.01 2 usually ships 1-5 days
014a 170-9921 Housing (OBSOLETE) $113.33 1 For Combivac 614 usually ships 1-5 days
014b 170-9922 Housing (OBSOLETE) $155.98 1 For Combivac 618 usually ships 1-5 days
015a 170-5104 Bumper 14 inch (OBSOLETE) $26.40 1 For Combivac 614 usually ships 1-5 days
015b 170-5105 Bumper 18 inch (OBSOLETE) $18.59 1 For Combivac 618 usually ships 16-41 days
016 170-5113 Tension lever $10.01 2 usually ships 1-5 days
017 170-5008 Screw $10.52 7 usually ships 1-5 days
018 170-5106 Adjusting axle $22.41 1 usually ships 1-5 days
019 170-3326 Drive belt (OBSOELTE) $13.40 1 usually ships 16-41 days
020 170-5108 Block bearing (OBSOLETE) $21.45 1 usually ships 16-41 days
021 170-0362 Radial ball bearing $23.08 2 usually ships 4-15 days
022a 170-5132 Brush assembly $54.10 1 For Combivac 614 usually ships 16-41 days
022b 170-3328 Brush assembly 18in (OBSOLETE) $80.52 1 For Combivac 618 usually ships 1-5 days
023a 170-5111 Plate nozzle $164.67 1 For Combivac 614 usually ships 1-5 days
023b 170-5112 Nozzle plate $116.92 1 For Combivac 618 usually ships 1-5 days
024 170-9924 Screw 4 x 12 polyfast (OBSOLETE) $7.01 4 usually ships 1-5 days
025 170-5107 Plate fixing (OBSOLETE) $7.92 2 usually ships 1-5 days
026 170-9925 Brush motor circuit breaker (OBSOLETE) $12.98 1 usually ships 1-5 days
027 170-5076 Rear wheel $16.50 2 usually ships 1-5 days
028a 170-9926 Wheel axle (OBSOLETE) $9.25 2 There has been a malfunction with this part. You will most likely want to replace with 170-5075 (028b). usually ships 1-5 days
028b 170-5075 Axle wheel $17.90 2 usually ships 1-5 days
029 170-5070 Spring (OBSOLETE) $7.92 1 usually ships 1-5 days
030 170-5090 Switch cover mounting $10.52 1 usually ships 1-5 days
031 270-0005 one pole switch $34.66 1 usually ships 16-41 days
032a 170-9927 Cord assembly (OBSOLETE) $40.37 1 usually ships 16-41 days
032b 991-5006 16/3 replacement power cord 50 foot (yellow) $37.50 1 ships same day
032c 991-5002 16/3 extension cord 50 foot (yellow) $48.73 1 (NON-OEM) ships same day
033 170-5067 Strain relief clamp (OBSOLETE) $5.94 1 usually ships 1-5 days
034 170-9928 Strip gasket (OBSOLETE) $5.50 1 usually ships 1-5 days
035 170-5091 Latch foot $14.95 1 usually ships 16-41 days
036 170-5092 Rail stop (OBSOLETE) $20.35 1 usually ships 1-5 days
037 170-5078 Roller $8.80 3 usually ships 1-5 days
038 170-5082 Bearing block left side (OBSOLETE) $15.18 1 usually ships 16-41 days
039 170-9929 Tension spring (OBSOLETE) $7.96 1 usually ships 1-5 days
040 170-3333 Belt drive shaft (OBSOLETE) $30.03 1 usually ships 1-5 days
041a 170-9930 Carbon brush (OBSOLETE) $9.69 2 For Combivac 614 usually ships 1-5 days
041b 170-5102 Carbon Brushes $12.60 2 For Combivac 618 usually ships 1-5 days
042a 170-9931 Label (OBSOLETE) $10.56 1 For Combivac 614 usually ships 1-5 days
042b 170-9932 Label (OBSOLETE) $15.20 1 For Combivac 618 usually ships 1-5 days
043 170-8094 Exhaust side foam (OBSOLETE) $5.50 1 usually ships 1-5 days
044a 170-5097 Inner motor mount (OBSOLETE) $9.90 1 For Combivac 614 usually ships 1-5 days
044b 170-5093 Inner Mount Brush Motor (OBSOLETE) $12.83 1 For Combivac 618 usually ships 1-5 days
045 170-9933 Washer (OBSOLETE) $3.00 2 usually ships 1-5 days
046 170-5085 Screw nozzle plate (OBSOLETE) $5.72 3 usually ships 1-5 days
047 170-5072 Security disc $9.13 1 For Combivac 618 usually ships 1-5 days
048 170-5083 Retainer brush housing (OBSOLETE) $40.27 1 For Combivac 618 usually ships 1-5 days
N/S 170-0126 Paper vacuum bag (pkg of 10) $32.55 usually ships 16-41 days
N/S 170-9934 Bridge rectifier (OBSOLETE) $30.29 1 usually ships 1-5 days
N/S 991-9033 Paper vacuum bags (pkg of 10) (OBSOLETE) $13.59 (NON-OEM) usually ships 5-12 days
