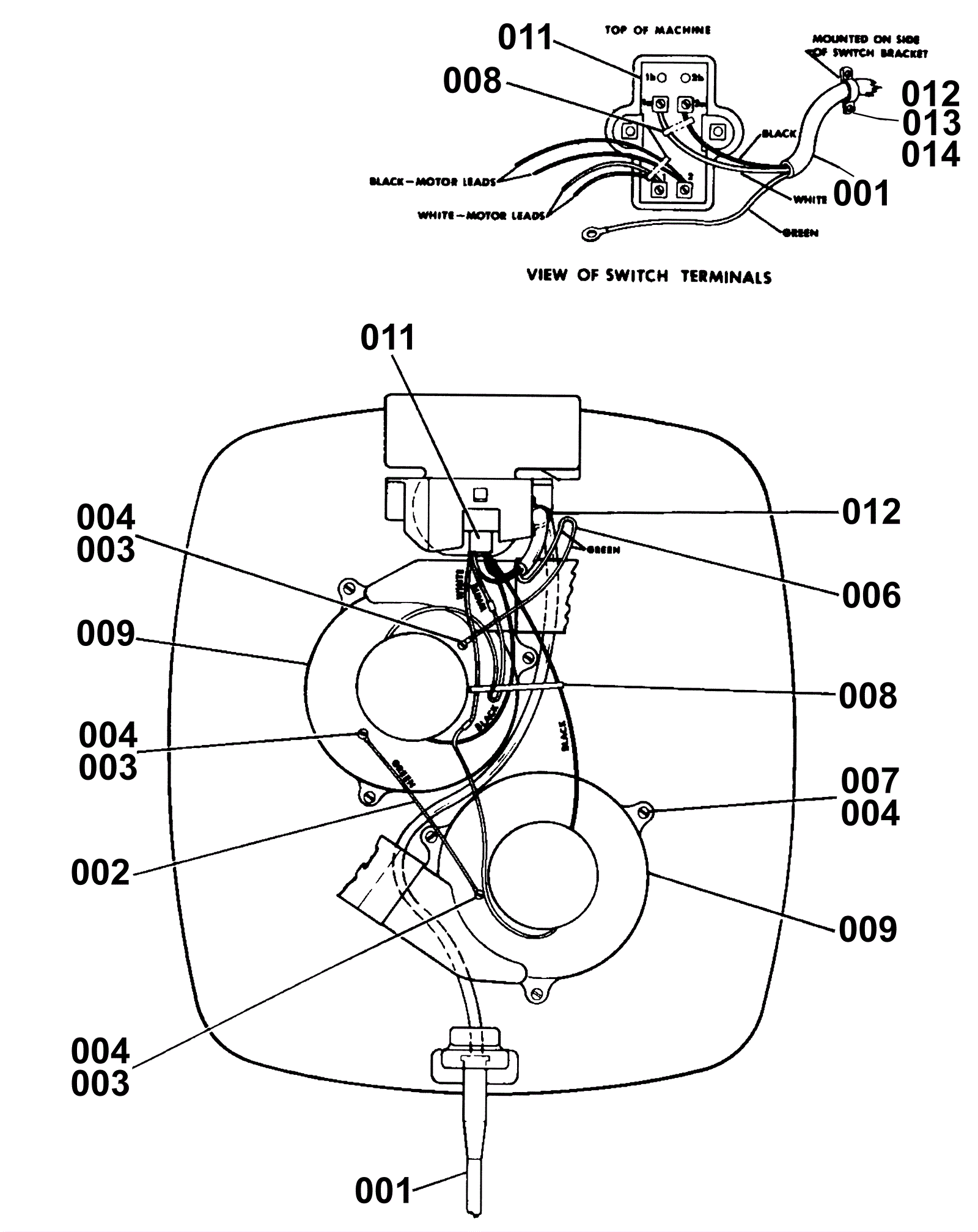

TMD50 Electrical Diagram

#PartDescriptionPriceReqNotesAvailability
001 170-8001 Cord assembly 35ft (OBSOLETE) $150.28 1 usually ships 1-5 days
002 170-8002 Wire assembly (goes from motor to motor) (OBSOLETE) $6.06 1 usually ships 1-5 days
003 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 3 ships same day
004 999-0311 Washer #10 external star lock zinc plated $0.99 9 ships same day
006 170-8005 Wire assembly (goes from motor to ground) (OBSOLETE) $6.53 1 usually ships 1-5 days
007 999-0451 Screw 10-16 x 5/8 pan head phillips self-drilling $0.99 6 ships same day
008 170-8007 Nylon wire tie $10.52 3 usually ships 1-5 days
009 170-8008 115V motor assembly $171.88 2 usually ships 16-41 days
011 170-8009 On off switch $53.67 1 usually ships 1-5 days
012 170-8010 Cord clamp (OBSOLETE) $2.00 1 usually ships 1-5 days
013 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel $0.99 ships same day
014 170-8012 Nut M4 x .7 hex (OBSOLETE) $2.00 2 usually ships 1-5 days
