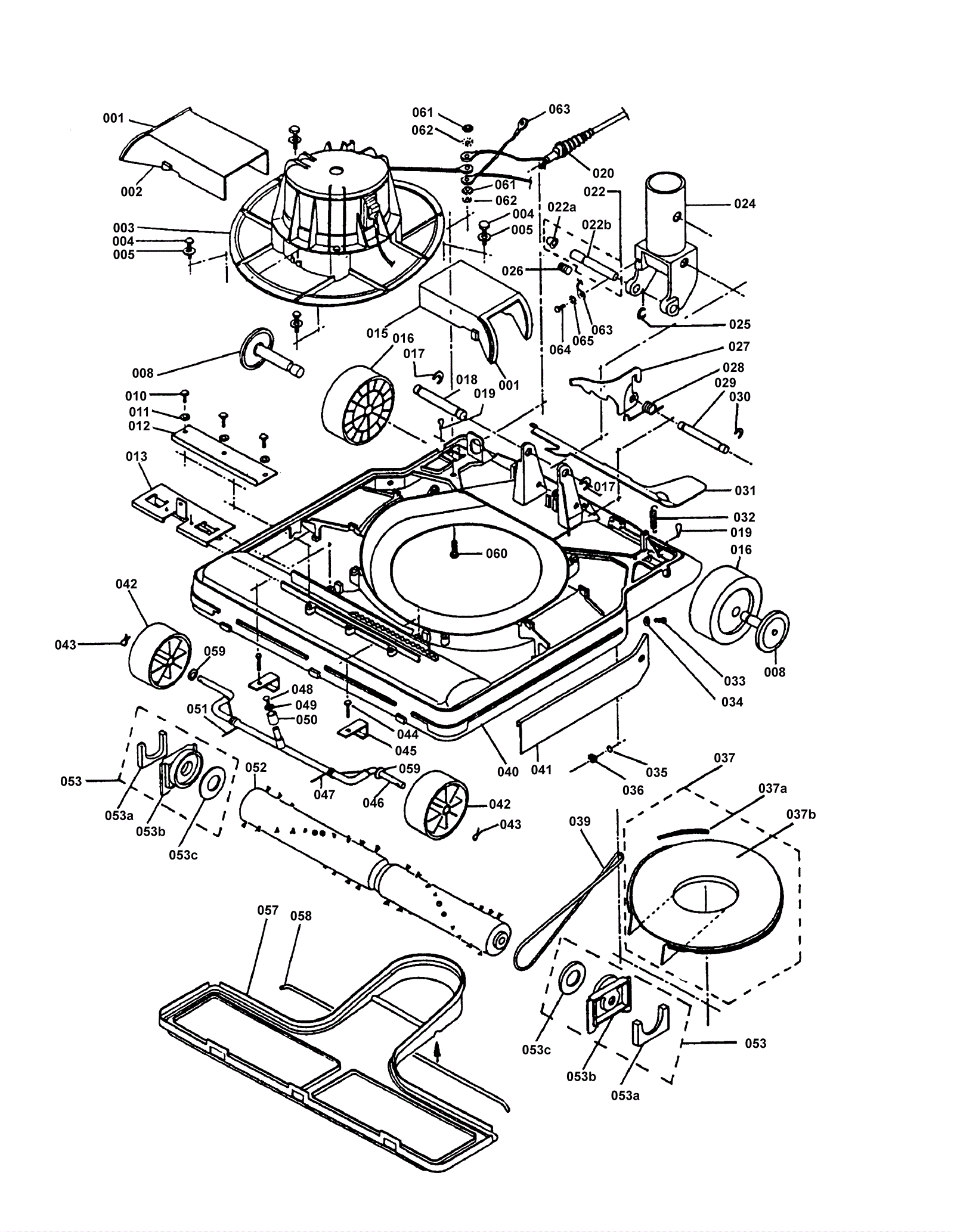

Internal Parts

#PartDescription ReqNotesAvailability
001 170-5335 Filter bowl (OBSOLETE) 1
002 170-5336 Right air duct (OBSOLETE) 1
003 170-5337 Motor assembly 120v (OBSOLETE) 1
004 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 4
005 170-5305 Washer 13/64 flat (OBSOLETE) 4
008 170-5338 Rear wheel hub assembly (OBSOLETE) 2
010 999-0463 Screw 6-32 x 3/8 pan head slotted zinc plated 3
011 170-5305 Washer 13/64 flat (OBSOLETE) 3
012 170-5340 Plate cam guide (OBSOLETE) 1
013 170-5341 Cam spring assembly (OBSOLETE) 1
015 170-5342 Left air duct (OBSOLETE) 1
016 210-0122 Rear wheel (OBSOLETE) 2
017 170-5344 C-washer 5/16 (OBSOLETE) 2
018 170-5345 Socket bolt (OBSOLETE) 1
019 170-5346 Retainer clip (OBSOLETE) 2
022 170-5347 Switch actuator assembly (OBSOLETE) 1
022a 170-5348 Switch actuator (OBSOLETE) 1
022b 170-5349 Switch bolt (OBSOLETE) 1
024 170-5350 Tube socket (OBSOLETE) 1
025 170-5351 Washer 13/64 flat (OBSOLETE) 1
026 170-5352 Spring (OBSOLETE) 1
027 170-5353 Handle cam (OBSOLETE) 1
028 170-5354 Cam spring (OBSOLETE) 1
029 170-5355 Cam bolt (OBSOLETE) 1
030 154-3992 Washer 3/16 star 2
031 170-5356 Handle release pedal (OBSOLETE) 1
032 170-5357 Spring (OBSOLETE) 1
033 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 2
034 170-5358 Washer 13/64 flat (OBSOLETE) 2
035 170-5328 Wsher 10 x 2.04 star (OBSOLETE) 2
036 999-0460 Nut 10-32 hex 2
037a 170-5361 Fan cover gasket (OBSOLETE)
040 170-5364 Chassis (OBSOLETE) 1
041 170-5365 Bumper (OBSOLETE) 1
042 170-5366 Front wheel (OBSOLETE) 2
043 170-5367 Cotter pin (OBSOLETE) 2
044 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 3
045 170-5368 Front axle retainer (OBSOLETE) 2
046 170-5369 Front axle assembly (OBSOLETE) 1
047 170-5370 Front axle spring (OBSOLETE) 1
048 170-5371 Type b rivet (OBSOLETE) 1
049 170-5372 Washer 11/64 flat (OBSOLETE) 1
050 N/A Not available 1 (not available) Axle Bushing
051 170-5373 Front axle spring (OBSOLETE) 1
052 210-0156 12 inch brush roll assy (includes bearings and supports) 1
053 210-0158 Bearing support assembly 1
053a 170-5376 Bearing support gasket (OBSOLETE) 2
053b 170-5377 Bearing support (OBSOLETE) 2
053c 210-0161 Felt bearing support 2
057 170-5379 Bottom plate with gasket (OBSOLETE) 1
058 170-5380 Bottom plate retainer (OBSOLETE) 1
059 999-0024 Washer 5/16 flat stainless steel 2
060 999-0410 Screw 8-32 x 5/8 pan head slotted zinc plated 1
061 999-0308 Nut 8-32 plain 2
062 170-5328 Wsher 10 x 2.04 star (OBSOLETE) 3
063 170-5383 Ground lead (OBSOLETE) 1
064 999-0459 Screw 6-32 x 3/8 pan head thread-cutting type 23 zinc 1
