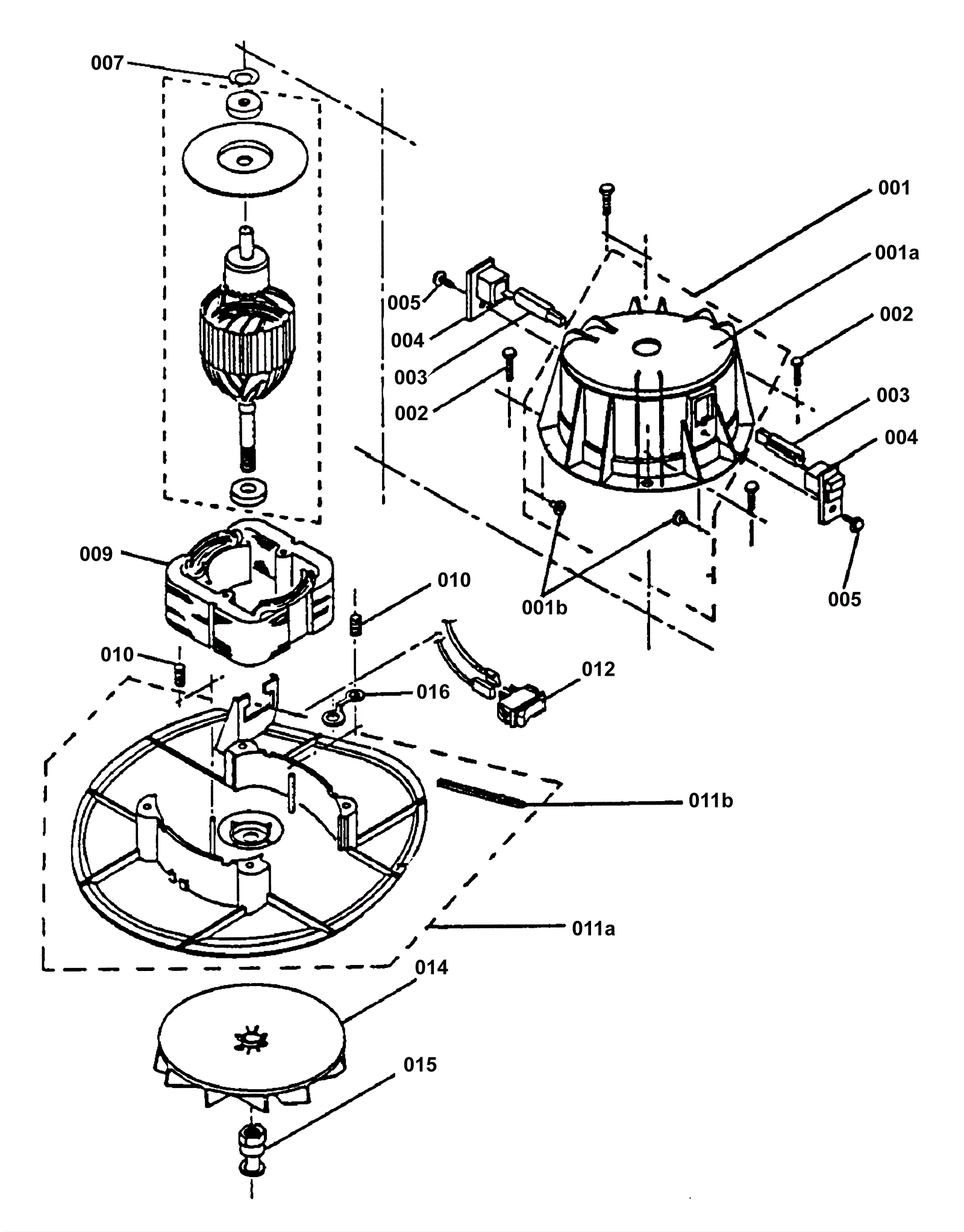

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-5385
|
Motor cover assembly (OBSOLETE) |
1 |
|
|
001a |
170-5386
|
Motor cover (OBSOLETE) |
1 |
|
|
001b |
999-0308
|
Nut 8-32 plain |
2 |
|
|
002 |
999-0458
|
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
4 |
|
|
003 |
170-5387
|
Brush holder assembly (OBSOLETE) |
2 |
|
|
004 |
170-5388
|
Brush holder support (OBSOLETE) |
2 |
|
|
005 |
999-0411
|
Screw 8-32 x 3/8 pan head slotted zinc plated |
2 |
|
|
007 |
170-5389
|
Washer .850 x .017 end play (OBSOLETE) |
1 |
|
|
008 |
170-5390
|
MUST BUY WHOLE MOTOR 170-5337 Armature asmbly 120V (OBSOLETE |
1 |
|
|
009 |
170-5392
|
Must buy entire motor 170-5337 Field assembl (OBSOLETE) |
1 |
|
|
010 |
170-5394
|
Spring (OBSOLETE) |
2 |
|
|
011a |
170-5395
|
Motor base with gasket (OBSOLETE) |
1 |
|
|
011b |
170-5396
|
Motor base gasket (OBSOLETE) |
1 |
|
|
012 |
170-5397
|
Rocker switch (OBSOLETE) |
1 |
|
|
015 |
210-0085
|
Belt pulley nut |
1 |
|
|
016 |
170-5400
|
Washer ground (OBSOLETE) |
1 |
|
|
