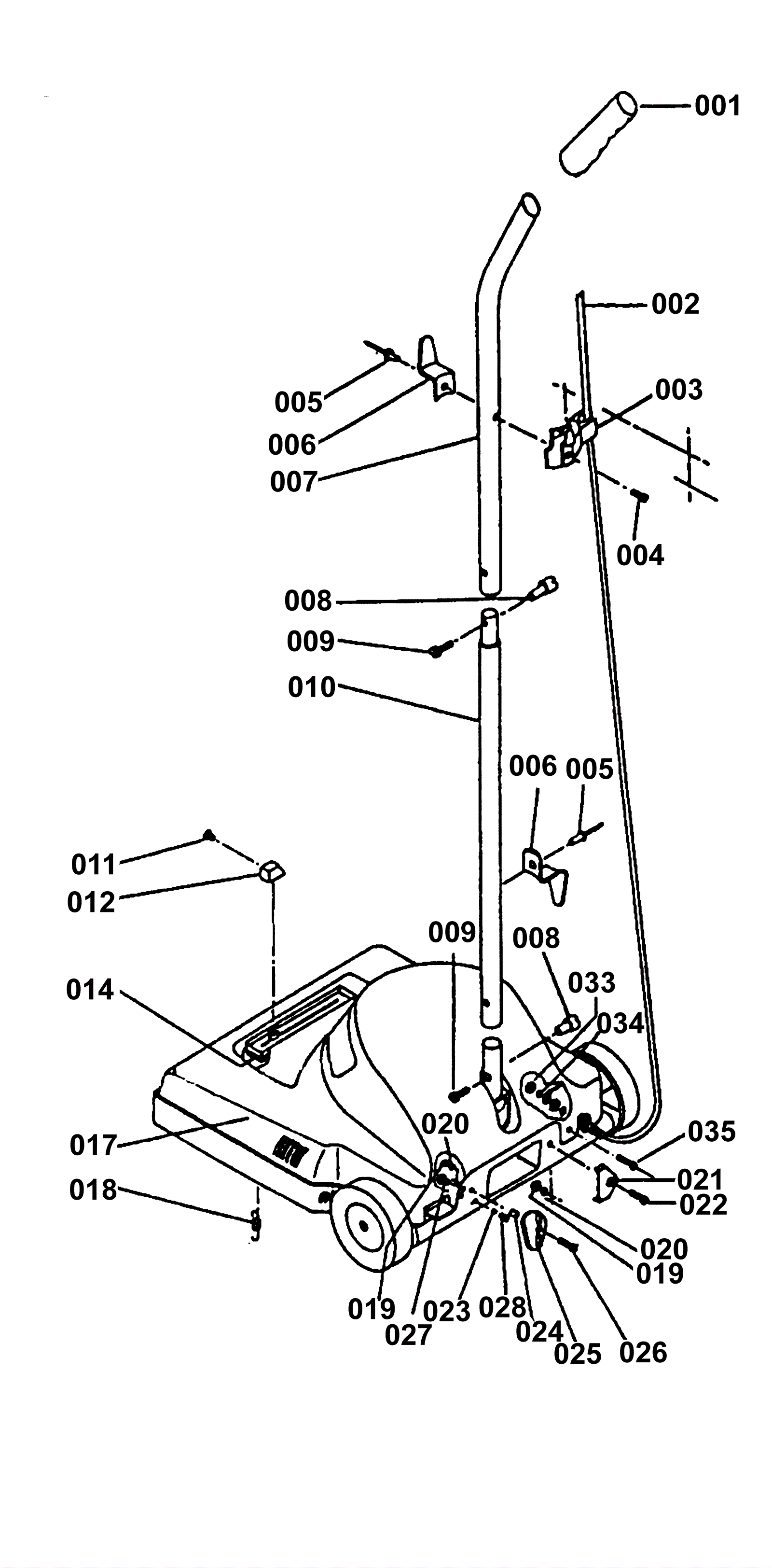

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-5316
|
Handle grip (OBSOLETE) |
1 |
|
|
002 |
170-5317
|
Line cord assembly (OBSOLETE) |
1 |
|
|
003 |
170-5319
|
Cord retainer (OBSOLETE) |
1 |
|
|
004 |
999-0458
|
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
1 |
|
|
005 |
170-5133
|
Pop rivet (OBSOLETE) |
2 |
|
|
006 |
170-5320
|
Cord hook (OBSOLETE) |
2 |
|
|
007 |
170-5321
|
Upper handle (OBSOLETE) |
1 |
|
|
008 |
170-5322
|
Nut (OBSOLETE) |
2 |
|
|
009 |
999-0389
|
Screw 10-32 x 1 round head slotted zinc plated |
2 |
|
|
010 |
170-5323
|
Lower handle (OBSOLETE) |
1 |
|
|
011 |
999-0459
|
Screw 6-32 x 3/8 pan head thread-cutting type 23 zinc |
1 |
|
|
012 |
170-5324
|
Wheel height knob (OBSOLETE) |
1 |
|
|
014 |
170-5325
|
Felt (OBSOLETE) |
1 |
|
|
017 |
170-5326
|
Blue hood without lens (OBSOLETE) |
1 |
|
|
018 |
170-5327
|
Hood spring (OBSOLETE) |
2 |
|
|
019 |
999-0460
|
Nut 10-32 hex |
2 |
|
|
020 |
170-5328
|
Wsher 10 x 2.04 star (OBSOLETE) |
2 |
|
|
021 |
170-5329
|
Bag support (OBSOLETE) |
1 |
|
|
022 |
999-0461
|
Screw 10-32 x 5/8 pan head slotted zinc plated |
1 |
|
|
023 |
170-5330
|
Ball (OBSOLETE) |
1 |
|
|
024 |
170-5331
|
Bag knob spacer (OBSOLETE) |
1 |
|
|
025 |
170-5332
|
Bag knob (OBSOLETE) |
1 |
|
|
026 |
999-0414
|
Screw 10-32 x 3/4 pan head slotted zinc plated |
1 |
|
|
027 |
170-5333
|
Screw 6 x 5 5/16 type b (OBSOLETE) |
1 |
|
|
028 |
170-5334
|
Knob spring (OBSOLETE) |
1 |
|
|
033 |
999-0308
|
Nut 8-32 plain |
2 |
|
|
034 |
999-0092
|
Washer #8 internal star lock zinc plated |
2 |
|
|
035 |
999-0411
|
Screw 8-32 x 3/8 pan head slotted zinc plated |
1 |
|
|
