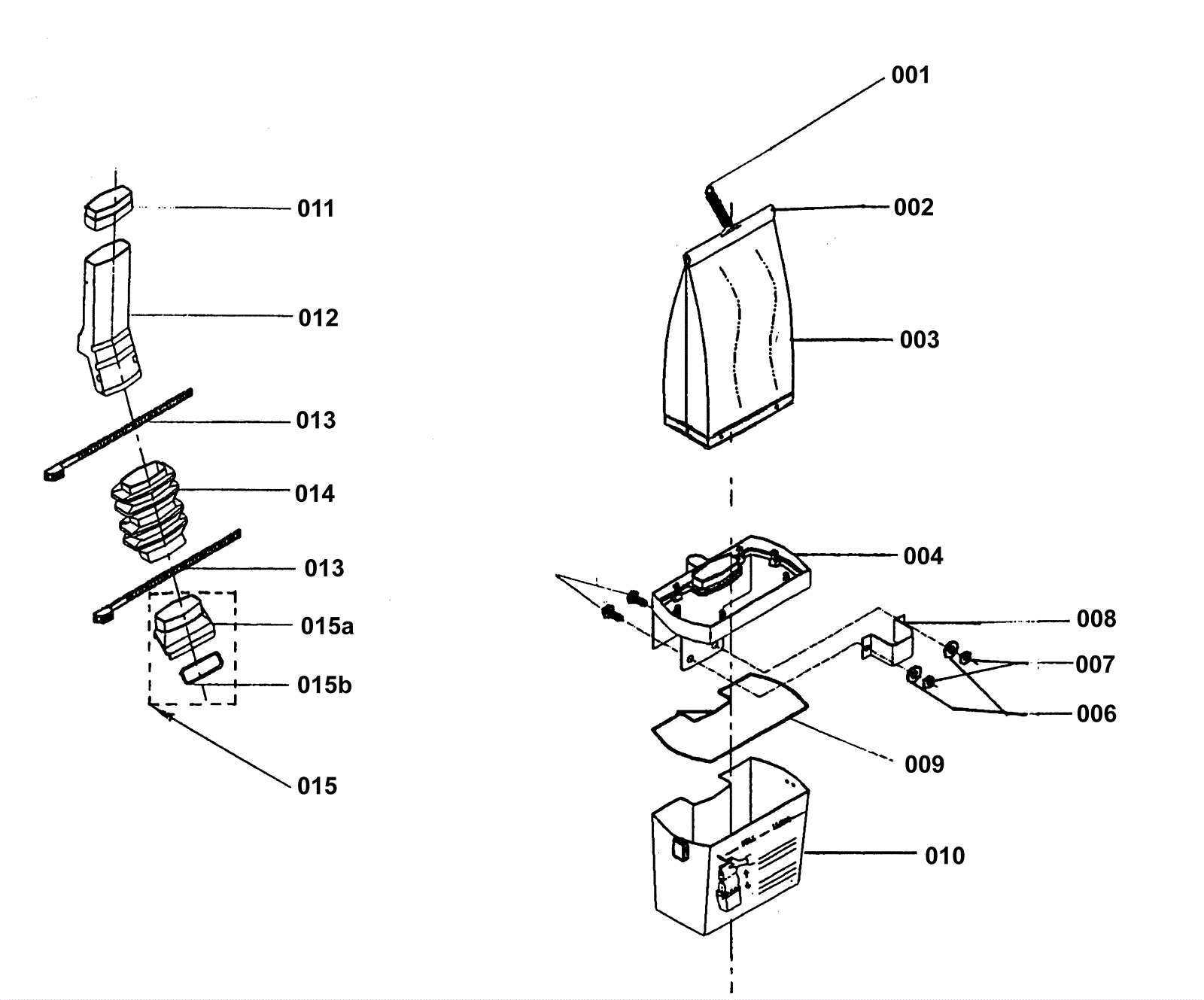

Bag Assembly

#PartDescription ReqNotesAvailability
001 170-5301 Bag spring (OBSOLETE) 1
002 170-5302 Bag clip (OBSOLETE) 1
003 210-0089 Bag assembly 1
004 210-0090 Cup frame with gasket 1
005 999-0411 Screw 8-32 x 3/8 pan head slotted zinc plated 2
006 170-5305 Washer 13/64 flat (OBSOLETE) 2
007 999-0308 Nut 8-32 plain 2
008 170-5306 Clamp (OBSOLETE) 1
009 170-5307 Cup gasket (OBSOLETE) 1
010 170-5308 Cup assembly (OBSOLETE) 1
011 170-5309 Upper hose seal (OBSOLETE) 1
012 170-5310 Exhaust hose (OBSOLETE) 1
013 170-5311 Cable tie (OBSOLETE) 2
014 170-5312 Dust cup hose (OBSOLETE) 1
015 N/A Not available 1 (Bag coupling gasket assembly)
015a 170-5314 Bag coupling (OBSOLETE) 1
015b 170-5315 Bag coupling gasket (OBSOLETE) 1
