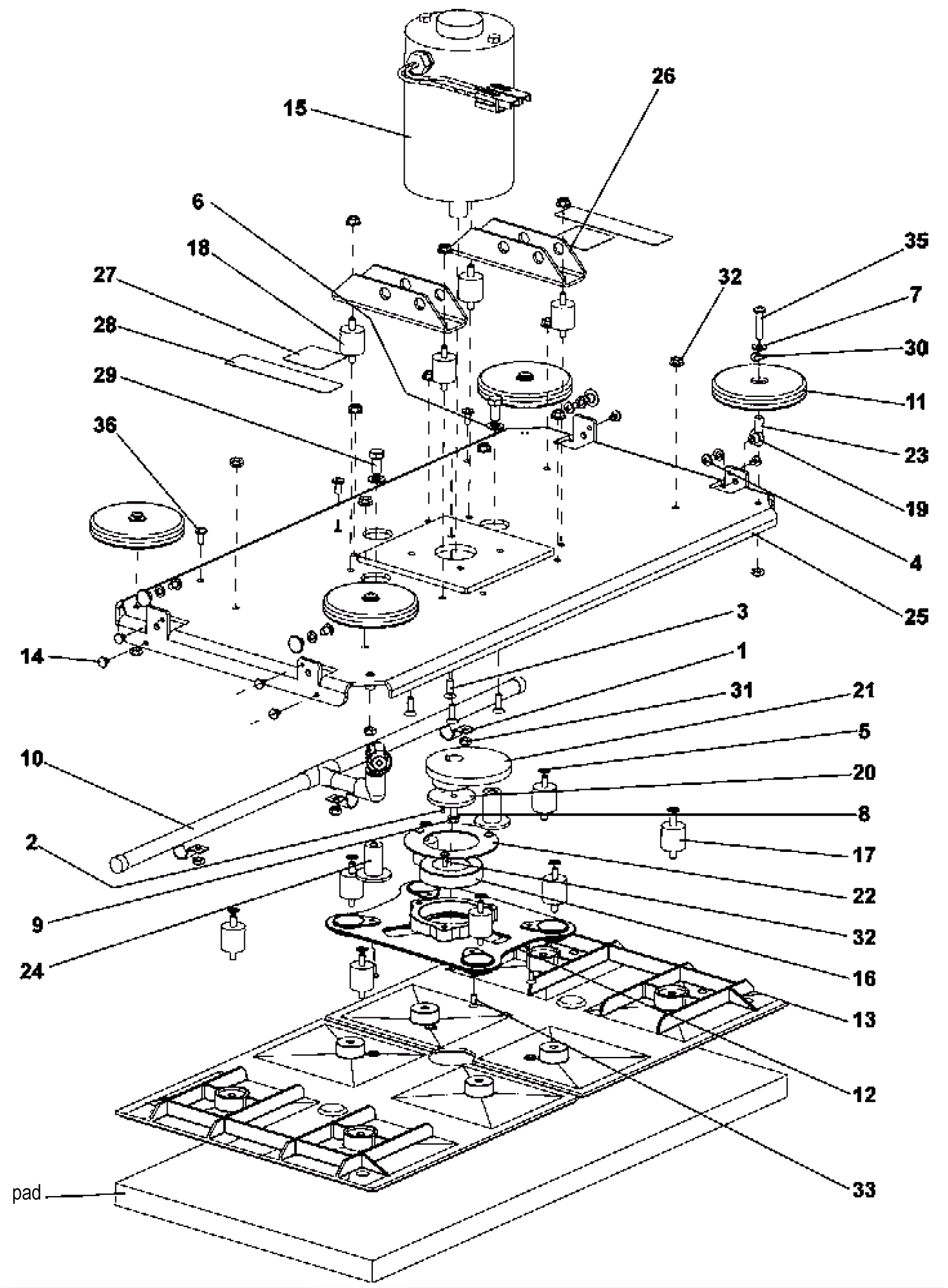

CR28 BOOST Lower Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-0198 Hose clamp $10.85 3 ships same day
2 373-3020 Pin roll $12.31 1 usually ships 17-28 days
3 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel $0.99 4 ships same day
4 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 4 ships same day
5 999-0017 Washer 1/4 external star lock $0.99 8 ships same day
6 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
7 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
8 999-0060 Washer 1/4 split lock plain finish $0.99 5 ships same day
9 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
10 170-9197 28 inch drip tube assembly $165.00 1 usually ships 1-5 days
11 170-7172 4 inch guide wheel $34.14 4 ships same day
12 272-7249 Driver plate $24.60 1 ships same day
13 272-6640 BOOST flex plate kit $1,041.87 2 ships same day
14 170-9198 Clip $10.52 8 usually ships 1-5 days
15 272-9948 24V brush motor $1,179.74 1 usually ships 17-28 days
16 270-0065 Bearing $67.42 1 ships same day
17 272-5358 Deck isolator - DO NOT ORDER - SEE NOTE $45.75 8 usually ships 17-28 days
18 170-9016 Rubber mounting isolator kit $160.86 1 usually ships 17-28 days
19 170-7114 Rear swing arm $261.33 4 usually ships 17-28 days
20 270-0322 Eccentric retainer $80.87 1 usually ships 17-28 days
21 270-0724 Eccentric boost (OBSOLETE) $119.39 1 usually ships 1-5 days
22 270-0126 Bearing retainer $71.18 1 ships same day
23 270-0129 Guide wheel sleeve $12.31 4 usually ships 17-28 days
24 N/A Not available Call for price 2 (stud stabilizer) usually ships 3-26 days
26 170-9200 Lift bracket $56.10 2 usually ships 1-5 days
27 170-9201 No step decal $23.01 2 usually ships 1-5 days
28 170-9202 BOOST decal $15.48 2 usually ships 1-5 days
29 999-0850 Bolt 3/8-24 x 1 hex head grade 5 plain finish $0.99 2 ships same day
30 270-0174 Washer 29/64 x 47/64 bowed $12.31 4 ships same day
31 999-0609 Nut 1/4-20 hex stainless steel $0.99 7 ships same day
32 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 12 ships same day
33 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 4 ships same day
34 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 3 ships same day
35 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 4 ships same day
36 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 3 ships same day
