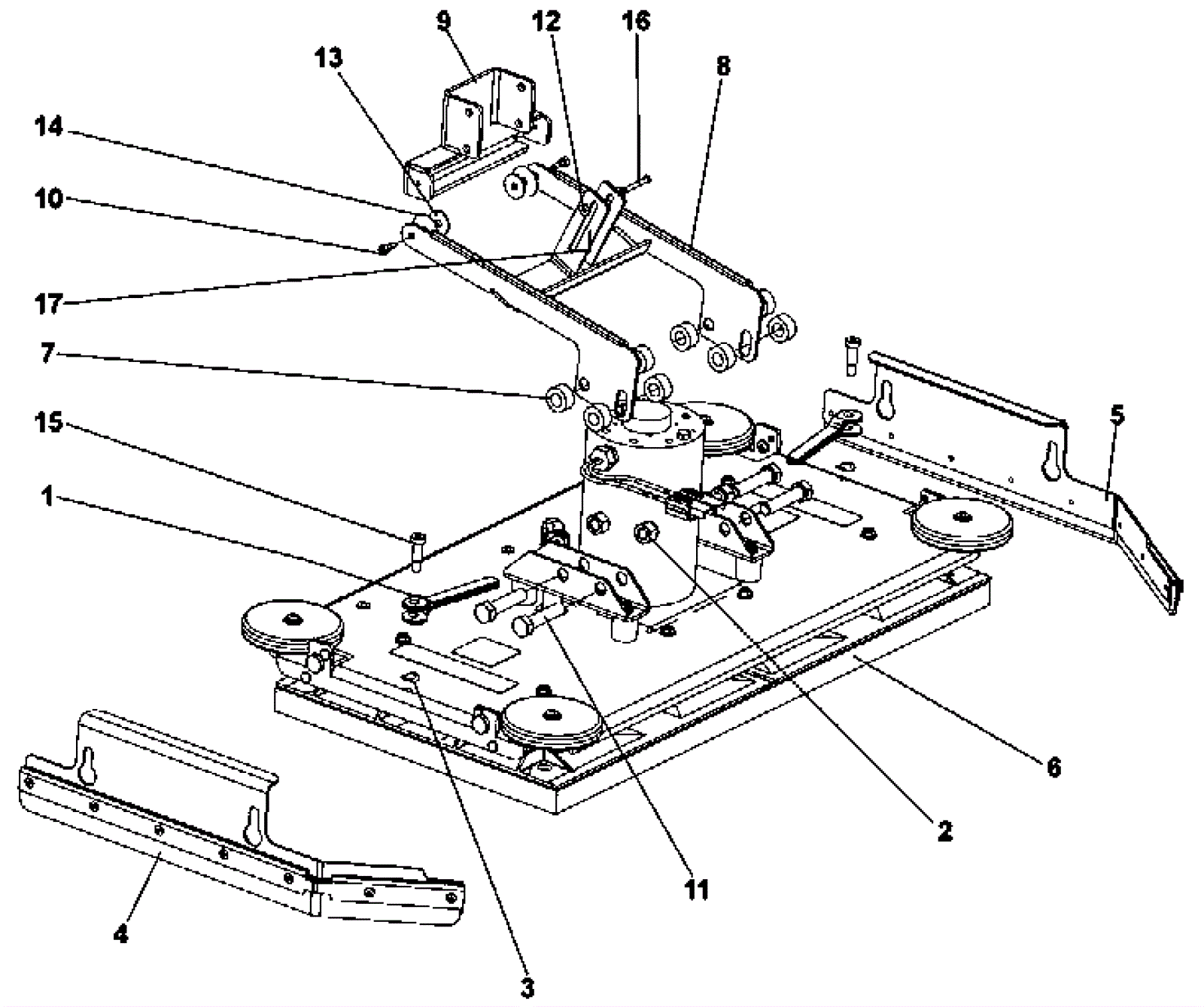

CR28 BOOST Upper Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-9189 Cam lock $12.12 2 usually ships 1-5 days
2 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 4 ships same day
3 270-0174 Washer 29/64 x 47/64 bowed $12.31 2 ships same day
4 170-9190 Left hand skirt assembly (OBSOLETE) $255.21 1 usually ships 17-28 days
5 170-9191 Right hand skirt assembly $232.87 1 usually ships 1-5 days
6 170-9192 Scrub deck assembly (OBSOLETE) $2,661.12 1 usually ships 1-5 days
7 270-0122 Lift arm spacer $11.75 8 usually ships 1-5 days
8 170-9193 Lift weldment $267.88 1 usually ships 1-5 days
9 170-9194 Head adaptor weldment $205.74 1 usually ships 1-5 days
10 170-4700 Shoulder bolt $10.11 2 usually ships 1-5 days
11 999-0691 Bolt 1/2-13 x 2 1/4 hex head grade 5 $1.50 4 ships same day
12 999-0464 Washer 3/16 flat plain finish $0.99 2 ships same day
13 170-1395 Fender washer $12.31 2 ships same day
14 170-7132 Washer 1 1/4 $6.28 2 usually ships 12-17 days
15 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head $1.91 2 ships same day
16 170-9196 Clevis pin $15.48 1 usually ships 1-5 days
17 170-9195 Cotter pin $11.25 1 usually ships 1-5 days
