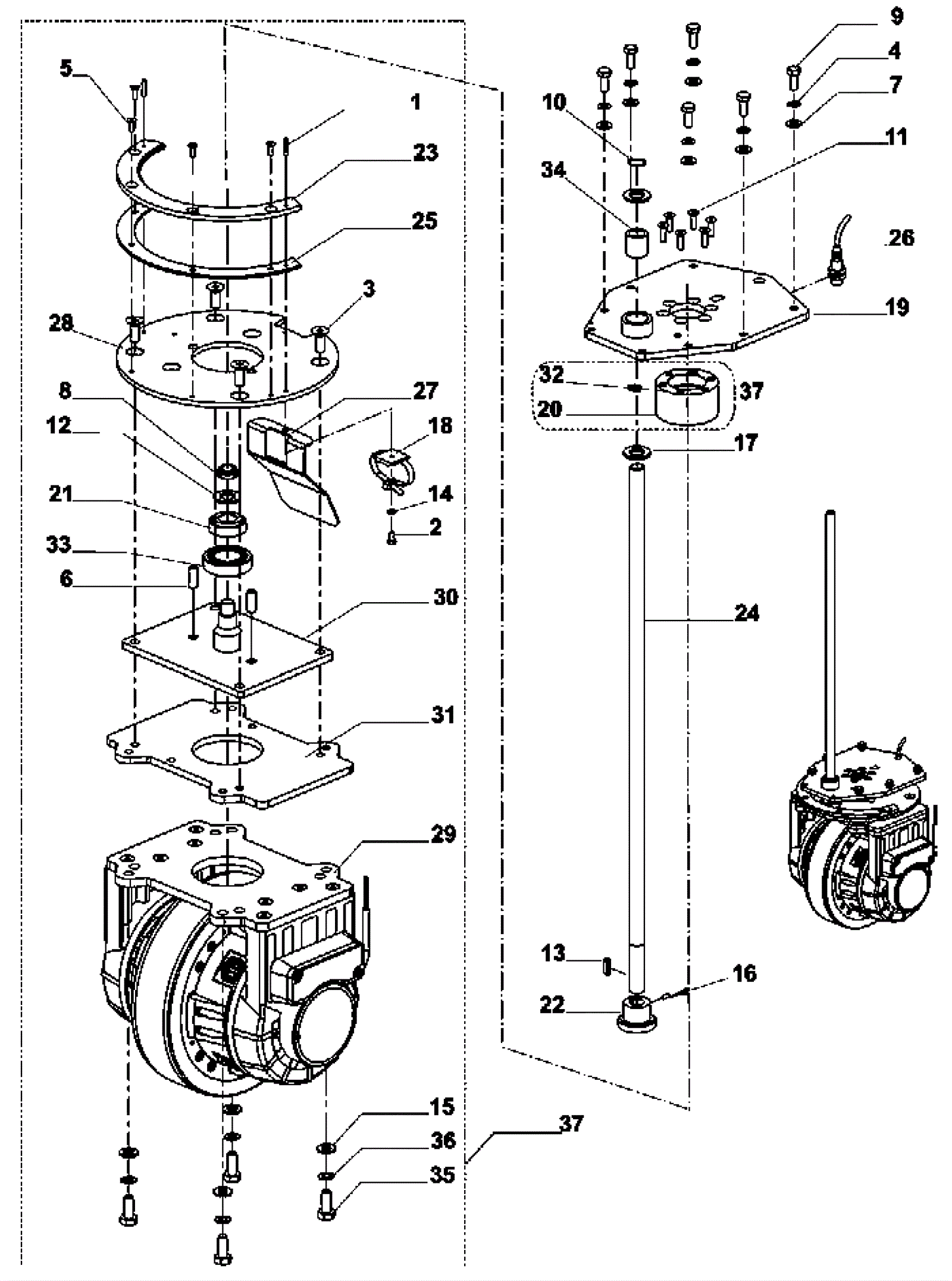

CR28 BOOST Front Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-1907 Spiral pin (OBSOLETE) $6.78 2 usually ships 1-5 days
2 170-9105 Screw M5 x 10mm $8.80 1 usually ships 1-5 days
3 999-0250 Bolt M5-.8 x 10mm hex head full thread $0.99 4 ships same day
4 999-0412 Washer #8 SAE flat $0.99 6 ships same day
5 170-9106 Screw M5 x 14mm $8.25 4 usually ships 1-5 days
6 272-3533 Dowel (OBSOLETE) $7.59 2 usually ships 1-5 days
7 999-1267 Washer M8 flat zinc $0.99 6 ships same day
8 272-3536 Ring nut $31.10 1 usually ships 1-5 days
9 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 6 ships same day
10 572-3661 RING D 17 UNI7435 10 PCS SET $31.10 1 usually ships 17-28 days
11 172-4835 Screw M6 x 20mm $12.31 6 usually ships 17-28 days
12 272-9500 Washer flat $19.98 2 usually ships 17-28 days
13 181-0942 Square keyway $49.63 1 usually ships 17-28 days
14 999-0803 Washer M5 flat plain finish $0.99 1 ships same day
15 999-9099 Washer M10 flat stainless steel $0.99 4 ships same day
16 272-9529 SCREW M5X10 CUP PT 10 PCS $34.87 1 usually ships 17-28 days
17 170-9108 Washer M16 flat nylon (OBSOLETE) $10.23 1 usually ships 1-5 days
18 170-9109 Clamp $10.23 1 usually ships 1-5 days
19 170-9110 Steering support plate $126.50 1 usually ships 1-5 days
20 272-3537 Ball bearing support $70.47 1 usually ships 17-28 days
21 272-3535 Ball bearing $35.60 1 usually ships 17-28 days
22 170-9111 Steeting pinion $98.68 1 usually ships 1-5 days
23 170-9112 Crown (OBSOLETE) $151.36 1 usually ships 1-5 days
24 170-9113 Steering shaft $76.45 1 usually ships 1-5 days
25 170-9114 Spacer (OBSOLETE) $34.98 1 usually ships 1-5 days
26 170-9115 Sensor (OBSOLETE) $63.03 1 usually ships 1-5 days
27 170-9116 Wire cover bracket (OBSOLETE) $22.00 1 usually ships 1-5 days
28 170-9117 Gear support (OBSOLETE) $83.60 1 usually ships 1-5 days
29 170-9118 Drive wheel motor (OBSOLETE) $3,498.88 1 usually ships 1-5 days
30 272-3532 Steering support (OBSOLETE) $86.13 1 usually ships 1-5 days
31 170-9119 Upper plate $112.31 1 usually ships 1-5 days
32 170-9120 Greaser (OBSOLETE) $7.59 1 usually ships 1-5 days
33 272-3534 Ball bearing $36.32 1 usually ships 17-28 days
34 272-8336 Bush 17 X 25 X 25 $16.95 1 usually ships 1-5 days
35 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 4 ships same day
36 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
37 272-3531 Drive wheel kit (OBSOLETE) $3,816.78 1 usually ships 1-5 days
N/S 170-9121 Drive wheel harness $130.88 1 usually ships 1-5 days
