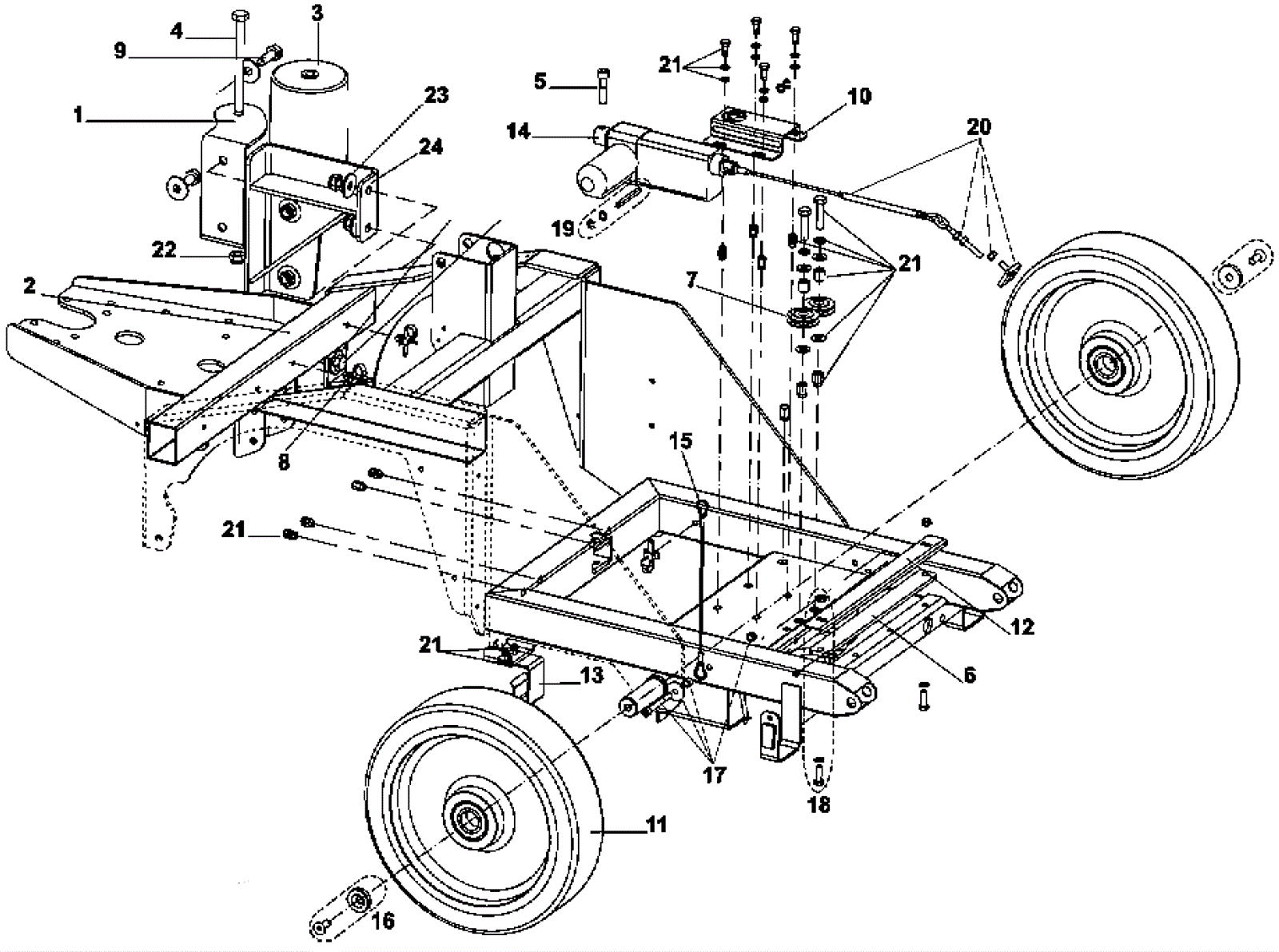

CR28 BOOST Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-9087 Roller bumper support (OBSOLETE) $31.90 1 usually ships 1-5 days
2 170-9088 Chassis (OBSOLETE) $1,187.92 1 usually ships 17-28 days
3 272-0240 Bumper roller (OBSOLETE) $17.60 1 usually ships 17-28 days
4 170-9103 Screw M10 x 150mm hex head (OBSOLETE) $6.78 1 usually ships 1-5 days
5 170-9104 Screw M8 x 35mm socket head (OBSOLETE) $6.78 1 usually ships 1-5 days
6 170-9090 Plate (OBSOLETE) $16.83 1 usually ships 1-5 days
7 272-8303 Pulley $75.67 2 usually ships 1-5 days
8 272-0816 Clamp $10.01 4 usually ships 1-5 days
9 999-1302 Screw M10-1.5 x 30mm hex head $1.38 2 ships same day
10 170-9091 Actuator cover $22.48 1 usually ships 1-5 days
11 170-9092 Rear wheel $258.50 2 usually ships 17-28 days
12 170-9093 Cable protection bar (OBSOLETE) $18.37 1 usually ships 1-5 days
13 170-9094 Drain hose bracket (OBSOLETE) $28.71 1 usually ships 1-5 days
15 170-9096 Tank cable $11.77 1 usually ships 1-5 days
16 170-9097 Rear wheel fitting kit $10.01 1 usually ships 1-5 days
17 170-9098 Tank cable kit $10.45 1 usually ships 1-5 days
18 170-9099 Bar cover fitting kit (OBSOLETE) $7.59 1 usually ships 1-5 days
19 170-9100 Actuator pin fitting kit (OBSOLETE) $13.53 1 usually ships 1-5 days
20 272-7214 Squeegee cable $215.00 1 usually ships 17-28 days
21 170-9101 Chassis hardware kit $13.40 1 usually ships 1-5 days
22 172-4782 Nut M10 self locking $12.31 5 ships same day
23 999-9099 Washer M10 flat stainless steel $0.99 8 ships same day
24 170-9102 Roller bumper support plate $73.70 1 usually ships 1-5 days
