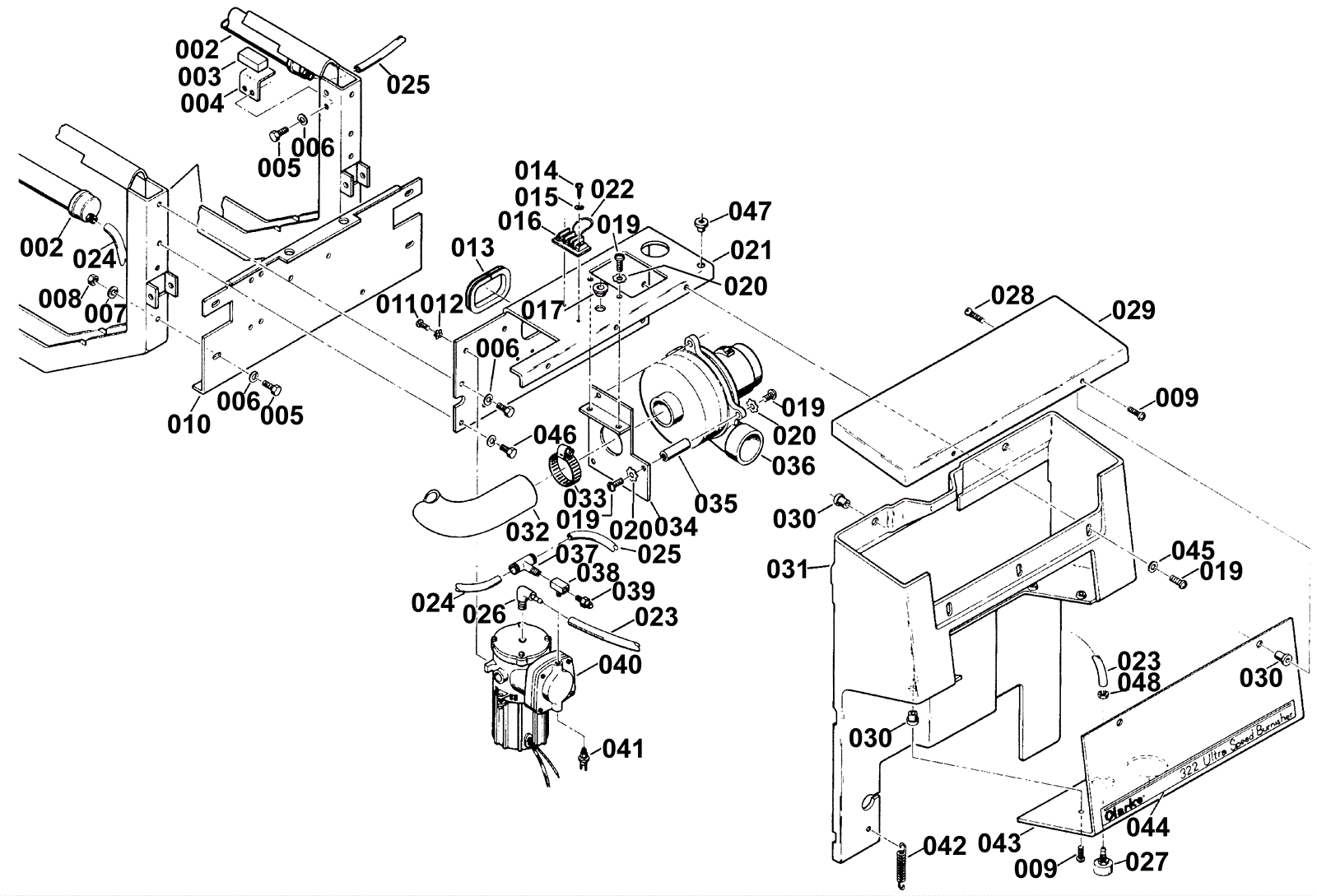

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-0420
|
Main frame assembly (OBSOLETE) |
2 |
|
|
002 |
170-4990
|
Reservoir assembly (OBSOLETE) |
|
|
|
003 |
170-4991
|
Air reservoir gasket |
2 |
|
|
004 |
170-4992
|
Air resevoir support (OBSOLETE) |
2 |
|
|
005 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
6 |
|
|
006 |
999-0060
|
Washer 1/4 split lock plain finish |
10 |
|
|
007 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
008 |
999-0190
|
Nut 1/4-20 hex plain finish |
4 |
|
|
009 |
999-0625
|
Screw 1/4-20 x 1 1/4 pan head phillips stainless steel |
4 |
|
|
010 |
170-4993
|
Spring bracket (OBSOLETE) |
1 |
|
|
011 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
3 |
|
|
012 |
999-0311
|
Washer #10 external star lock zinc plated |
3 |
|
|
013 |
170-4994
|
Trim (OBSOLETE) |
1 |
|
|
014 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
|
015 |
999-0148
|
Washer #6 external star lock zinc plated |
2 |
|
|
016 |
170-4996
|
Terminal block assembly (OBSOLETE) |
1 |
|
|
017 |
170-0496
|
Bushing |
1 |
|
|
019 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
11 |
|
|
020 |
999-0017
|
Washer 1/4 external star lock |
8 |
|
|
021 |
170-4848
|
Bracket (OBSOLETE) |
1 |
|
|
022 |
170-4997
|
Wire (OBSOLETE) |
1 |
|
|
023 |
170-4998
|
Compressor hose (OBSOLETE) |
1 |
|
|
024 |
170-4999
|
Air hose (OBSOLETE) |
|
|
|
025 |
170-4968
|
Hose (OBSOLETE) |
|
|
|
026 |
170-5140
|
Elbow (OBSOLETE) |
1 |
|
|
027 |
170-5141
|
Compressor filter (OBSOLETE) |
1 |
|
|
028 |
170-3428
|
Clutch plate screws |
2 |
|
|
029 |
170-4907
|
Front top cover (OBSOLETE) |
1 |
|
|
030 |
170-4910
|
Nut well |
6 |
|
|
031 |
170-5143
|
Front cover (OBSOLETE) |
1 |
|
|
032 |
170-5144
|
Vacuum to tank hose (OBSOLETE) |
1 |
|
|
033 |
997-2007
|
Hose clamp |
1 |
|
|
034 |
170-5145
|
Vacuum mounting bracket (OBSOLETE) |
1 |
|
|
035 |
170-0584
|
Vacuum motor bracket spacer (OBSOLETE) |
3 |
|
|
036 |
991-1217
|
36V 2 stage vacuum motor tangential with snout |
1 |
|
|
037 |
170-5146
|
Male branch tee (OBSOLETE) |
|
|
|
038 |
170-4843
|
Tee (OBSOLETE) |
|
|
|
039 |
170-4844
|
Relief valve (OBSOLETE) |
|
|
|
040 |
170-4847
|
Compressor (OBSOLETE) |
|
|
|
041 |
170-5147
|
Pressure switch (OBSOLETE) |
|
|
|
042 |
N/A
|
Not available |
1 |
Idler tension spring |
|
043 |
170-5148
|
Front cover panel (OBSOLETE) |
1 |
|
|
044 |
170-8097
|
Baffle foam (OBSOLETE) |
1 |
|
|
045 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
|
046 |
170-4911
|
Screw 1/4-20 x 3/4 pan type F (OBSOLETE) |
4 |
|
|
047 |
170-5150
|
Snap bushing (OBSOLETE) |
1 |
|
|
048 |
999-0247
|
Nut 3/8-16 hex jam plain finish |
1 |
|
|
N/S |
170-4841
|
Connecting rod, valve plate and eccentric assembly (OBSOLETE |
1 |
|
|
N/S |
170-4840
|
Air compressor kit (OBSOLETE) |
1 |
|
|
N/S |
170-4839
|
Bearing and set screw assembly (OBSOLETE) |
1 |
|
|
