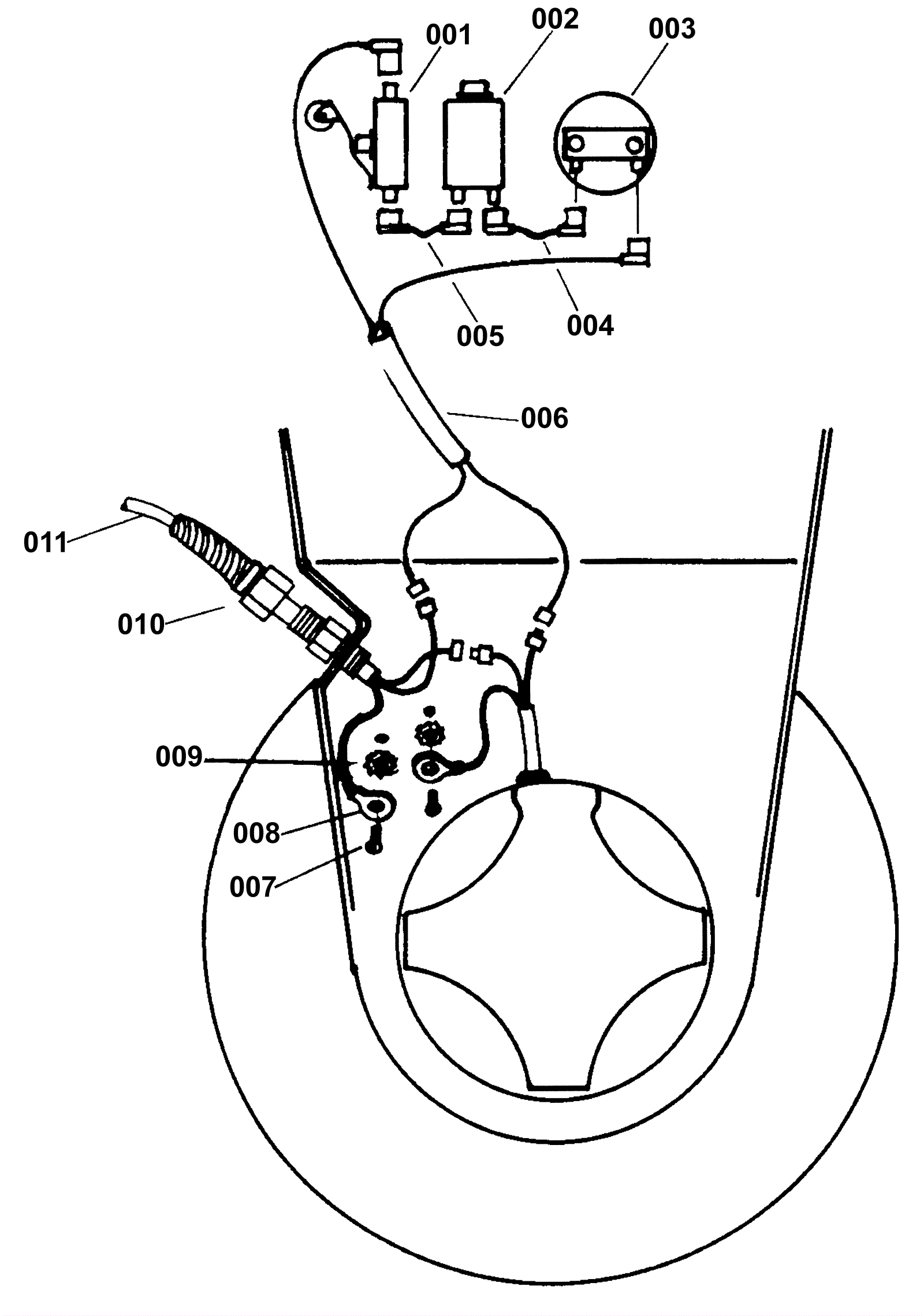

PV2500 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 170-3308 On/off switch (OBSOLETE) $25.36 1 usually ships 16-41 days
002 170-2225 20 amp circuit breaker $28.38 1 usually ships 4-15 days
004 170-1320 Breaker wire (OBSOLETE) Call for price 1 usually ships 1-5 days
005 170-6425 Processed wire (OBSOLETE) Call for price 1 usually ships 1-5 days
006 170-6426 Wire harness (OBSOLETE) $20.32 1 usually ships 1-5 days
007 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 1 ships same day
008 170-6014 Terminal clip $2.35 1 usually ships 4-15 days
009 999-1083 Washer #8 internal star lock stainless steel $0.99 1 ships same day
011 170-3311 Power cord $314.15 1 usually ships 1-5 days
