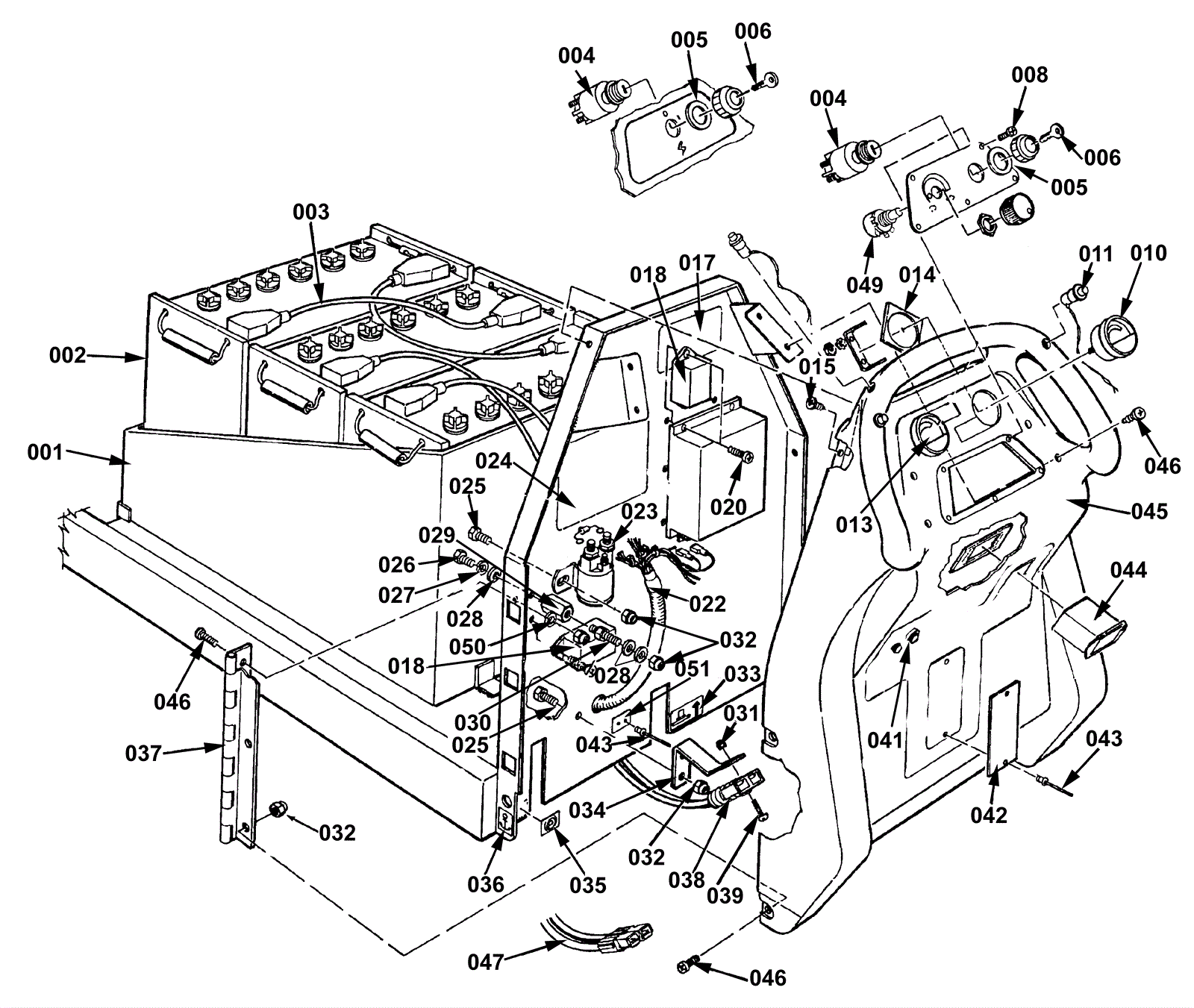

FUSION 20I Lower Main Assembly - 3

#PartDescriptionPriceReqNotesAvailability
001 170-1287 Battery box (OBSOLETE) $210.00 1 usually ships 1-5 days
002 NOTE 2 Please See Batteries and Charger Page Call for price 3 usually ships 1-5 days
003a 998-0010 Battery jumper cable - ring type (red) $4.84 2 (For use with top, bolt type post batteries) ships same day
003b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 2 (NON-OEM) usually ships 5-16 days
004 170-0053 Key switch with 2 keys $97.09 1 usually ships 16-41 days
005 170-7051 Washer nylon $3.45 1 usually ships 4-15 days
006 991-1635 Key $2.23 1 ships same day
008 270-0007 Console label $8.80 usually ships 1-5 days
010 170-3923 Pad pressure meter $183.65 1 usually ships 1-5 days
011 170-1331 Forward switch $88.99 2 usually ships 16-41 days
013 170-0054 Voltmeter (OBSOLETE) $130.68 1 usually ships 1-5 days
014 170-3924 Spacer (OBSOLETE) $9.75 2 usually ships 1-5 days
015 170-2128 Screw 1/4 20 x 3/4 $10.52 3 usually ships 1-5 days
017 170-3925 Rear electrical label (OBSOLETE) $8.90 1 usually ships 1-5 days
018 170-0118 5 second relay (OBSOLETE) $254.16 1 usually ships 16-41 days
020 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
022 170-3926 Harness (OBSOLETE) $252.44 1 usually ships 1-5 days
023 172-2805 36V contactor $100.10 1 ships same day
024 170-3927 Front electrical label (OBSOLETE) $8.10 1 usually ships 1-5 days
025 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 3 ships same day
026 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 1 ships same day
027 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
028 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
029 170-0063 Insulated stand off $11.75 1 usually ships 1-5 days
030 170-0064 Stud 1/4-20 $12.31 1 usually ships 1-5 days
031 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
032 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 10 ships same day
033 170-3928 Headlift label (OBSOLETE) $9.47 1 usually ships 1-5 days
034 170-0090 Power connector bracket (OBSOLETE) $12.10 1 usually ships 1-5 days
035 170-2075 Parking brake label (OBSOLETE) $7.81 1 usually ships 1-5 days
036 170-1922 Tie down label (OBSOLETE) $9.79 2 usually ships 1-5 days
037 170-0061 Cover hinge (OBSOLETE) $73.66 1 usually ships 1-5 days
038 998-0057 Cable assembly with plug $45.98 1 usually ships 3-26 days
039 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
041a 170-3929 70amp circuit breaker (OBSOLETE) $113.41 1 (OEM) usually ships 1-5 days
041b 991-5156 70amp circuit breaker (OBSOLETE) $33.60 1 (NON-OEM) usually ships 3-19 days
042 170-3930 Warning plate (OBSOLETE) $7.81 1 usually ships 16-41 days
043 170-3005 Pop rivet $9.03 3 usually ships 1-5 days
044a 170-0052 Hour meter $111.99 1 (OEM) usually ships 16-41 days
044b 991-7137 Hour meter $78.26 1 (NON-OEM) ships same day
045 170-3931 Rear cover (OBSOLETE) $289.28 1 usually ships 1-5 days
046 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 10 ships same day
047 170-0225 Battery cable $199.52 1 usually ships 16-41 days
049a 170-1479 Potentiometer assembly (OBSOLETE) $76.52 1 Included with 022 usually ships 1-5 days
049b 172-2039 5K potentiometer $63.07 1 Potentiometer only ships same day
050 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 3 ships same day
051 170-5510 Serial tag $2.78 1 usually ships 1-5 days
N/S 170-7079 Traverse decal (OBSOLETE) $8.03 1 usually ships 1-5 days
