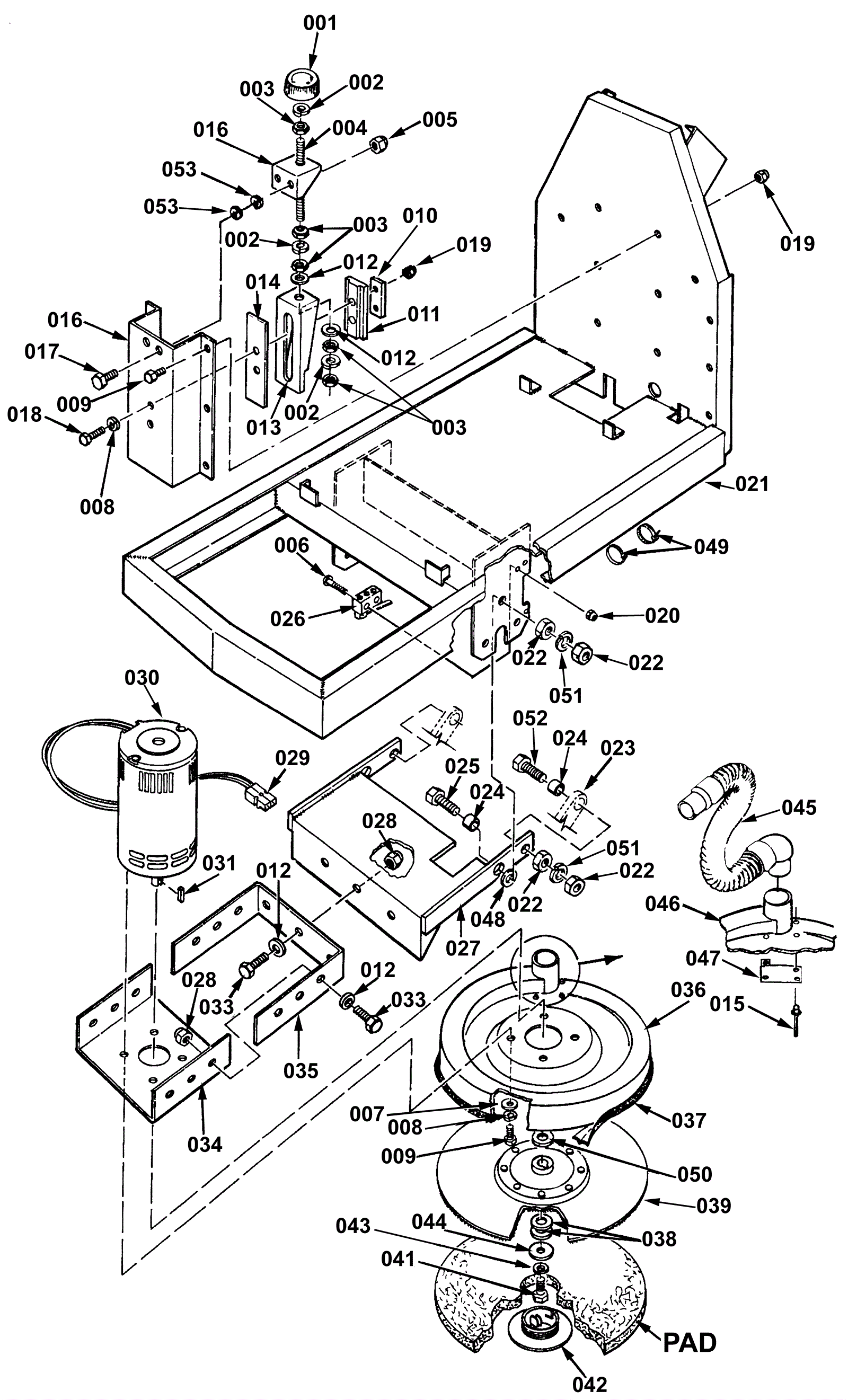

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-1345
|
Brush pressure knob (OBSOLETE) |
1 |
|
|
002 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
3 |
|
|
003 |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
5 |
|
|
004 |
170-3884
|
Adjustment rod (OBSOLETE) |
1 |
|
|
005 |
170-3885
|
Nut 5/16-18 esna |
2 |
|
|
006 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
|
007 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
008 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
009 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
010 |
170-3886
|
Plate nut (OBSOLETE) |
1 |
|
|
011 |
170-3887
|
Head adjustment slide (OBSOLETE) |
1 |
|
|
012 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
11 |
|
|
013 |
170-3888
|
Latch stop (OBSOLETE) |
1 |
|
|
014 |
170-3889
|
Head adjustment guide (OBSOLETE) |
1 |
|
|
015 |
170-3005
|
Pop rivet |
4 |
|
|
016 |
170-3890
|
Head adjustment frame (OBSOLETE) |
1 |
|
|
017 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
018 |
999-0432
|
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
|
019 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
|
020 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
|
021 |
270-0006
|
Frame weldment (OBSOLETE) |
1 |
|
|
022a |
999-0050
|
Nut 1/2-13 hex jam plain finish |
8 |
|
|
022b |
170-3892
|
Nut j1/2 -20 jam |
8 |
after SN XD |
|
023 |
170-3893
|
Linkage bar (OBSOLETE) |
|
|
|
024 |
170-0212
|
Flanged bearing |
4 |
|
|
025a |
999-0116
|
Bolt 1/2-13 x 1 1/2 hex head grade 5 |
2 |
|
|
025b |
999-0711
|
Bolt 1/2-20 x 1 1/2 hex head grade 5 zinc plated |
2 |
after SN XD |
|
026 |
170-0191
|
Snap switch |
1 |
|
|
027 |
170-3895
|
Lift weldment plate (OBSOLETE) |
1 |
|
|
028 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
9 |
|
|
029a |
170-0218
|
Contact pins for charger plug (sold individually) |
2 |
|
|
029b |
170-0009
|
Connector housing |
2 |
|
|
030 |
170-3896
|
Drive motor |
1 |
|
|
031 |
170-3897
|
Key |
1 |
|
|
032 |
170-3898
|
Anchor bracket (OBSOLETE) |
1 |
|
|
033 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
9 |
|
|
034 |
170-3899
|
Motor frame (OBSOLETE) |
1 |
|
|
035 |
170-3900
|
Motor pivot bracket (OBSOLETE) |
1 |
|
|
036a |
170-3901
|
Pad housing assembly (gray) (OBSOLETE) |
1 |
incs 037, 042 and 047 |
|
036b |
170-6214
|
Pad housing assembly (blue) (OBSOLETE) |
1 |
incs 037, 042 and 047 |
|
037 |
170-3453
|
Skirt kit |
1 |
incs 015-036, 037 and 047 |
|
038 |
999-0630
|
Washer 3/4 SAE flat |
3 |
|
|
039 |
170-3902
|
Pad driver assembly |
1 |
incs 042 |
|
041 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
1 |
|
|
042a |
991-2203
|
Big mouth pad holder male thread portion |
1 |
|
|
042b |
991-2202
|
Big mouth pad holder set (blue) |
1 |
|
|
042c |
991-2201
|
Center-Lok II pad holder - right hand thread (black) |
|
|
|
042d |
991-2205
|
Deep lock ring and pad grip ring |
|
|
|
042e |
991-2214
|
Center-Lok II pad holder - left hand thread (red) |
|
|
|
043 |
999-0028
|
Washer 5/16 split lock plain finish |
1 |
|
|
044 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
|
045 |
170-3904
|
Hose (OBSOLETE) |
1 |
|
|
046 |
170-3905
|
Pad housing (OBSOLETE) |
1 |
|
|
047 |
170-3906
|
Air baffle |
1 |
|
|
048 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
6 |
|
|
049 |
170-0080
|
Wire tie |
5 |
|
|
050 |
170-3386
|
Spacer |
1 |
|
|
051 |
999-0126
|
Washer 1/2 split lock |
4 |
|
|
052a |
999-0372
|
Bolt 1/2-13 x 1 3/4 hex head |
2 |
|
|
052b |
999-0145
|
Bolt 1/2-20 x 1 3/4 hex head grade 5 plain finish |
2 |
after SN XD |
|
053 |
170-7027
|
T-nut 10-32 |
8 |
|
|
N/S |
999-0723
|
Screw 10-32 x 1/2 pan head slotted stainless steel |
8 |
|
|
