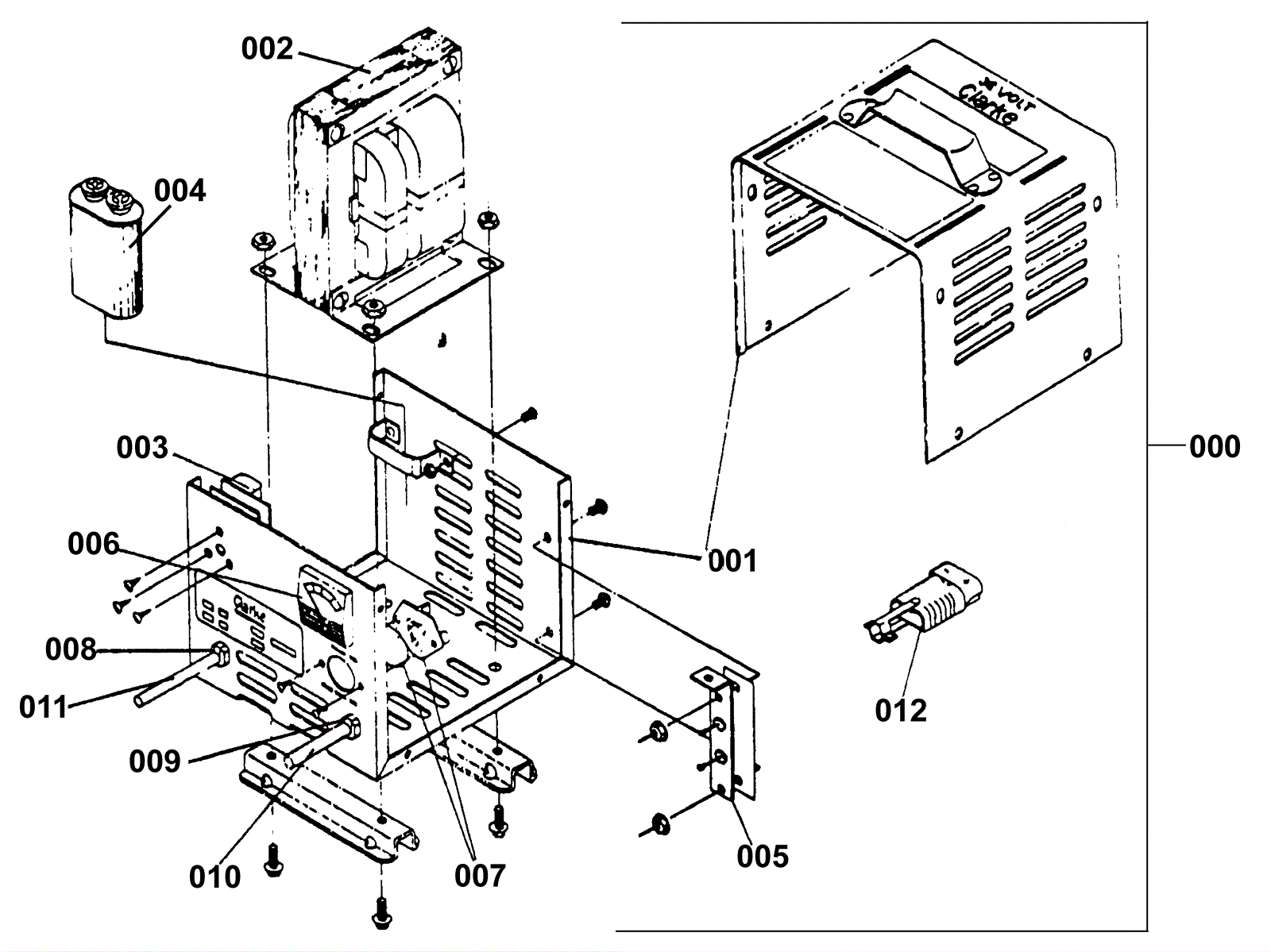

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
162-5062
|
36V 20amp battery charger with small SB50 gray plug |
|
|
|
001 |
170-1277
|
Charger case (OBSOLETE) |
|
|
|
002 |
170-1278
|
Transformer (OBSOLETE) |
|
|
|
003 |
162-5036
|
36V 3-wire electronic timer (old style) (OBSOLETE) |
|
|
|
004 |
272-8920
|
Capacitor |
|
|
|
005 |
272-5296
|
Heat sink assembly with diode (OBSOLETE) |
|
|
|
006 |
170-1282
|
Ammeter |
|
|
|
007a |
372-1254
|
Fuse assembly |
|
|
|
007b |
162-5024
|
24V & 36V fuse holder assembly (cap not sold separately) |
|
|
|
008 |
170-1284
|
Strain relief |
|
|
|
009 |
170-1284
|
Strain relief |
|
|
|
010 |
170-1285
|
D.C. cord assembly (OBSOLETE) |
|
|
|
011 |
170-1286
|
A.C. cord assembly (OBSOLETE) |
|
|
|
012a |
991-2105
|
SB50 50amp charger plug with pins (gray) |
|
|
|
012b |
170-7194
|
DC charger plug lock key |
|
|
|
N/S |
162-9024
|
36V 12amp battery charger with small SB50 gray plug |
|
|
|
