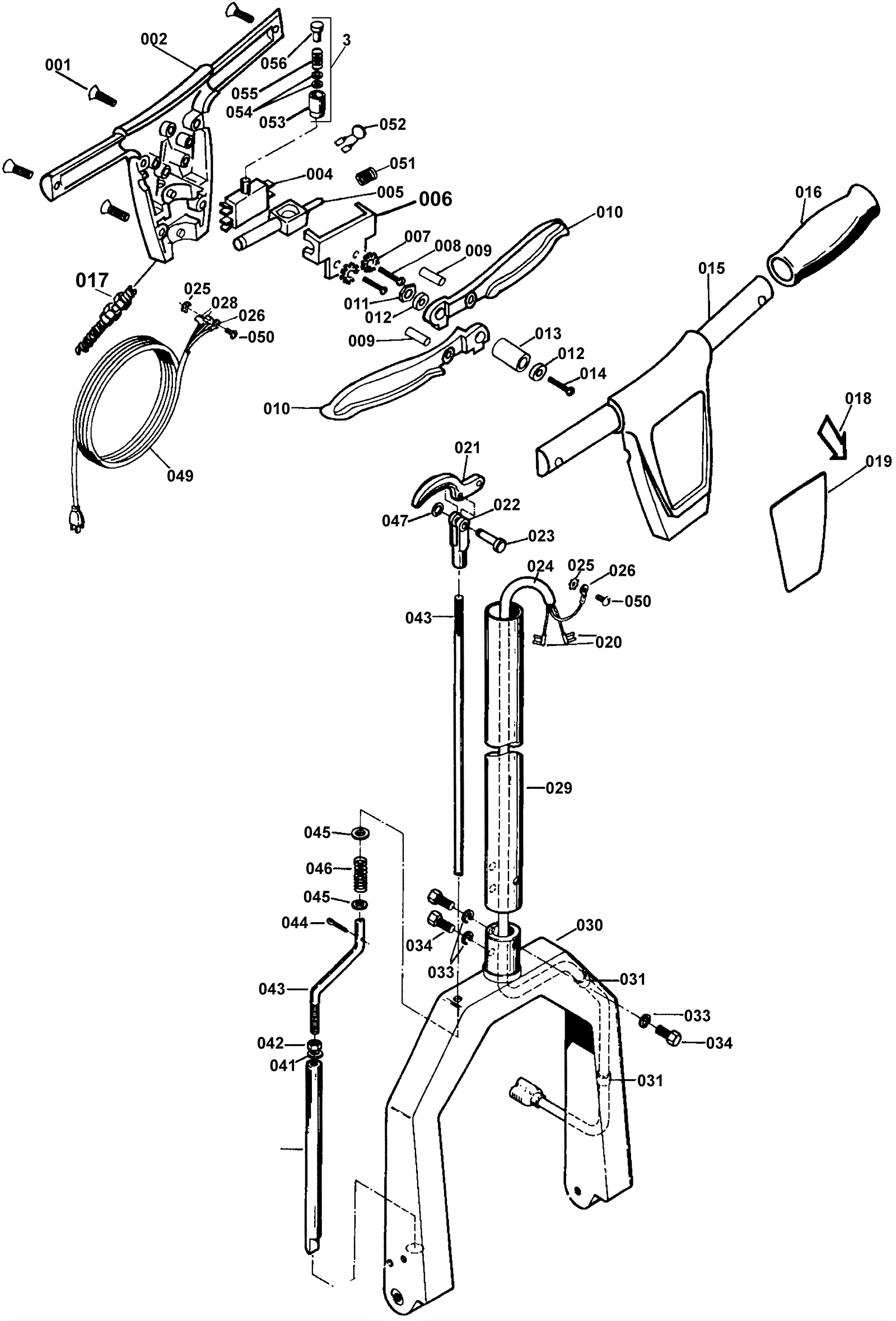

Handle Assembly (Beginning w/ Serial Number JG0000)

#PartDescription ReqNotesAvailability
001 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 5
002 170-4621 Switch housing cover (OBSOLETE) 1
003 170-6003 Switch adapter kit 1
004 N/A Not available 1 Switch
005 170-1227 Interlock switch (OBSOLETE) 1
006 170-1229 Bracket 1
007 170-0148 Clamp weldment 2
008 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
009 170-1232 Pin 3/16 x 1 inch (OBSOLETE) 2
010 170-1233 Lever 2
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
012 999-0006 Washer 3/16 flat zinc plated 2
013 170-1234 Spacer (OBSOLETE) 1
014 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 1
016 170-0532 Handle grip (OBSOLETE) 2
018 170-5574 Interlock label 1
019 170-5945 Switch plate (OBSOLETE) 1
020 170-5681 Terminal clip 2
021 170-5946 Yoke release lever (OBSOLETE) 1
022 170-5947 Latch rod yoke (OBSOLETE) 1
025 999-0092 Washer #8 internal star lock zinc plated 2
026 170-6014 Terminal clip 2
027 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 2
028 170-3499 Terminal clip 2
029 170-5951 Handle tube (OBSOLETE) 1
030 170-5952 Handle yoke (OBSOLETE) 1
031 170-3488 Wire clamp (OBSOLETE) 2
032 999-0460 Nut 10-32 hex 2
033 999-0028 Washer 5/16 split lock plain finish 3
034 170-3556 Screw 5/16-1/2 (OBSOLETE) 3
035 170-0705 Washer 1/2 x 3/64 2
036 170-0398 Connecting pin 2
037 170-5988 Bushing (OBSOLETE) 2
038 170-1276 Inside bushing (OBSOLETE) 2
039 997-2516 Cotter pin 2
040 170-5953 Latch boss rod (OBSOLETE) 1
041 999-0017 Washer 1/4 external star lock 1
042 170-5954 Nut 1/4-28 hex (OBSOLETE) 1
043 170-5955 Handle latch rod (OBSOLETE) 1
044 170-3355 Cotter pin 1/16x5/8 1
045 999-0016 Washer 1/4 flat plain finish 2
046 170-5958 Rod return spring (OBSOLETE) 1
047 170-5963 Cover 1
048 999-0311 Washer #10 external star lock zinc plated 2
049 170-3659 Cord assembly, 75 ft. (OBSOLETE) 1
050 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated 2
051 170-5561 Switch lever spring 1
052 170-5957 Varistor assembly (OBSOLETE) 1
