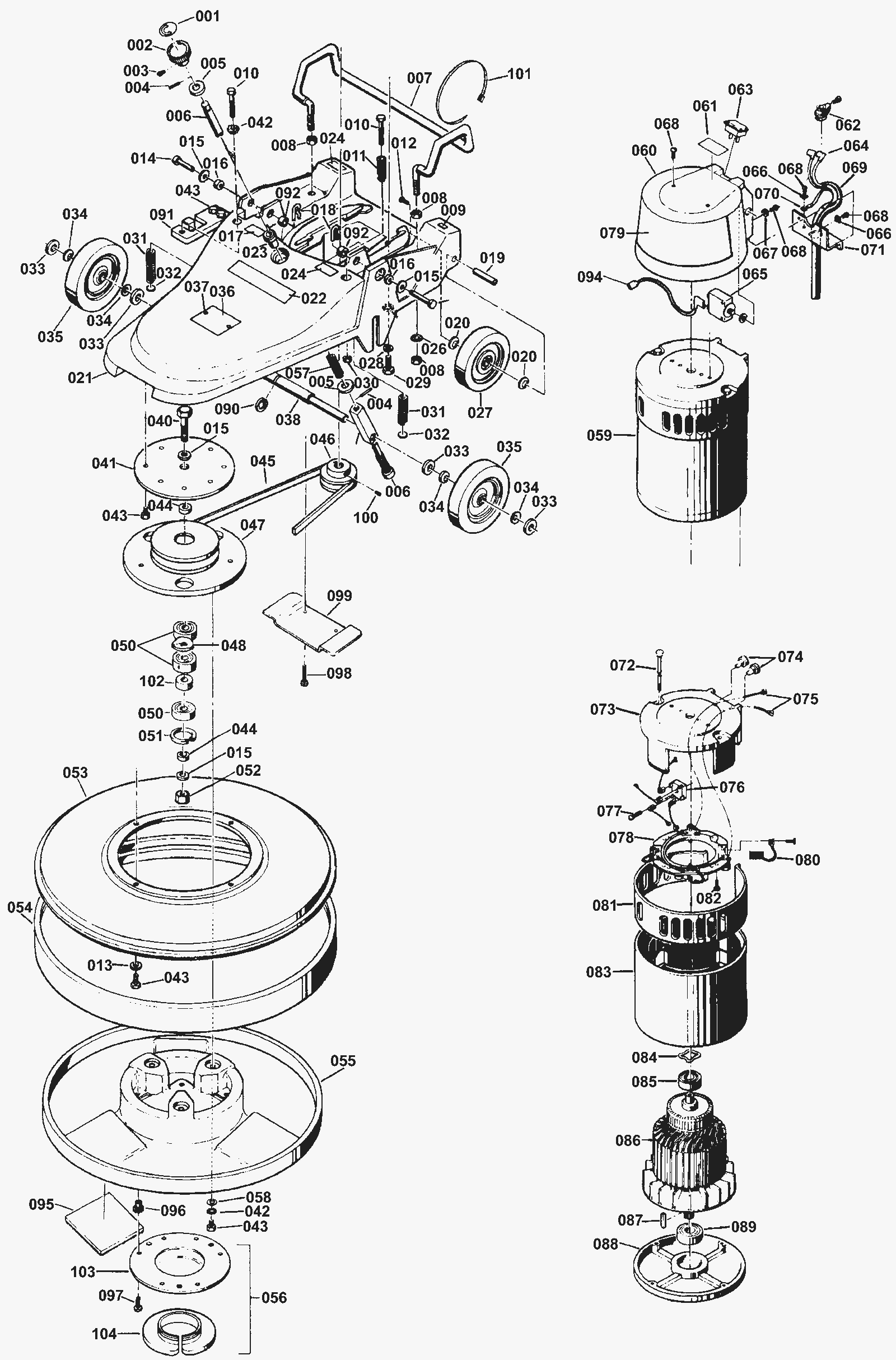

Frame Assembly (Serial Number Baginning w/ ND 1732)

#PartDescription ReqNotesAvailability
001 170-5980 Pad leveling label (OBSOLETE) 1
002 170-3368 Knob (OBSOLETE) 1
003 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 1
004 170-5981 Roll pin 1/8 x 1 2
005 170-2414 Washer flat 7
006 170-5983 Adjustment shaft (OBSOLETE) 1
007 170-5984 Cord wrap rod (OBSOLETE) 1
008 999-0247 Nut 3/8-16 hex jam plain finish 4
009 N/A Not available 1 Inspection label
010 170-5985 Screw 1/4-20 x 2-1/4 hex (OBSOLETE) 5
011 170-5986 Spring (OBSOLETE) 1
012 170-5987 Screw 1/4-20 x 1-1/4 socket (OBSOLETE) 2
013 999-0016 Washer 1/4 flat plain finish 6
014 170-0398 Connecting pin 2
015 170-0705 Washer 1/2 x 3/64 4
016 170-5988 Bushing (OBSOLETE) 2
017 N/A Not available Not available
018 997-2516 Cotter pin 2
019 170-2565 Rear wheel shaft (OBSOLETE) 2
020 170-5527 Washer 13/32 x 11/16 spring (OBSOLETE) 4
021 170-5989 Main frame (OBSOLETE) 1
022 170-5990 Burnisher label (OBSOLETE) 1
023 170-2550 Wheel adjustment bushing (OBSOLETE) 1
024 N/A Not available 1 Caution label
025 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
026 999-0201 Washer 3/8 internal star lock 2
027 170-3290 Transport wheel 4 inches (OBSOLETE) 2
028 999-0034 Washer 3/8 split lock plain finish 4
029 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish 4
030 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
031 170-5993 Spring (OBSOLETE) 2
032 170-2551 Axle wear bushing (OBSOLETE) 2
033 170-3252 Motor washer 4
034 272-8202 Bowed washer 4
035 170-3289 Drive wheel (OBSOLETE) 2
036 170-5541 Fire warning plate (OBSOLETE) 1
037 170-0775 1/8 inch rivet pop aluminum 2
038 170-3458 Shaft (OBSOLETE) 1
039 170-5994 Shaft 1
040 170-3251 Screw sheave (OBSOLETE) 1
041 170-5995 Plate (OBSOLETE) 1
042 999-0017 Washer 1/4 external star lock 1
043 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 19
044 170-5997 Sheave spacer (OBSOLETE) 2
045 170-5998 Drive belt (OBSOLETE) 1
046 170-5999 Pulley (OBSOLETE) 1
047 170-6000 Sheave (OBSOLETE) 1
048 170-0598 Bearing spacer 1
050 170-3292 Ball bearing (OBSOLETE) 3
051 170-0652 Retaining ring (OBSOLETE) 1
052 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
053 170-0684 20 inch Shield (OBSOLETE) 1
054 170-1253 20 inch bumper (OBSOLETE) 1
055 N/A Not available 1
057 170-0113 Spring (OBSOLETE) 2
058 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 3
059 170-2057 Motor 120v (OBSOLETE) 1
060 170-0750 Cover (OBSOLETE) 1
061 170-0771 Motor brushes label (OBSOLETE) 1
062 170-2564 Strain relief (OBSOLETE) 1
063 170-0785 Light assembly 120v (OBSOLETE) 1
064 170-3499 Terminal clip 2
065 170-0940 Circuit breaker 1
066 999-0311 Washer #10 external star lock zinc plated 3
067 999-0006 Washer 3/16 flat zinc plated 2
068 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 7
069 170-0956 Cord (OBSOLETE) 1
070 170-6014 Terminal clip 1
071 170-1178 Bracket 1
073 170-1250 Bracket (OBSOLETE) 1
074 170-2574 Lead bushing (OBSOLETE) 2
075 N/A Not available 2 Rectifier assembly
076 163-0063 240V rectifier 1
077 170-0968 Mounting screw (OBSOLETE) 1
078 170-2579 Brush board assembly (OBSOLETE) 1
079 170-9975 Clarke label (OBSOLETE) 1
080 170-2342 Carbon brush (OBSOLETE) 4
081 N/A Not available 1 Brush band cover
082 170-1504 Screw 5
083 170-1251 Field assembly 120v (OBSOLETE) 1
084 170-0379 Wave washer 1
085 170-0321 Front end bearing 1
086 170-1252 Armature assembly 120v (OBSOLETE) 1
087 170-1256 Key 1
088 170-1257 Plate (OBSOLETE) 1
089 372-1890 Bearing (rear) 1
090 170-1359 Snap ring (OBSOLETE) 2
091 170-1261 Striker plate (OBSOLETE) 1
092 170-1276 Inside bushing (OBSOLETE) 2
094 170-1320 Breaker wire (OBSOLETE) 1
095 170-1412 Pad driver section (OBSOLETE) 3
096 170-1505 Nut well 6
097 170-4632 Screw 8 - 32 x 1/2 6
098 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 2
099 170-1587 Belt gaurd (OBSOLETE) 1
100 170-1588 Screw 5/16-18 x 3/8 set 1
101 170-1693 Wire tie 1
102 170-1596 Bearing spacer (OBSOLETE) 1
104 991-2209 Split retainer - pad holder ring (OBSOLETE) 1
