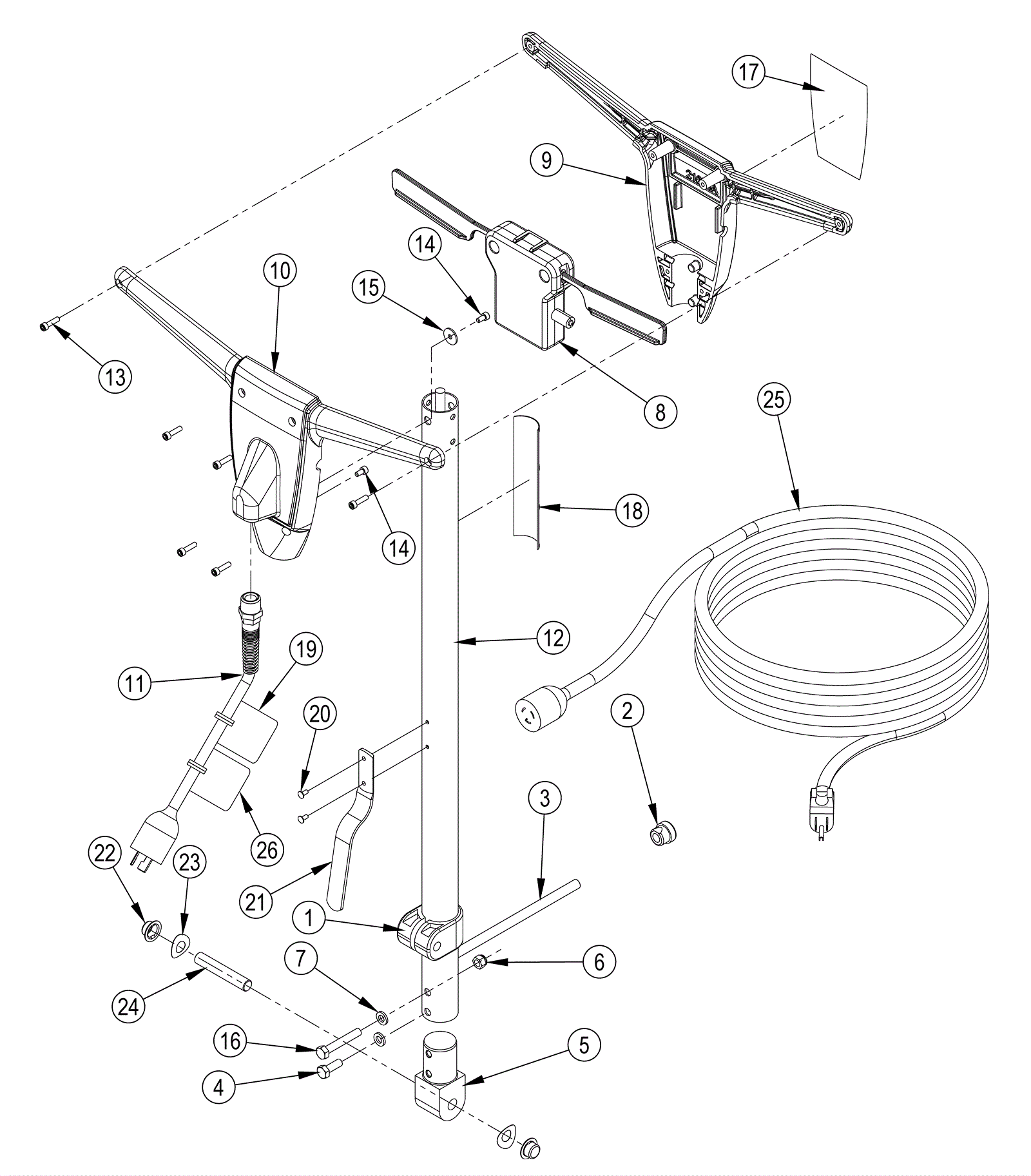

OBS-18 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-1239 Clamp $95.66 1 ships same day
2 170-5583 Strain relief $7.81 1 usually ships 4-15 days
3 154-3954 Cord interconnect $13.84 1 usually ships 4-15 days
4 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 1 ships same day
5 154-3955 Handle tube tongue $74.75 1 usually ships 4-15 days
6 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
7 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
8 270-0077 Switch assembly $131.95 1 ships same day
9 270-0143 Front handle $95.62 1 ships same day
10 270-0145 Rear handle $151.35 1 ships same day
11 154-5169 Adapter cord $84.26 1 usually ships 4-15 days
12 154-3958 Handle tube $128.07 1 usually ships 4-15 days
13 999-1275 Screw 10-32 x 3/4 hex head stainless steel $1.23 6 ships same day
14 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 2 ships same day
15 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
16 999-0354 Screw 5/16-18 x 2 round head slotted zinc plated $0.99 1 ships same day
17 270-0650 Handle decal (OBSOLETE - SEE NOTE) $6.82 1 usually ships 4-15 days
18 154-5170 Warning decal $4.69 1 usually ships 4-15 days
19 270-0652 Warning decal $6.03 1 usually ships 1-5 days
20 154-3960 5/32 inch rivet $12.31 2 usually ships 16-41 days
21 373-3005 Hook cord $36.32 1 usually ships 16-41 days
22 170-6076 Pal nut $10.85 2 usually ships 16-41 days
23 272-8202 Bowed washer $3.30 2 ships same day
24 373-3015 Shaft-handle pivot $15.07 1 usually ships 16-41 days
25 154-5171 12/3 powercord 40 foot $273.96 1 usually ships 4-15 days
26 270-0652 Warning decal $6.03 1 usually ships 1-5 days
