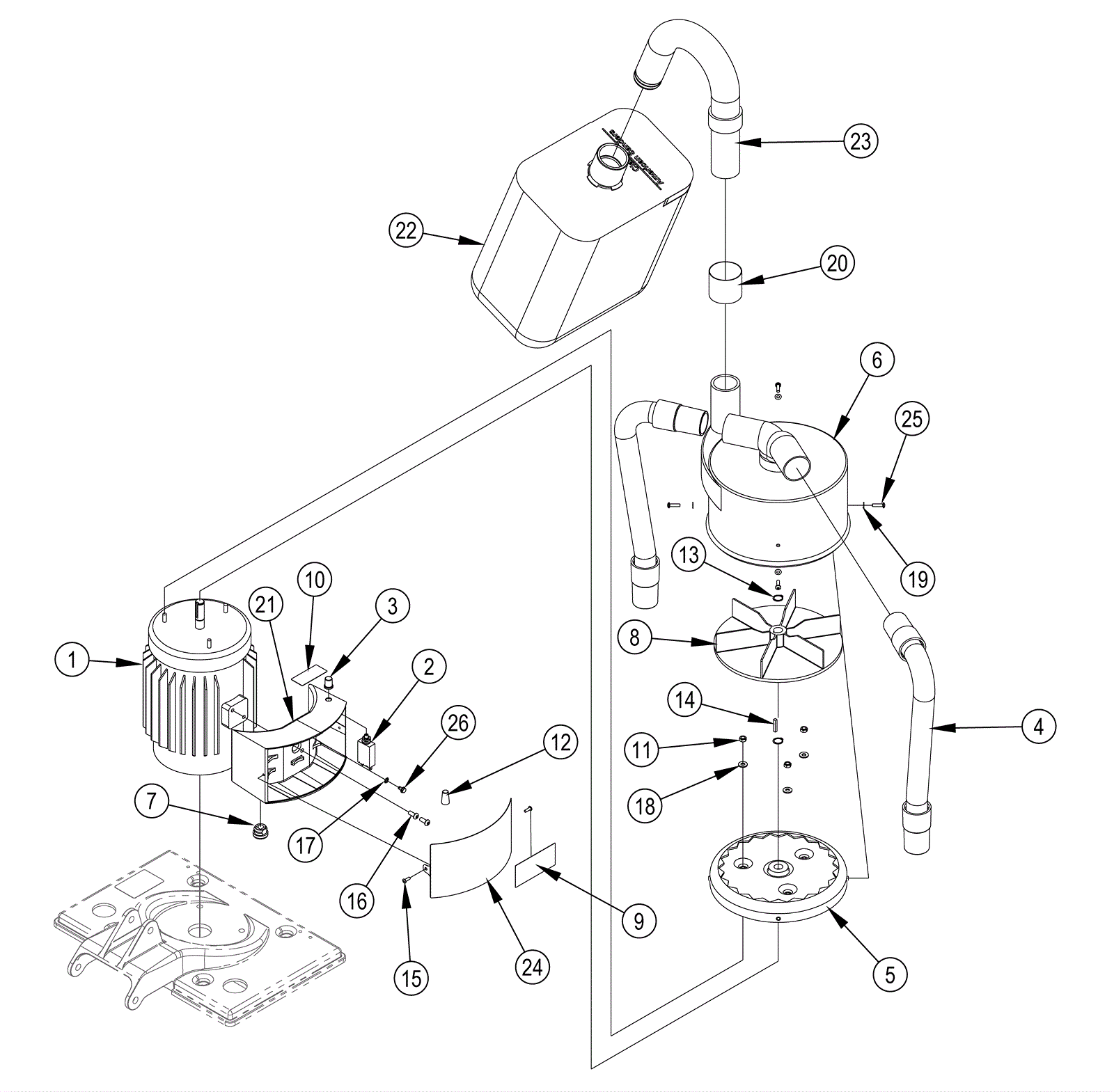

OBS-18 Dust Control Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 270-0657 115V motor $1,209.68 1 (Baldor model) usually ships 1-5 days
1b 154-2805 Starter switch $162.45 1 (Baldor model) usually ships 4-15 days
1c 270-0151 Run capacitor $138.18 1 (Baldor model) usually ships 4-15 days
1d 270-0150 Start capacitor $59.19 1 (Baldor model) usually ships 4-15 days
1e N/A Not available Call for price 1 (Imperial model) usually ships 3-26 days
1g 270-0151 Run capacitor $138.18 1 (Imperial model) usually ships 4-15 days
1h 270-0150 Start capacitor $59.19 1 (Imperial model) usually ships 4-15 days
1i 270-0657 115V motor $1,209.68 1 (model 07121A) usually ships 1-5 days
1j 372-1878 Start switch $334.48 1 (model 07121A) usually ships 4-15 days
2a 172-9572 15amp circuit breaker $77.12 1 (after October 2011) usually ships 16-41 days
2b 170-0531 15amp circuit breaker $62.16 1 (before November 2011) usually ships 1-5 days
2c 170-5182 Terminal $4.22 1 usually ships 4-15 days
2d 991-8539 15amp circuit breaker $7.74 1 (NON-OEM) ships same day
3 172-0231 Reset button boot $49.63 1 (after October 2011) usually ships 16-41 days
4 372-1767 Squeegee hose (OBSOLETE) $120.08 2 usually ships 16-41 days
5 270-0666 Blower housing cover assembly $379.27 1 usually ships 4-15 days
6 270-0659 Blower housing (OBSOLETE) $172.26 1 usually ships 4-15 days
7 154-3948 7/8 inch strain relief bushing $8.06 1 usually ships 4-15 days
8 270-0658 Fan $55.91 1 usually ships 4-15 days
9 373-3016 Decal $12.31 1 usually ships 16-41 days
10 372-1644 Decal $12.31 1 usually ships 16-41 days
11 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
12 170-5584 Connector $1.21 1 usually ships 1-5 days
13 270-0661 Retaining ring $2.29 2 usually ships 4-15 days
14 170-1679 Square keyway $3.01 1 usually ships 4-15 days
15 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
16 272-8481 Screw 1/4-20 x 5/8 socket $8.07 2 usually ships 1-5 days
17 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
18 999-0311 Washer #10 external star lock zinc plated $0.99 3 ships same day
19 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
20 154-5167 Dust pipe seal $8.86 1 usually ships 4-15 days
21 154-3947 Start motor enclosure $197.42 1 usually ships 4-15 days
22 372-1676 Bag $31.28 1 usually ships 4-15 days
23 154-5168 Exhaust weldment tube $236.72 1 usually ships 4-15 days
24 154-3949 Enclosure cover $45.85 1 usually ships 4-15 days
25 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 4 ships same day
26 154-3951 Screw #10 x 3/8 inch $1.21 1 usually ships 4-15 days
