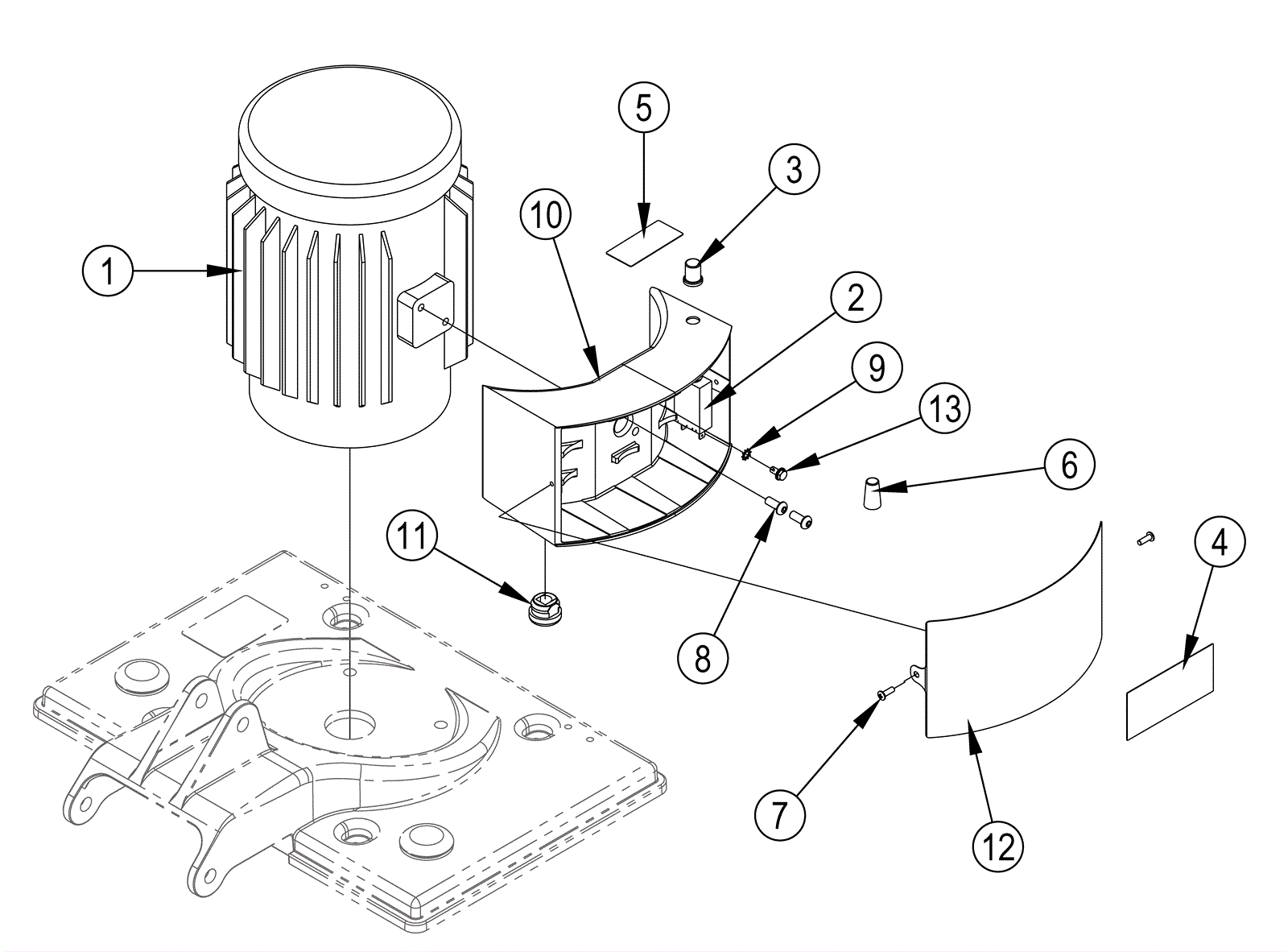

OBS-18 Standard Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 154-3936 115V Motor $1,299.42 1 (Baldor model) (includes 1b-1d) usually ships 4-15 days
1b 154-2805 Starter switch $162.45 1 (Baldor model) usually ships 4-15 days
1c 270-0151 Run capacitor $138.18 1 (Baldor model) usually ships 4-15 days
1d 270-0150 Start capacitor $59.19 1 (Baldor model) usually ships 4-15 days
1e N/A Not available Call for price 1 (Imperial model) (includes 1f-1h) usually ships 3-26 days
1g 270-0151 Run capacitor $138.18 1 (Imperial model) usually ships 4-15 days
1h 270-0150 Start capacitor $59.19 1 (Imperial model) usually ships 4-15 days
1i 154-5165 1hp motor (OBSOLETE) $1,388.93 1 (model 07122A) (includes 1i-1l) usually ships 4-15 days
1j 372-1878 Start switch $334.48 1 (model 07122A) usually ships 4-15 days
1k 270-0151 Run capacitor $138.18 1 (model 07122A) usually ships 4-15 days
1l 270-0150 Start capacitor $59.19 1 (model 07122A) usually ships 4-15 days
2a 172-9572 15amp circuit breaker $77.12 1 (after October 2011) usually ships 16-41 days
2b 991-8539 15amp circuit breaker $7.74 1 (NON-OEM) ships same day
2c 170-0531 15amp circuit breaker $62.16 1 (before November 2011) usually ships 1-5 days
2d 170-5182 Terminal $4.22 1 usually ships 4-15 days
3 172-0231 Reset button boot $49.63 1 (after October 2011) usually ships 16-41 days
4 373-3016 Decal $12.31 1 usually ships 16-41 days
5 372-1644 Decal $12.31 1 usually ships 16-41 days
6 170-5584 Connector $1.21 1 usually ships 1-5 days
7 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
8 272-8481 Screw 1/4-20 x 5/8 socket $8.07 2 usually ships 1-5 days
9 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
10 154-3947 Start motor enclosure $197.42 1 usually ships 4-15 days
11 154-3948 7/8 inch strain relief bushing $8.06 1 usually ships 4-15 days
12 154-3949 Enclosure cover $45.85 1 usually ships 4-15 days
13 154-3951 Screw #10 x 3/8 inch $1.21 1 usually ships 4-15 days
