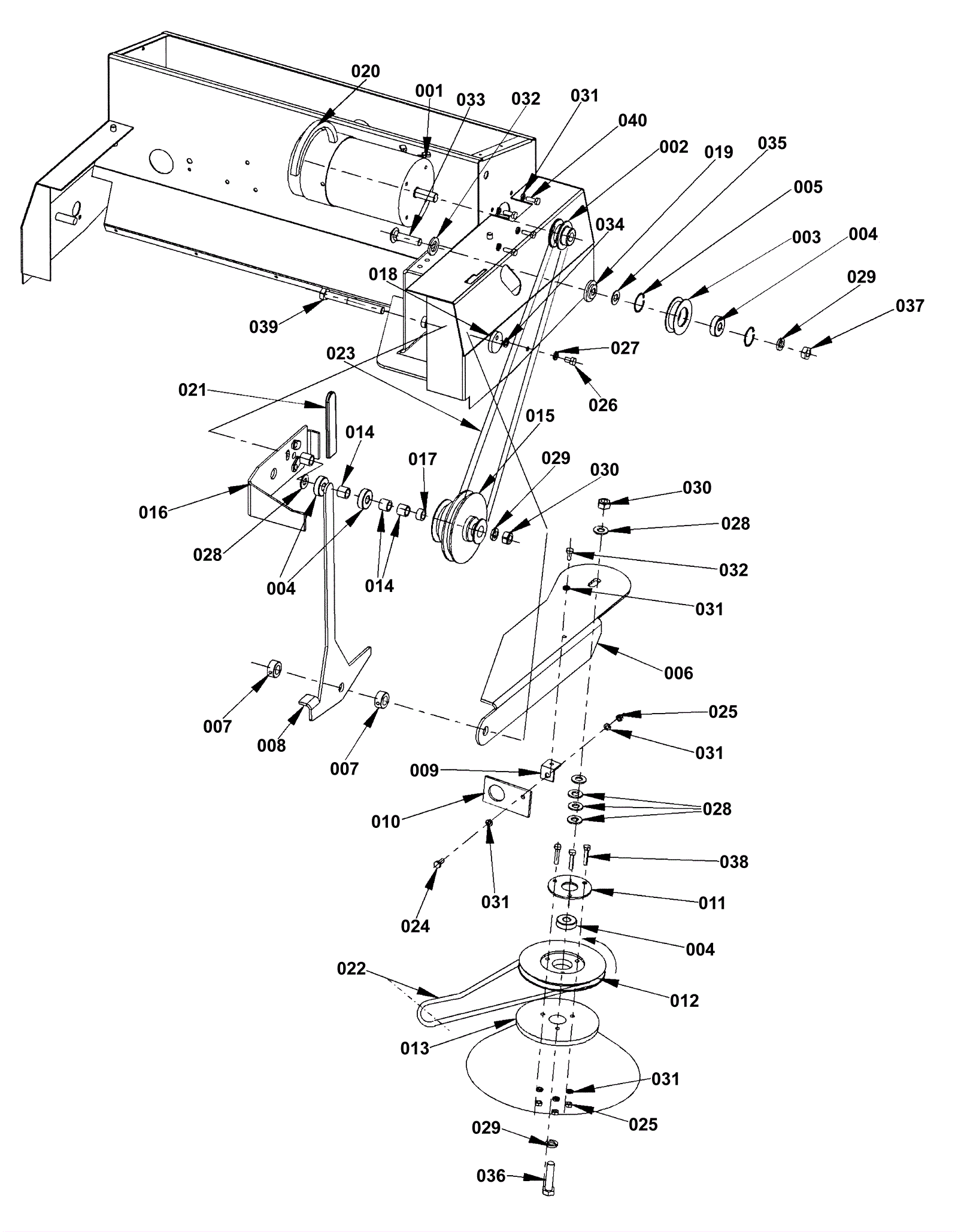

ENCORE R34 Broom Drive Sweeper Option

#PartDescriptionPriceReqNotesAvailability
001 170-7623 Drive motor (OBSOLETE) $1,171.72 1 usually ships 1-5 days
002 170-7674 Motor pulley (OBSOLETE) $23.32 1 usually ships 1-5 days
003 170-7673 Idler pulley (OBSOLETE) $48.73 1 usually ships 1-5 days
004 170-7639 Bearing $52.67 4 usually ships 1-5 days
005 170-7671 Bearing retainer ring $10.52 2 usually ships 1-5 days
006 170-7718 Side broom arm (OBSOLETE) $58.08 1 usually ships 1-5 days
007 170-7659 5/8 inch collar $13.17 2 usually ships 1-5 days
008 170-7719 Brush lift lever (OBSOLETE) $73.59 1 usually ships 1-5 days
009 170-7658 Bracket $52.80 1 usually ships 1-5 days
010 170-7720 Belt guide plate $67.10 1 usually ships 1-5 days
011 170-7664 Side broom pulley flange (OBSOLETE) $34.98 1 usually ships 1-5 days
012 170-7663 Side broom pulley (OBSOLETE) $97.35 1 usually ships 1-5 days
013 170-7661 Side broom $112.20 1 usually ships 1-5 days
014 170-7653 Pulley shaft spacer (OBSOLETE) $8.25 3 usually ships 1-5 days
015 170-7721 Counter shaft pulley (OBSOLETE) $289.96 1 usually ships 1-5 days
016 170-7651 Right hand main broom support (OBSOLETE) $177.10 1 usually ships 1-5 days
017 170-7652 Spacer (OBSOLETE) $7.59 1 usually ships 1-5 days
018 170-7722 Side broom stop (OBSOLETE) $18.15 1 usually ships 1-5 days
019 170-7723 Idler spacer (OBSOLETE) $26.40 1 usually ships 1-5 days
020 170-7724 Gasket (OBSOLETE) Call for price 6 ft usually ships 1-5 days
021 170-7725 Handle (OBSOLETE) $8.25 1 usually ships 1-5 days
022 170-7662 V-Belt (OBSOLETE) $30.03 1 usually ships 1-5 days
023 170-7726 V belt $36.85 1 usually ships 1-5 days
024 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
025 170-6639 Nut 1/4-20 $13.17 4 usually ships 13-18 days
026 170-7727 Screw 5/16 - 18 x 1/2 hex head cap $12.31 1 usually ships 13-18 days
027 170-6686 Washer 5/16 lock $10.85 1 usually ships 13-18 days
028 999-0114 Washer 1/2 SAE flat $0.99 6 ships same day
029 170-6788 Lock helical spring 1/2 medium washer $12.31 3 usually ships 1-5 days
030 170-6871 Nut 1/2-13 $12.31 2 usually ships 1-5 days
031 999-0060 Washer 1/4 split lock plain finish $0.99 10 ships same day
032 170-7728 Washer 1 1/2 x 3/4 x 1/8 flat $12.31 1 usually ships 1-5 days
033 170-7729 Bolt 12-13 x 2 carriage (OBSOLETE) $5.94 1 usually ships 1-5 days
034 170-6750 Washer 5/16 type A $10.85 1 usually ships 1-5 days
035 170-6870 Washer 1 x 33/64 x 1/16 $12.31 1 usually ships 1-5 days
036 170-7730 Harness (OBSOLETE) Call for price 1 usually ships 1-5 days
037 999-0050 Nut 1/2-13 hex jam plain finish $0.99 1 ships same day
038 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 3 ships same day
039 170-7650 Screw 1/2-13 x 4 1/2 hex head cap $12.31 1 usually ships 1-5 days
040 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 5 ships same day
