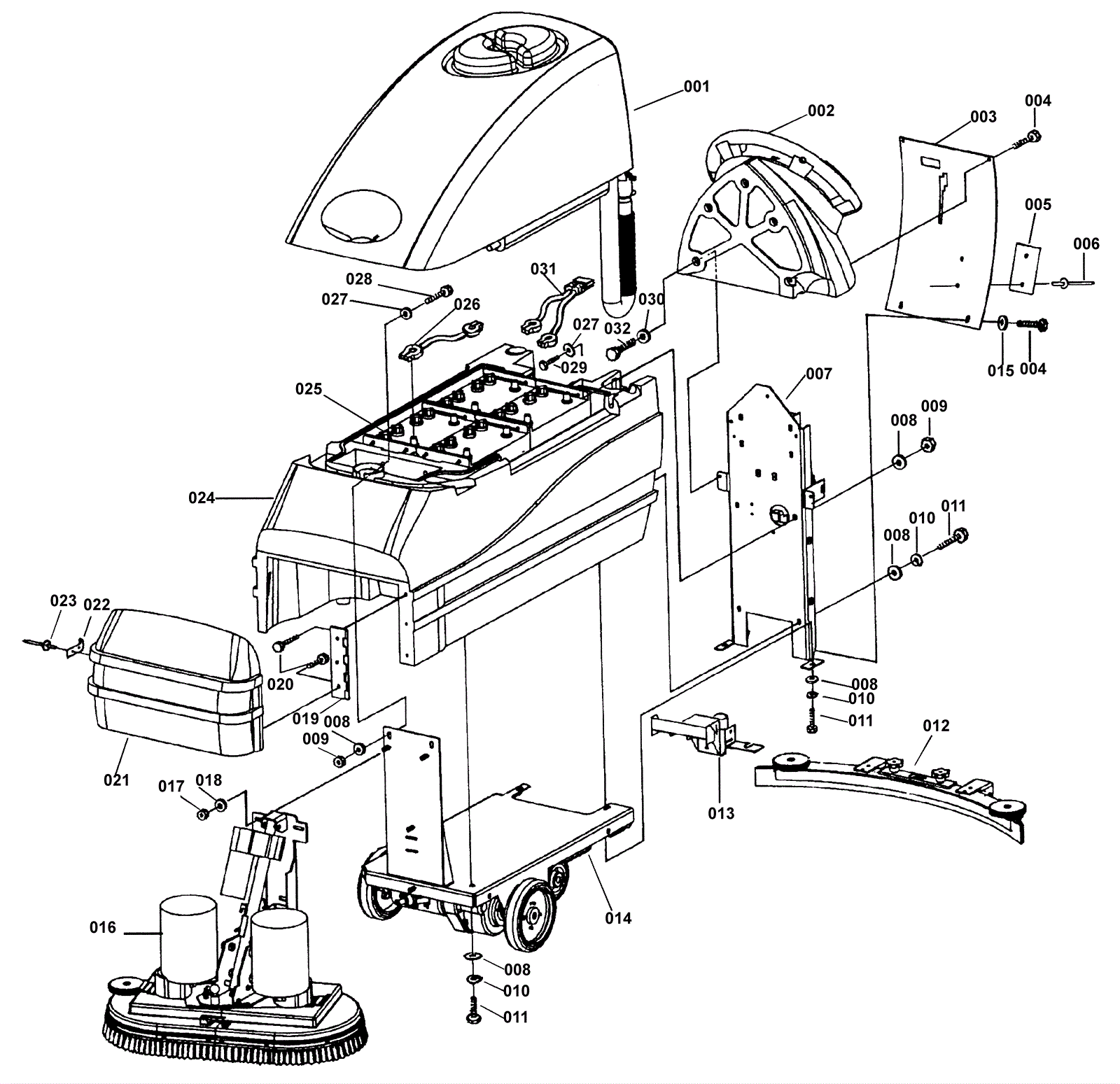

ENCORE L2426 Final Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-1914 Recovery tank (OBSOLETE) $609.18 1 usually ships 1-5 days
002 170-1915 Control panel inchL inch assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
003 170-1892 Rear cover $109.00 1 usually ships 16-41 days
004 999-0849 Screw 10-24 x 1/2 round head slotted nylon $0.99 4 ships same day
005 170-3930 Warning plate (OBSOLETE) $7.81 1 usually ships 16-41 days
006 170-3005 Pop rivet $9.03 2 usually ships 1-5 days
007 170-1893 Rear panel inchL inch assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
008 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 11 ships same day
009 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
010 999-0028 Washer 5/16 split lock plain finish $0.99 7 ships same day
011 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 7 ships same day
012 170-1668 32 inch squeegee assembly $811.94 1 usually ships 16-41 days
013 170-1895 Squeegee lift assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
014 170-1896 Traverse system inchL inch assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
015 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
016 N/A Not available Call for price 1 Brush Head Assembly - See breakdown usually ships 3-26 days
017 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 4 ships same day
018 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
019 170-1898 Hinge $70.95 1 usually ships 1-5 days
020 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 6 ships same day
021 170-1899 Front cover (OBSOLETE) $265.67 1 usually ships 1-5 days
022 209-2377 Latch and strike $42.98 usually ships 16-41 days
023 170-1901 Rivet 5/32 x 9/16 $10.85 2 usually ships 1-5 days
024 170-1902 Solution tank assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
025a N/A Not available Call for price Battery. See literature page 12 for installation usually ships 3-26 days
025b 162-0003 6V 225Ah wet battery (SNSR) $269.50 4 Wet - stud post ships same day
025c 162-0003 6V 225Ah wet battery (SNSR) $269.50 4 Dry - stud post ships same day
025e 162-0005 6V 305Ah wet battery (SNSR) $412.50 4 Dry - UT post ships same day
026a 998-0010 Battery jumper cable - ring type (red) $4.84 3 (For use with top, bolt type post batteries) ships same day
026b 170-1906 Series battery cable (ring style) $46.00 3 Ring style usually ships 16-41 days
026c 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 3 (NON-OEM) usually ships 5-16 days
027 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 4 ships same day
028 170-8229 Screw 5/16-18 x 2 (OBSOLETE) $10.52 2 usually ships 1-5 days
029 170-8230 Screw 5/16-18 x 3 hex $10.52 2 usually ships 1-5 days
030 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
031a 170-1749 Battery cable assembly (OBSOLETE) $246.26 1 Taper style usually ships 16-41 days
031b 170-1907 Battery cable (ring style) $95.66 1 Ring style usually ships 16-41 days
032 170-2128 Screw 1/4 20 x 3/4 $10.52 5 usually ships 1-5 days
N/S 162-5060 24V 20amp battery charger with small SB50 red plug $451.44 1 ships same day
N/S 170-0229 Battery warning decal $16.95 1 usually ships 1-5 days
N/S 170-0230 Falling parts warning decal $16.95 1 usually ships 1-5 days
N/S 170-1708 Brake kit assembly inchL inch (OBSOLETE) $453.88 1 usually ships 1-5 days
N/S 170-1727 Accessory bag (OBSOLETE) $67.76 1 usually ships 1-5 days
N/S 170-1908 Lit kit (OBSOLETE) Call for price 1 usually ships 1-5 days
N/S 170-1911 Battery label (OBSOLETE) $11.00 1 usually ships 1-5 days
N/S 996-0810 Pad driver $213.55 1 ships same day
025d 162-0005 6V 305Ah wet battery (SNSR) $412.50 4 Wet - UT post ships same day
