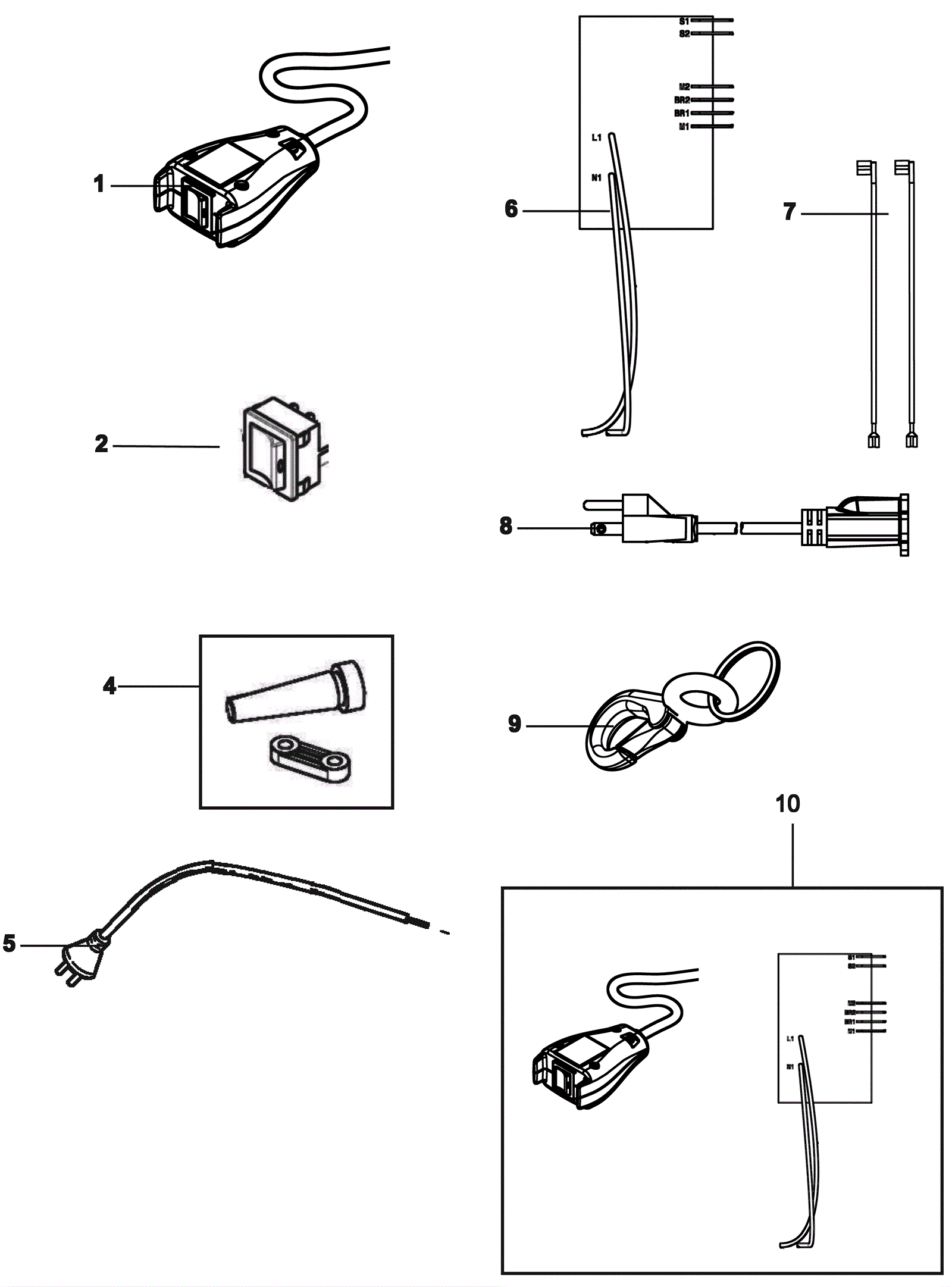

Electrical Assembly

#PartDescription ReqNotesAvailability
1 272-9161 230V PCB cord and switch kit 1
2 272-8571 Switch 1
4 181-0527 Protection sleeve kit (OBSOLETE) 1 (anti strain clip included)
5 272-9163 16/3 pigtail cord 18 inch 1 (1.3 feet)
6 272-9164 120V PCB cord and switch kit 1
7 272-9165 Internal wire kit 1 (2 wires included)
8 272-9166 Extension cord 1 (50 feet)
9 272-9167 Anti-strain snap hook 1
10 272-9164 120V PCB cord and switch kit 1
