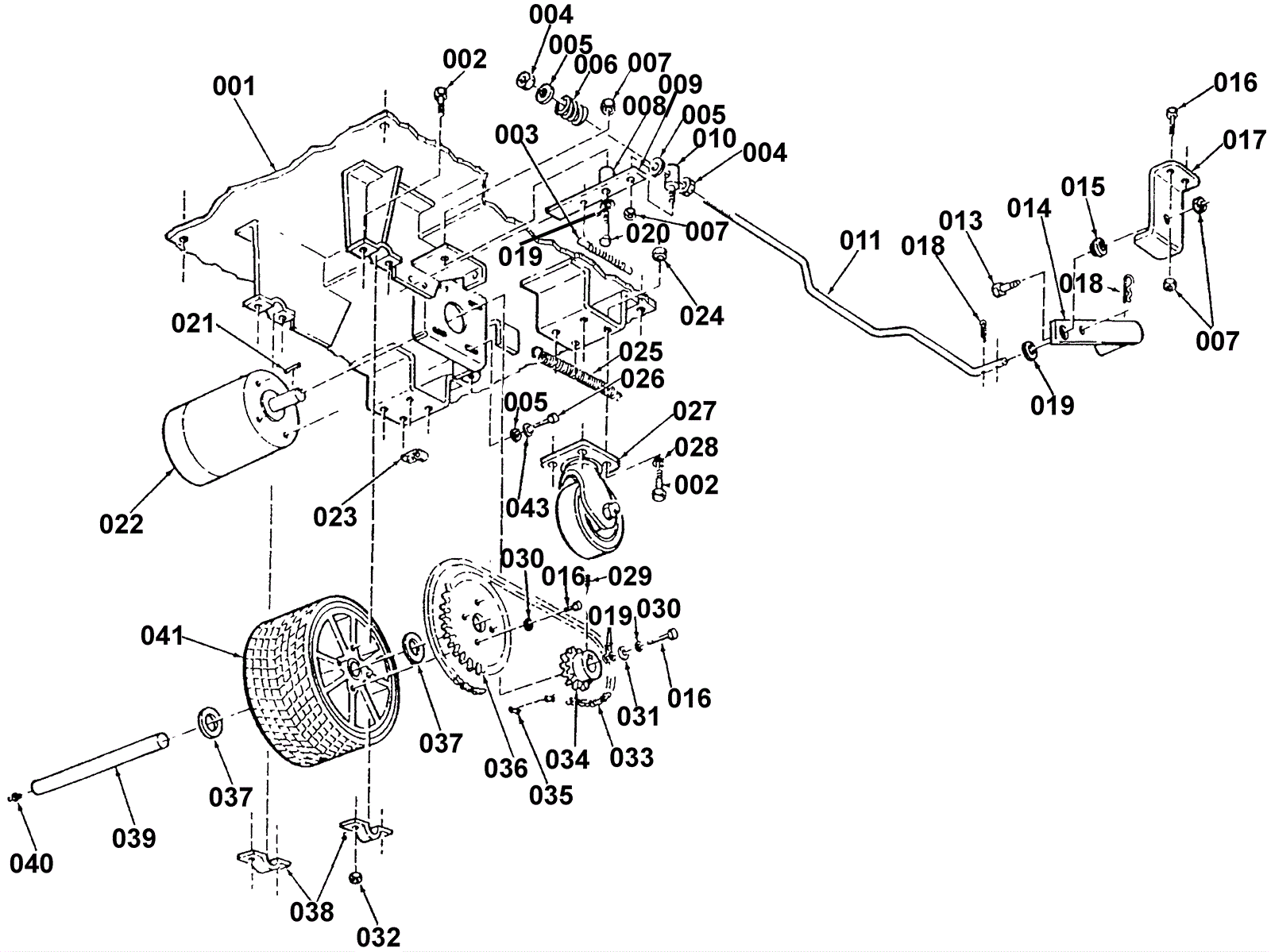

VISION 26 IX Traverse System Assembly

#PartDescriptionPriceReqNotesAvailability
002 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 12 ships same day
003 170-0127 Brake spring $11.69 1 usually ships 1-5 days
004 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
005 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
006 170-0113 Spring (OBSOLETE) $10.56 1 usually ships 16-41 days
007 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 3 ships same day
008 170-0128 Brake arm spacer (OBSOLETE) $6.53 1 usually ships 1-5 days
009 170-0129 Brake arm (OBSOLETE) $31.60 1 usually ships 1-5 days
010 170-2071 Swivel brake rod (OBSOLETE) $8.47 1 usually ships 1-5 days
011 170-0131 Brake rod (OBSOLETE) $62.49 1 usually ships 1-5 days
013 170-3357 Screw 5/16-18x1 1/4 hex head $7.49 1 usually ships 4-15 days
014 170-0132 Brake lever (OBSOLETE) $112.74 1 usually ships 1-5 days
015 170-0133 Brake pedal spacer (OBSOLETE) $38.17 1 usually ships 1-5 days
016 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 5 ships same day
017 170-0134 Brake pedal bracket (OBSOLETE) $20.55 1 usually ships 1-5 days
019 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 3 ships same day
020 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 1 ships same day
021 164-0132 Square keyway 1/4 x 1/4 $4.95 1 usually ships 1-5 days
022 170-0137 Drive motor $954.25 1 usually ships 1-5 days
024 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 12 ships same day
025 170-0139 Squeegee spring swing (OBSOLETE) $42.77 1 usually ships 1-5 days
026 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
027 991-2011 Caster wheel assembly $103.56 2 ships same day
028 999-0659 Washer 3/8 medium split lock stainless steel $0.39 8 ships same day
029 999-0095 Screw 1/4-20 x 3/8 cup point socket set alloy plain finish $0.99 2 ships same day
030 999-0028 Washer 5/16 split lock plain finish $0.99 5 ships same day
031 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 1 ships same day
032 170-0140 Squeegee actuator pin $10.52 1 usually ships 1-5 days
033 991-0101 Chain (sold by the link) $0.55 1 usually ships 4-8 days
034a 170-0141 Drive sprocket (OBSOLETE) $89.69 1 usually ships 16-41 days
034b 991-8554 SPROCKET-DRIVE MOTOR 898550 $25.20 1 usually ships 5-16 days
035 991-0103 Master link $1.87 1 ships same day
036 170-0142 Drive sprocket $350.93 1 usually ships 16-41 days
037 170-0143 Spacer washer (OBSOLETE) $10.56 4 usually ships 16-41 days
038 170-0144 Axle strap (OBSOLETE) $344.95 2 usually ships 1-5 days
039 170-0015 Drive wheel axle shaft (OBSOLETE) $162.31 1 usually ships 16-41 days
040 170-0016 Grease fitting $12.87 1 usually ships 16-41 days
041 N/A Not available Call for price 1 (Drive wheel assembly) usually ships 3-26 days
043 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
