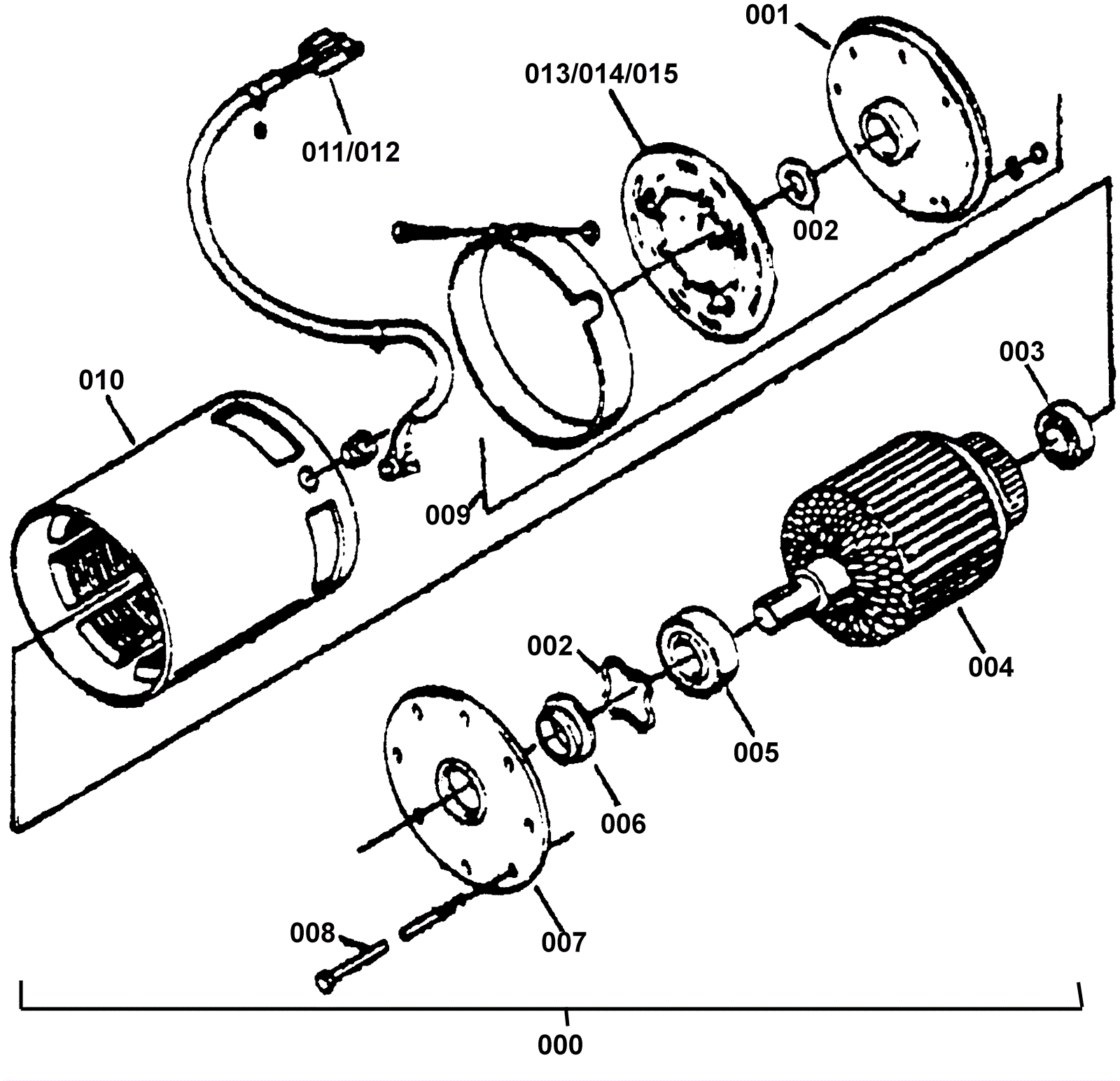

VISION 26 IX Traverse Motor Assembly

#PartDescriptionPriceReqNotesAvailability
000 170-0137 Drive motor $954.25 usually ships 1-5 days
001 170-0378 Commutator bracket (OBSOLETE) $170.24 1 usually ships 1-5 days
002 170-0379 Wave washer $10.56 1 usually ships 16-41 days
003 372-1890 Bearing (rear) $43.41 1 usually ships 16-41 days
004 170-0381 Armature assembly (OBSOLETE) $827.44 1 usually ships 1-5 days
005 170-0321 Front end bearing $21.54 1 ships same day
006 170-0382 Oil seal $19.65 1 usually ships 1-5 days
007 170-0703 Bottom end bracket (OBSOLETE) $196.02 1 usually ships 1-5 days
008 170-0707 Bolt 1/4-20 x 5-3/4 hex head (OBSOLETE) $5.50 2 usually ships 1-5 days
009 N/A Not available Call for price 1 usually ships 3-26 days
010 170-0384 Field assembly (OBSOLETE) $560.62 1 usually ships 1-5 days
011 170-0385 Male terminal housing connector $10.52 usually ships 1-5 days
012 170-0386 Male terminal (OBSOLETE) $7.01 1 usually ships 1-5 days
013 170-0387 Brush holder assembly (OBSOLETE) $329.67 4 usually ships 1-5 days
014 372-1685 Springs $37.49 4 usually ships 4-15 days
015 170-1769 Valve (OBSOLETE) $131.67 1 usually ships 1-5 days
