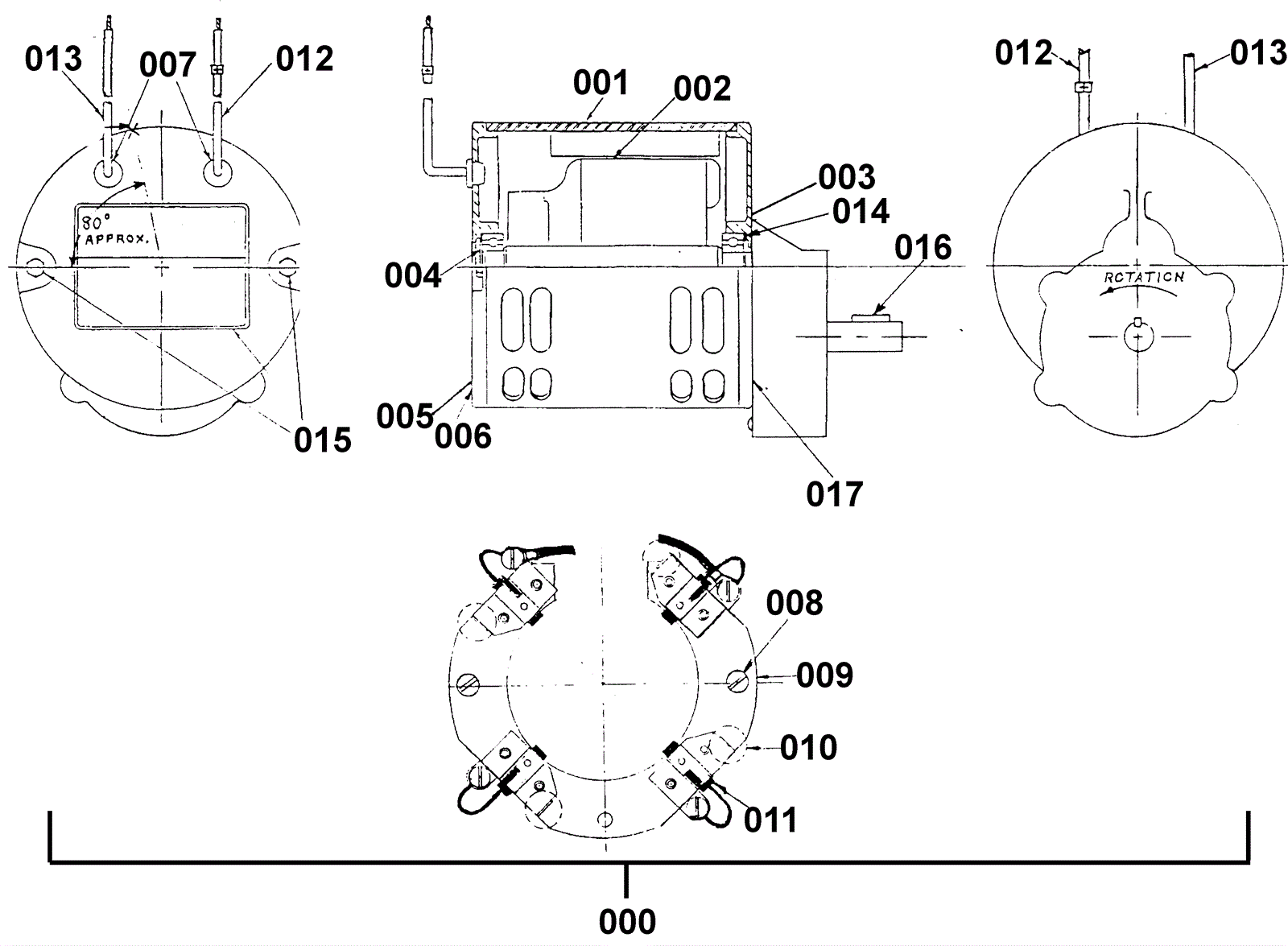

VISION 26 IX Brush Motor Assembly

#PartDescriptionPriceReqNotesAvailability
000a 170-0209 36V brush motor assembly $1,789.15 (OEM) usually ships 1-5 days
000b 991-2122 36V .75HP brush motor assembly with gear box $1,099.40 (NON-OEM) (you will also need to order 999-0130) ships same day
000c 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 2 (for NON-OEM brush motor) ships same day
000d 991-8524 36V 1.0HP brush motor assembly with gear box $1,044.51 (NON-OEM) usually ships 5-16 days
001 170-0316 Stator frame assembly (OBSOLETE) $475.20 1 usually ships 1-5 days
002 170-0318 Armature assembly with BE & FE bearings (OBSOLETE) $1,112.56 1 usually ships 1-5 days
003 170-0320 Bottom bearing $29.27 1 usually ships 4-15 days
004 170-0321 Front end bearing $21.54 1 ships same day
005 N/A Not available Call for price 1 usually ships 3-26 days
006 170-0323 Commutator bracket (OBSOLETE) $64.87 1 usually ships 1-5 days
007 170-0324 Strain relief (OBSOLETE) $1.86 2 usually ships 1-5 days
008 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
009 170-0325 Brush board assembly (OBSOLETE) $237.05 1 usually ships 16-41 days
010 372-1685 Springs $37.49 4 usually ships 4-15 days
011 372-1648 Carbon brush assembly $40.45 4 usually ships 16-41 days
012 170-0328 Positive lead assembly (OBSOLETE) $41.34 1 usually ships 1-5 days
013 170-0329 Negative lead assembly (OBSOLETE) $41.34 1 usually ships 1-5 days
014 170-0330 Washer helical (OBSOLETE) $5.50 1 usually ships 1-5 days
015 164-1157 Bolt 1/4-20 x 7 3/4 thru $4.75 2 usually ships 8-23 days
016 164-0132 Square keyway 1/4 x 1/4 $4.95 1 usually ships 1-5 days
017a 164-0351 Gear box assembly $558.03 1 (OEM) usually ships 1-5 days
017b 991-5115 Gear box assembly $167.61 1 (NON-OEM) (also need to order 017c) usually ships 5-16 days
017c 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 (needed with 017b) ships same day
